Direct insertion of solid wires
Contact opening funticon - for release of already inserted wires
Mounting and wiring position: PCB top side
Machine-compatible "tape-and-reel" packaging
Fixing: Lead-free reflow soldering according to DIN EN 610760-1, section 6
Note 1: Recommended dimensions for solder mask - Recommended thickness of solder 0.15 mm
Note 2: Recommended Pick and Place area
Generel note: It is recommended to make an electrical connection between both poles of each polarity on the solder mask
It is recommended to use our wire release tool 46.141.U801.89
Other packaging units on request

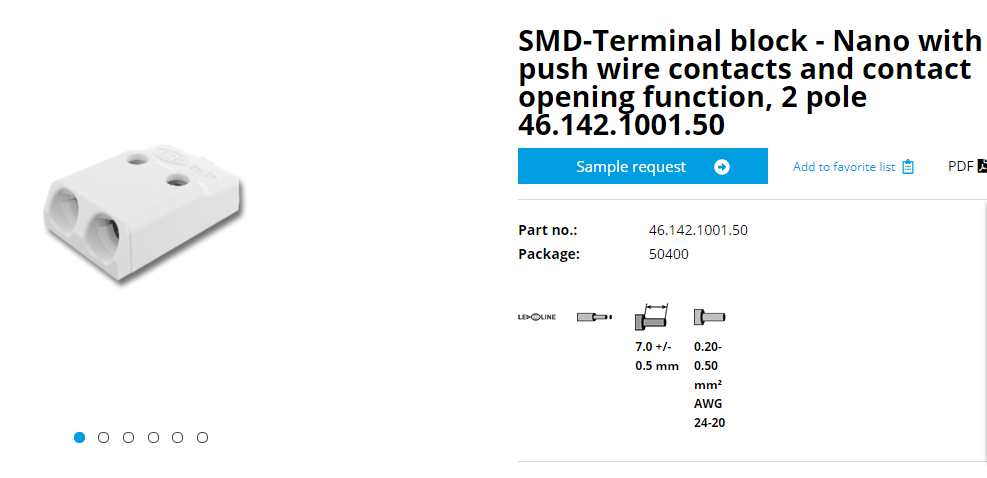

Product name: | SMD-Terminal block - Nano with push wire contacts and contact opening function, 2 pole |
Mounting method 1: | Solder fixing |
Material: | Housing: PPA Contacts: Cu alloy |
ENEC Rating: | 3A / 320V |
Approval: | IEC 60947-1, additional cURus |
cULus file no.: | E-365006 |
Quantity of poles: | 2 |
Weight: | 0,2 |
Pkg.: | 50400 |
