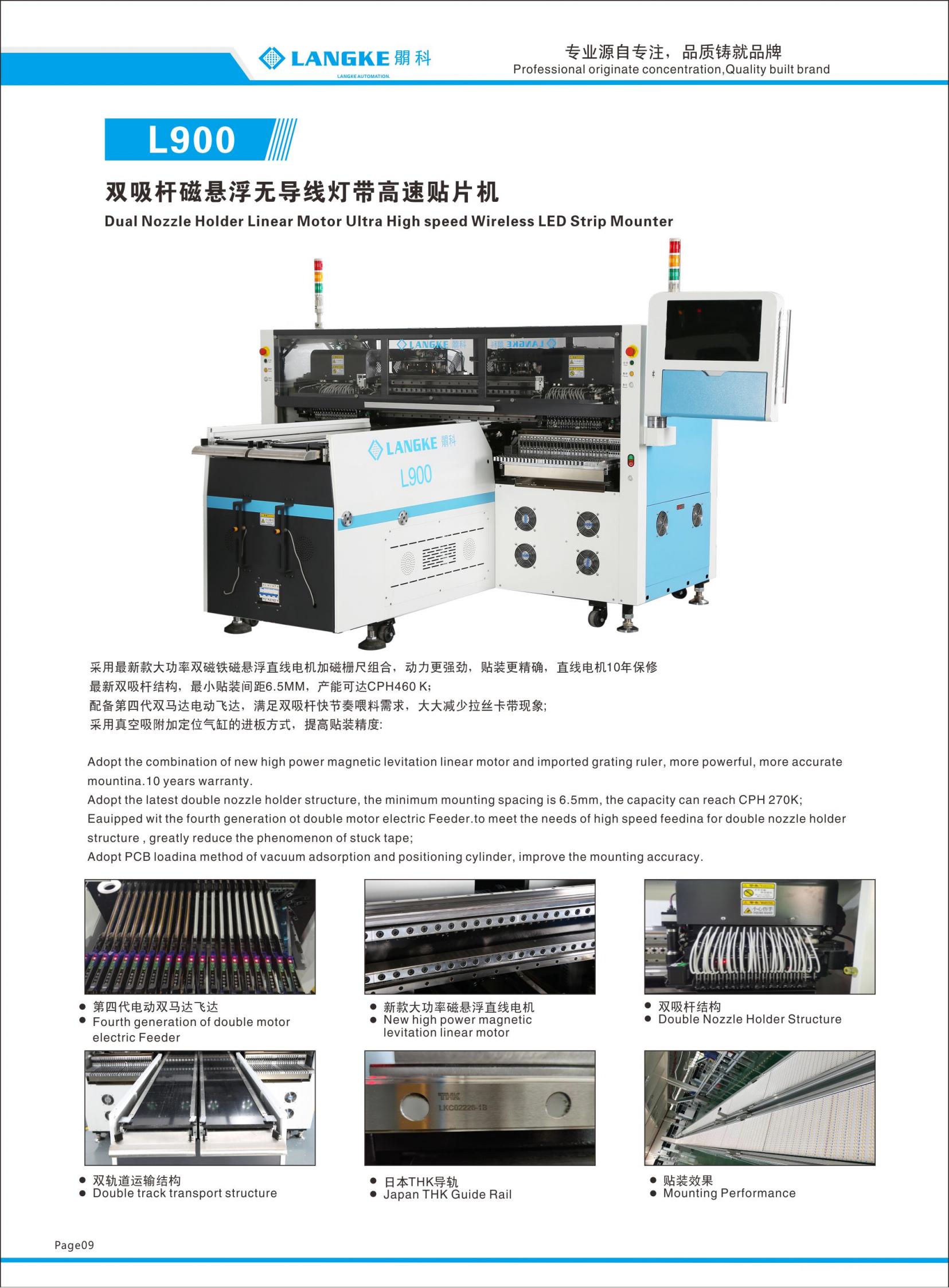

PCB | |

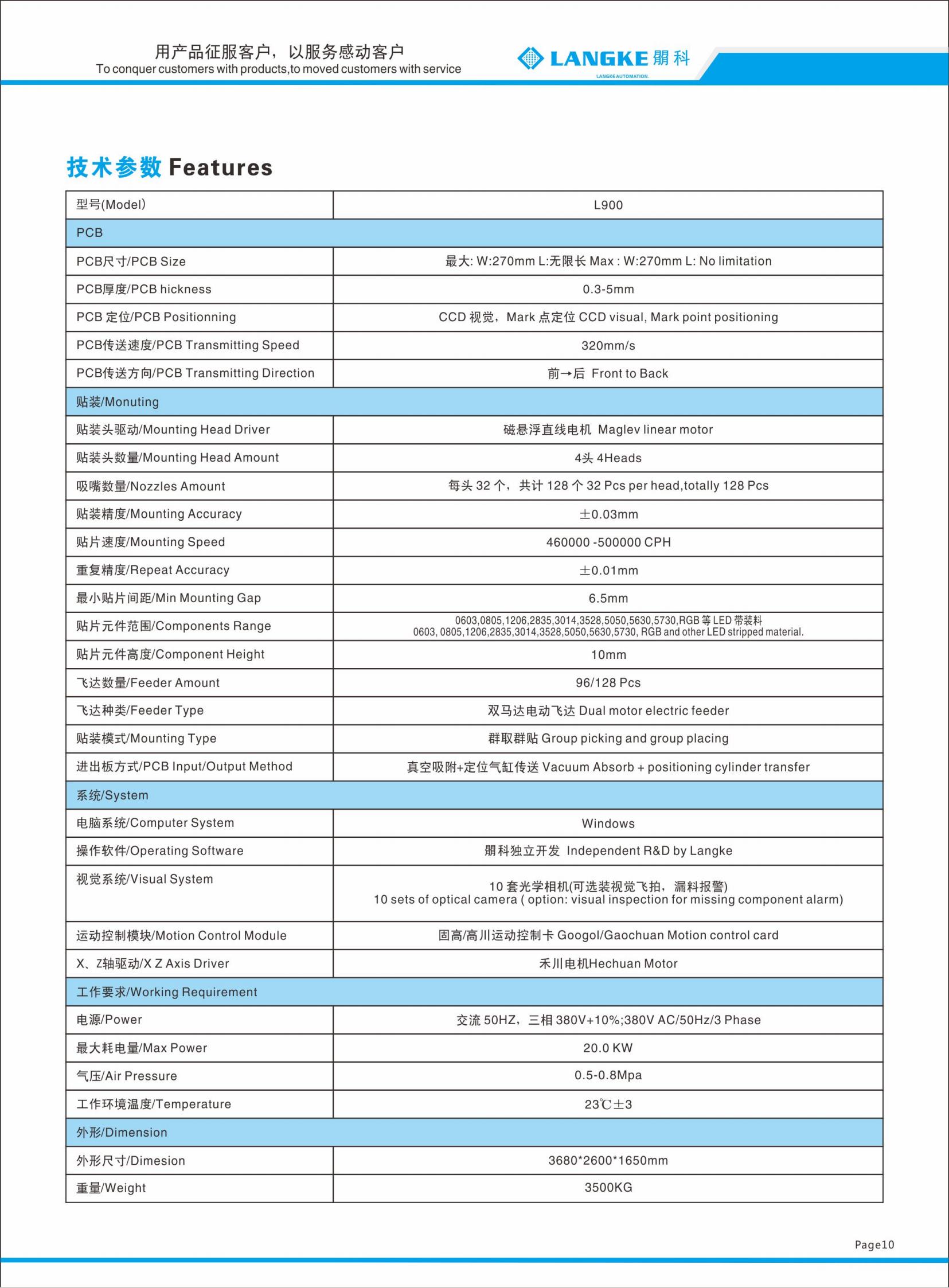

PCB尺寸/PCB Size | 最大:W:270mm L:无限长Max:W:270mm L:No limitation |
PCB厚度/PCB hickness | 0.3-5mm |
PCB 定位/PCB Positionning | CCD 视觉。Mark 点定位CCD visual,Mark point positioning |
PCB传送速度/PCB Transmitting Speed | 320mm/s |
PCB传送方向/PCB TransmittingDirection | 前→后 Front to Back |
贴装/Monuting | |
贴装头驱动/Mounting Head Driver | 磁悬浮直线电机Maglev linear motor |
贴装头数量/Mounting Head Amount | 4头4Heads |
吸嘴数量/Nozzies Amount | 每头32个。共计128个32 Pcs per headtotally 128 Pcs |
贴装精度/Mounting Accuracy | ±0.03mm |
贴片速度/Mounting Speed | 460000-500000CPH |
重复精度/Repeat Accuracy | ±0.01mm |
最小贴片间距/Min Mounting Gap | 6.5mm |
贴片元件范围/Components Range | 0603.0805,1206,2835.3014.3528,5050,5630.5730RGB等 LED带装料 |
0603,0805.1206.2835.3014.3528,5050.5630.5730.RGBand other LED stripped material | |
贴片元件高度/ComponentHeight | 10mm |
飞达数量/Feeder Amount | 96/128 Pcs |
飞达种类/Feeder Type | 双马达电动飞达Dual motor electric feeder |
贴装模式/MountingType | 群取群贴 Group picking and group placing |
进出板方式/PCB Input/Output Method | 真空吸附+定位气缸传送 Vacuum Absorb+positioning cylinder transter |
系统/System | |
电脑系统/Computer System | Windows |
操作软件/Operating Software | 朗科独立开发Independent R&DbyLangke |
视觉系统/Visual System | 10套光学相机(可选装视觉飞拍,漏料报警) |
10 sets of optical camera(option:visual inspection for missing component alarm) | |
运动控制模块/Motion Control Module | 固高/高川运动控制卡Googol/Gaochuan Motion controi card |
X.z轴驱动/XZ Axis Driver | 禾川电机Hechuan Motor |
工作要求/Working Requirement | |
电源/Power | 交流50HZ,三相380V+10%;380VAC/50Hz/3 Phase |
最大耗电量/Max Power | 20.0KW |
气压/Air Pressure | 0.5-0.8Mpa |
工作环境温度/Temperature | 23℃±3 |
外形/Dimension | |
外形尺寸/Dimesion | 36802600*1650mm |
重量/Weight | 3500KG |
