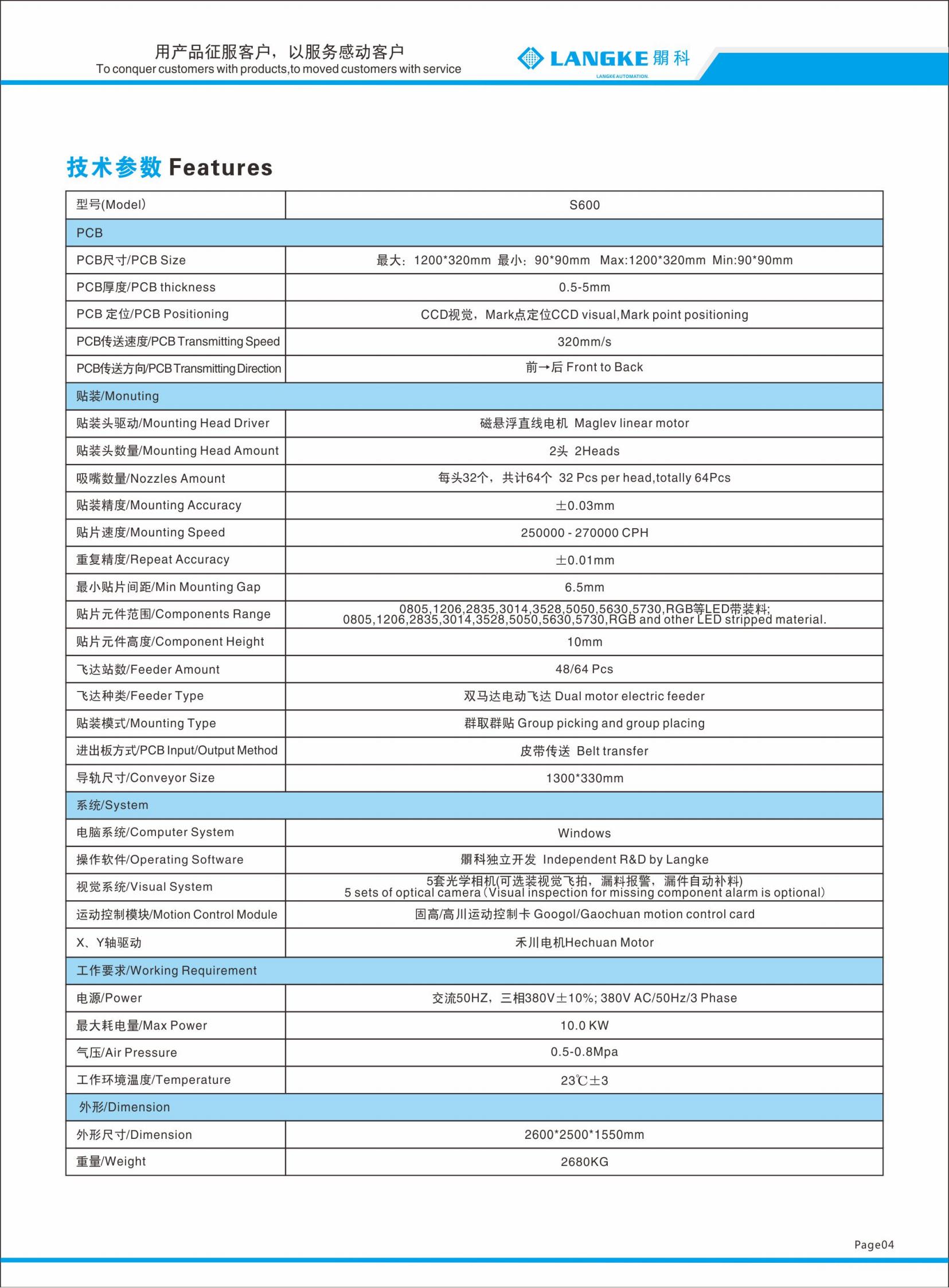

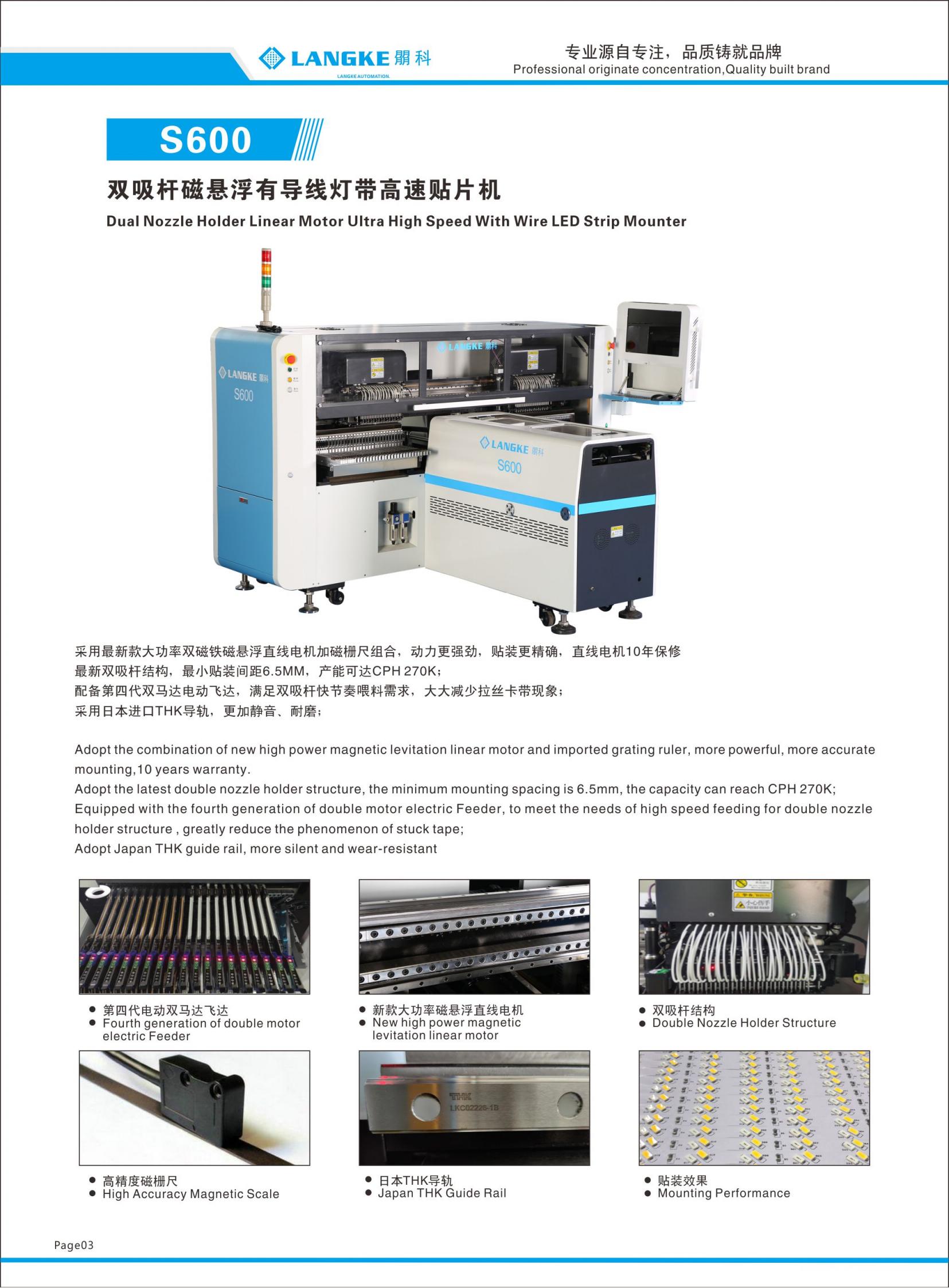

单轨连续板灯带高速贴片机
single lane R-R strip light mounter machine
| PCB | |
| PCB尺寸/PCB Size | 最大:1200320mm 最小:9090mm Max:1200320mm Min:90*90mm |
| PCB厚度/PCB thickness | 0.5-5mm |
| PCB 定位/PCB Positioning | CCD视觉,Mark点定位CCD visual,Mark point positioning |
| PCB传送速度/PCBTransmittingSpeed | 320mm/s |
| PCB传送方向PCBTransmittingDirection | 前一后Front to Back |
| 贴装/Monuting | |
| 贴装头驱动/Mounting Head Driver | 碰悬浮直线电机Maglev linear motor |
| 贴装头数量/Mounting Head Amount | 2头2Heads |
| 吸嘴数量/Nozzies Amount | 每头32个,共计64个 32 Pcs per head,totally 64Pcs |
| 贴装精度/Mounting Accuracy | ±0.03mm |
| 贴片速度/Mounting Speed | 250000-270000CPH |
| 重复精度/Repeat Accuracy | ±0.01mm |
| 最小贴片间距/Min Mounting Gap | 6.5mm |
| 贴片元件范围/Components Range | 08051206.2835.3014.3528.5050,56305730RGB等LED带装料: |
| 0805,1206,2835.3014.35285056.5630.5730.RGB and other lED strpped material. | |
| 贴片元件高度/Component Height | 10mm |
| 飞达站数/Feeder Amount | 48/64 Pcs |
| 飞达种类/Feeder Type | 双马达电动飞达Dual motor electric feeder |
| 贴装模式/Mounting Type | 群取群贴 Group picking and group placing |
| 进出板方式/PCBInput/OutputMethod | 皮带传送 Belt transfer |
| 导轨尺寸/Conveyor Size | 1300*330mm |
| 系统/System | |
| 电脑系统/Computer System | Windows |
| 操作软件/Operating Software | 银科独立开发Independent R&D by Langke |
| 视觉系统/Visual System | 5套光学相机(可选装视觉飞拍,漏料报警,漏件自动补料) |
| 5 sets of optical camera(Visual inspection for missing component alarm is optional) | |
| 运动控制模块/Motion Control Module | 运动控制卡motion controi card |
| X.Y轴驱动 | 禾川电机Hechuan Motor |
| 工作要求/WorkingRequirement | |
| 电源/Power | 交流50HZ,三相380V±10%;380VAC/50Hz/3 Phase |
| 最大耗电量/Max Power | 10.0KW |
| 气压/Air Pressure | 0.5-0.8Mpa |
| 工作环境温度/Temperature | 23℃±3 |
| 外形/Dimension | |
| 外形尺寸/Dimension | 26002500*1550mm |
| 重量/Weight | 2680KG |
| Page04 | |
| 外形尺寸/Dimension | 26002500*1550mm |
| 重量/Weight | 2680KG |
