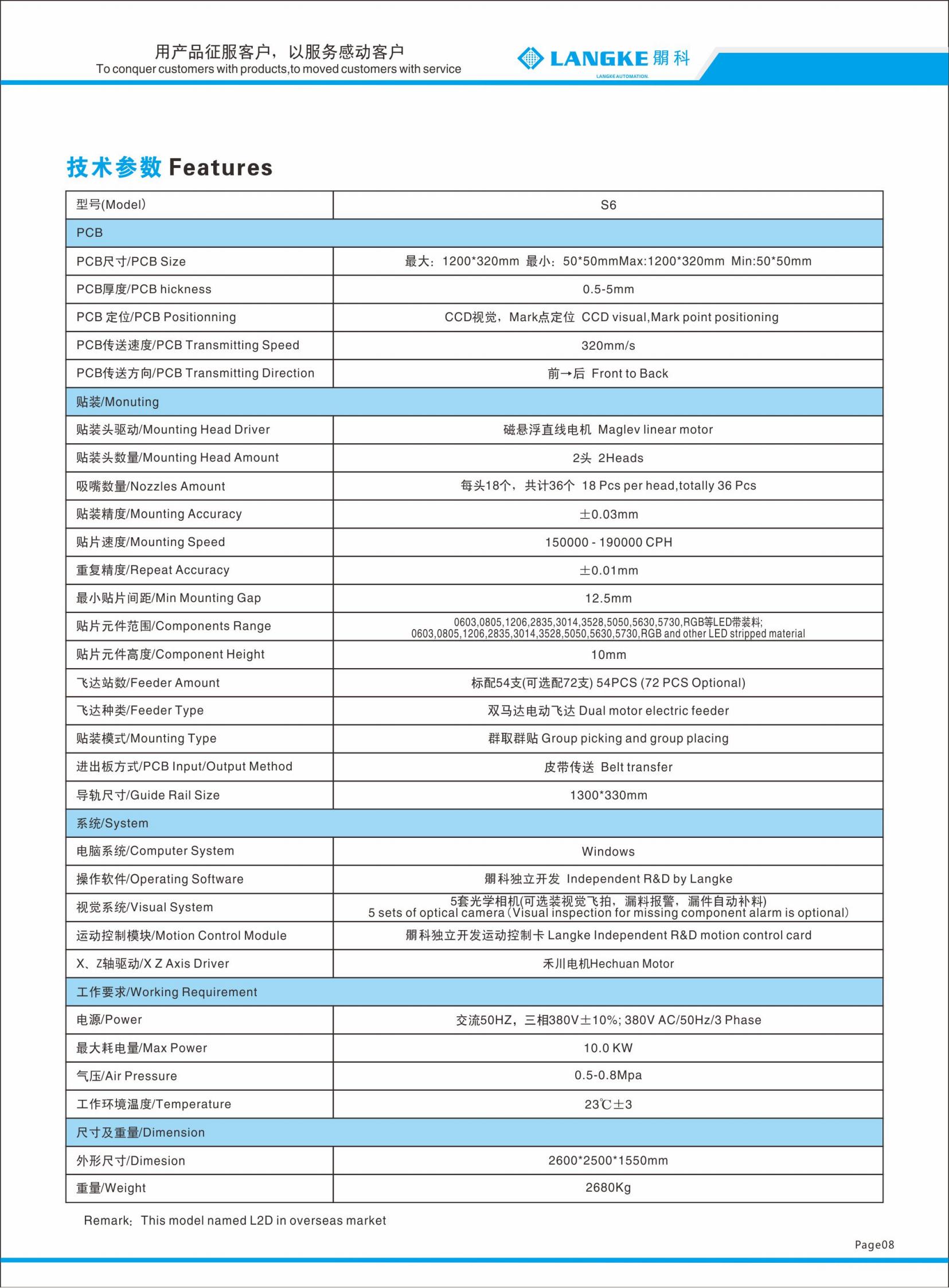

PCB尺寸/PCB Size | 最大:1200320mm最小:5050mmMax:1200320mm Min:50*50mm |
PCB厚度/PCB hickness | 0.5-5mm |
PCB定位/PCB Positionning | CCD视觉。Mark点定位CCD visual,Mark point positioning |
PCB传送速度/PCB Transmitting Speed | 320mm/s |
PCB传送方向/PCB TransmittingDirection | 前→后 Front to Back |
贴装/Monuting | |
贴装头驱动/Mounting Head Driver | 磁悬浮直线电机Maglev linear motor |
贴装头数量/Mounting Head Amount | 2头2Heads |
吸嘴数量/Nozzies Amount | 每头18个,共计36个 18Pcs per headtotally 36 Pcs |
贴装精度/Mounting Accuracy | ±0.03mm |
贴片速度/MountingSpeed | 150000-190000CPH |
重复精度/Repeat Accuracy | ±0.01mm |
最小贴片问距/Min MountingGap | 12.5mm |
贴片元件范围/Components Range | 06030805.1206.2835.3014.3528.5050.5630.5730.GBSLED带装 |
0603.0805.1206.2835.3014.3528.5050.5630.5730.G8and other LED stripped materai | |
贴片元件高度/Component Height | 10mm |
飞达站数/Feeder Amount | 标配54支(可造配72支)54PCS(72PCS Optional) |
飞达种类/Feeder Type | 双马达电动飞达Dual motor electric feeder |
贴装模式/MountingType | 群取群贴 Group picking and group placing |
进出板方式/PCBinput/Output Method | 皮带传送 Belt transter |
导轨尺寸/Guide Rail Size | 1300*330mm |
系统/System | |
电脑系统/Computer System | Windows |
操作软件/Operating Software | 朗科独立开发 Independent R&D by Langke |
视觉系统/Visual System | 5套光学相机(可选装视觉飞拍,漏料报警,漏件自动补料) |
5 sets of optical camera(Visual inspection for missing component alarm is optional) | |
运动控制模块/Motion Control Module | 朗科独立开发运动控制卡Langke Independent R&Dmotion control card |
X.Z轴驱动/XZ Axis Driver | 禾川电机Hechuan Motor |
工作要求/Working Requirement | |
电源/Power | 交流50HZ,三相380V±10%;380VAC/50Hz/3 Phase |
最大耗电量/Max Power | 10.0 KW |
气压/Air Pressure | 0.5-0.8Mpa |
工作环境温度/Temperature | 23℃±3 |
尺寸及重量/Dimension | |
外形尺寸/Dimesion | 260025001550mm |
重量/Weight | 2680Kg |
