型号/Model

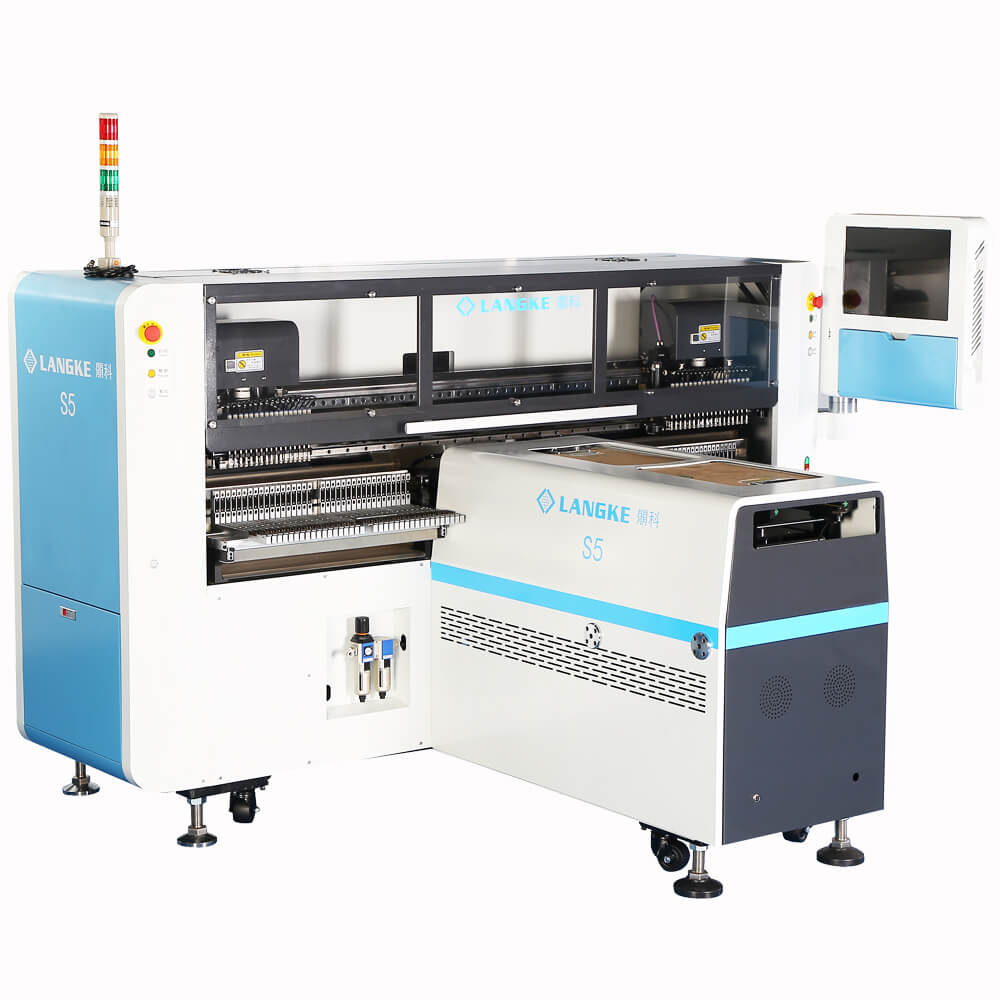

S5

状态

PCB

PCB尺寸/PCB Size

最大：1200*320mm, 最小：50*50mm
Max: 1200*320mm, Min: 50*50mm

PCB厚度/PCB thickness

0.5-5mm

PCB 定位/PCB Positioning

CCD视觉，Mark点定位
CCD visual, Mark point positioning

PCB传送速度/PCB Transmitting Speed

320mm/s

PCB传送方向/

PCB Transmitting Direction

前→后  Front to Back

贴装/Mounting

贴装头驱动/Mounting Head Driver

磁悬浮直线电机  Maglev linear motor

贴装头数量/Mounting Head Amount

2头  2Heads

吸嘴数量/Nozzles Amount

每头18个，共计36个  18 Pcs per head, totally 36 Pcs

贴装精度/Mounting Accuracy

±0.03mm

贴片速度/Mounting Speed

150000 - 190000 CPH

重复精度/Repeat Accuracy

±0.01mm

最小贴片间距/Min Mounting Gap

12.5mm

贴片元件范围/Components Range

0603,0805,1206,2835,3014,3528,5050,5630,5730,RGB等LED带装料;
0603,0805,1206,2835,3014,3528,5050,5630,5730, RGB and other LED stripped material.

贴片元件高度/Component Height

10mm

飞达数量/Feeder Amount

54/72 Pcs

飞达种类/Feeder Type

双马达电动飞达 Dual motor electric feeder

贴装模式/Mounting Type

群取群贴 Group picking and group placing

进出板方式/PCB Input/Output Method

皮带传送  belt transfer

导轨尺寸 Rail size

1300*330mm

系统/System

电脑系统/Computer System

Windows

操作软件/Operating Software

朤科独立开发  Independent R&D by Langke

视觉系统/Visual System

5套光学相机(可选装视觉飞拍，漏料报警)

5 sets of optical camera（option: visual inspection for missing component alarm）

运动控制模块/Motion Control Module

朤科独立开发运动控制卡 Langke Independent R&D Motion control card

X、Y轴驱动

日本富士电机 Japanese Fuji Servo Motor

工作要求/Working Requirement

电源/Power

交流50HZ，三相380V±10%; 380V AC/50Hz/3 Phase

最大耗电量/Max Power

5.0 KW

气压/Air Pressure

0.5-0.8Mpa

工作环境温度/Temperature

23℃±3

外形/Dimension

外形尺寸/Dimension

2580*2500*1550mm

重量/Weight

2190KG
