• Power: 10W

• Voltage: 220-240VAC

• Beam angle: 40°

• CRI: 80

• Cutout: 70mm

• Dimensions: 86x60mm

• IP65 fascia

• Lumen: 650-750lm

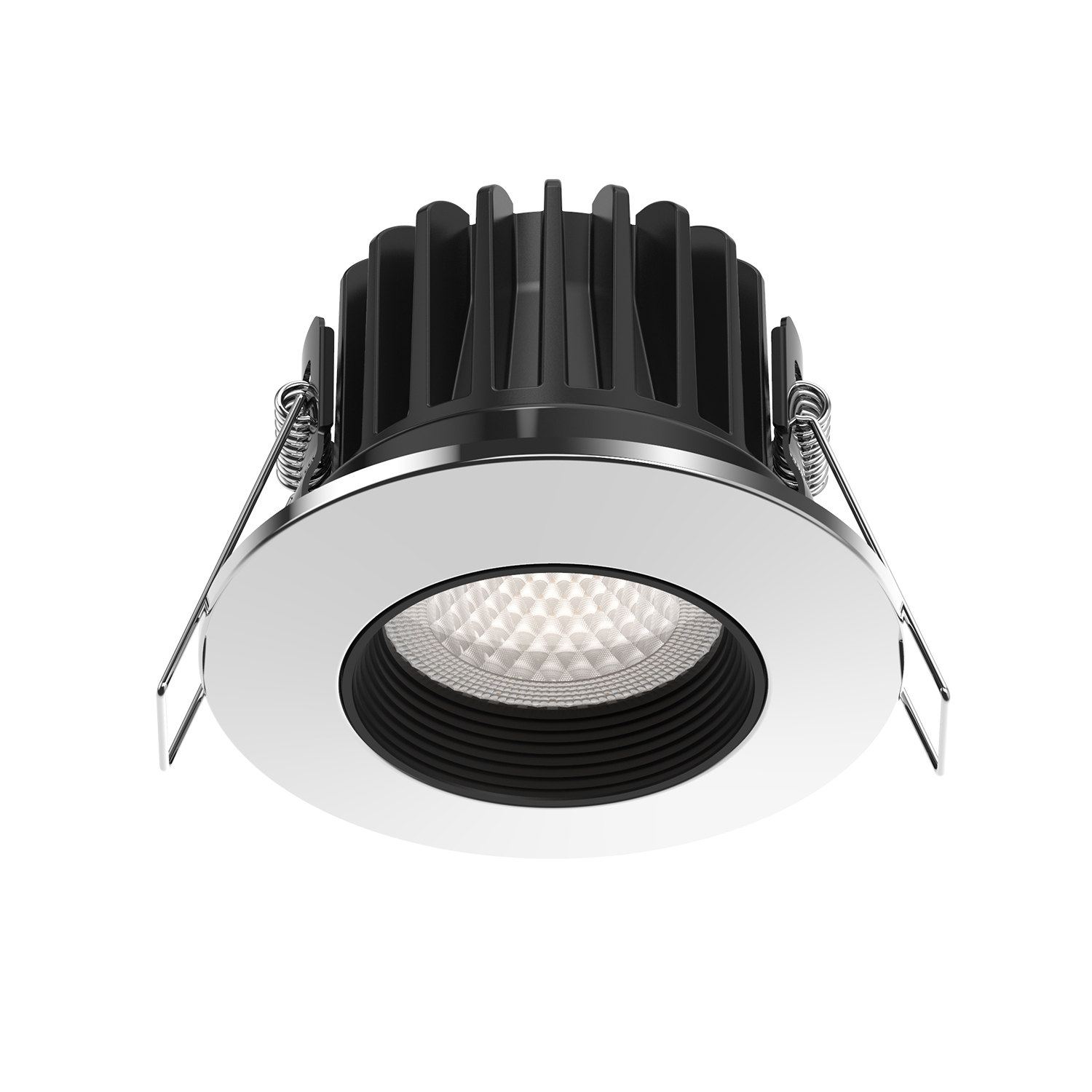

• LED dimmable fire-rated downlight for domestic applications

• 3 color temperature switchable under the magnetic bezel 3000K, 4000K      or 6000K colour temperature options

• Uniquely designed to minimize the light glare (UGR<19)

• Available in fixed and tilt version

• Dimmable with most leading edge and trailing edge dimmers

• Chip-On-Board (COB) for superb light output with 850 plus      lumens, high efficacy and long life

• Interchangeable magnetic bezels available in different color finishes      – White / Brushed Steel / Chrome / Brass / Black

• Unique heat-sink design for excellent heat dissipation

• Tool-less and quick to install due to the push fit screwless terminal      block – Loop in &Loop out

• 40° beam angle for improved distribution of light

• Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of      Building Regulations

• IP65 rated fascia suitable for bathroom and wet rooms

• Wide flange with short narrow main body which covers      existing cut-outs so great for retro-fit and is ideal for shallow ceiling      voids

电量:10 w

电压:220 - 240 vac

波束角度：40°

中国国际广播电台:80

截止:70毫米

尺寸:86 x60mm

IP65筋膜

腔:650 - 750 - lm

家用可调光的防火筒灯

3 .色温可在磁性表圈下切换3000K、4000K或6000K色温选项

独特设计，最大限度减少眩光（UGR<19）

可提供固定和倾斜版本

可调光与大多数前缘和后缘调光

片上芯片（COB）具有850流明以上的超强光输出，高效率和长寿命

可互换的磁性边框可在不同的颜色完成-白色/拉丝钢/铬/黄铜/黑色

独特的散热设计，散热效果极佳

免工具和快速安装，由于推配合无螺丝端子座-循环进出

40°光束角，改善光的分布

全面测试30,60和90分钟吊顶类型，以满足建筑法规B部分

防护等级为IP65，适用于浴室和湿室

宽法兰，短窄主体，覆盖现有的切口，非常适合改装，是浅天花板空隙的理想选择
