技术数据

Technical Datasheet

产品特点

FEATURES

1.The lamp is parallel to the ground without elevation Angle, and the luminous face faces the ground,it reduces light pollution and helps the lighting design to meet UNI 10819 and other standards.

灯具与地面平行，无仰角，发光面朝向地面，减少光污染，有助于灯具设计符合UNI 10819等标准。

2.Optical reflector with temperatured glassed , higher light efficacy and more safty.

光学反射镜采用温控玻璃，光效更高，更安全。

3.Sealing strip made of anti-UV silicone rubber.

密封条采用抗紫外线硅橡胶制成。

4.5050 Samsung SMT LED chip with Zener diode to get longer life and lower defective rate.

5050三星SMT LED芯片采用齐纳二极管，使用寿命更长，次品率更低。

5.High thermal conductivity aluminum PCB can reduce the speed of light decay of the LED CHIPS.

导热系数高的铝PCB可以降低LED芯片的光衰减速度。

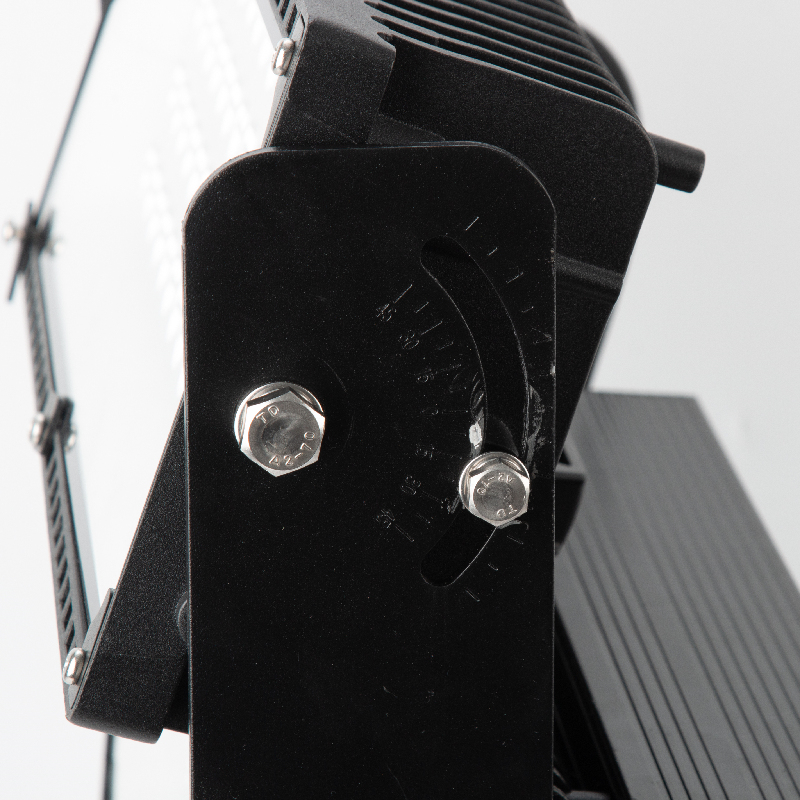

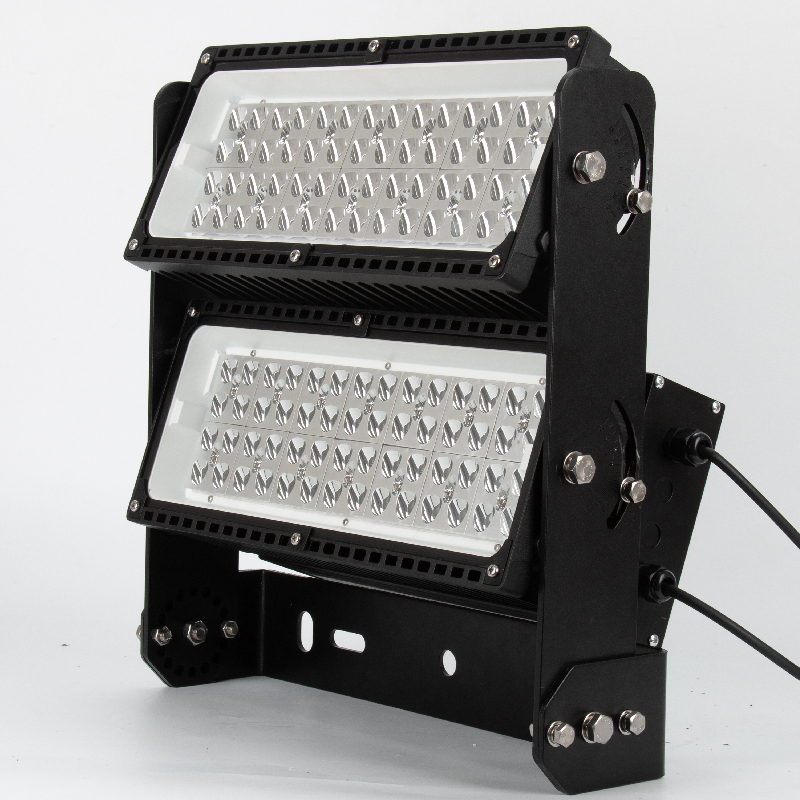

6.The Angle of each module can be adjusted separately, making it easier for adjusting the light distribution.

每个模块的角度可以单独调节，更容易调整光的分布。

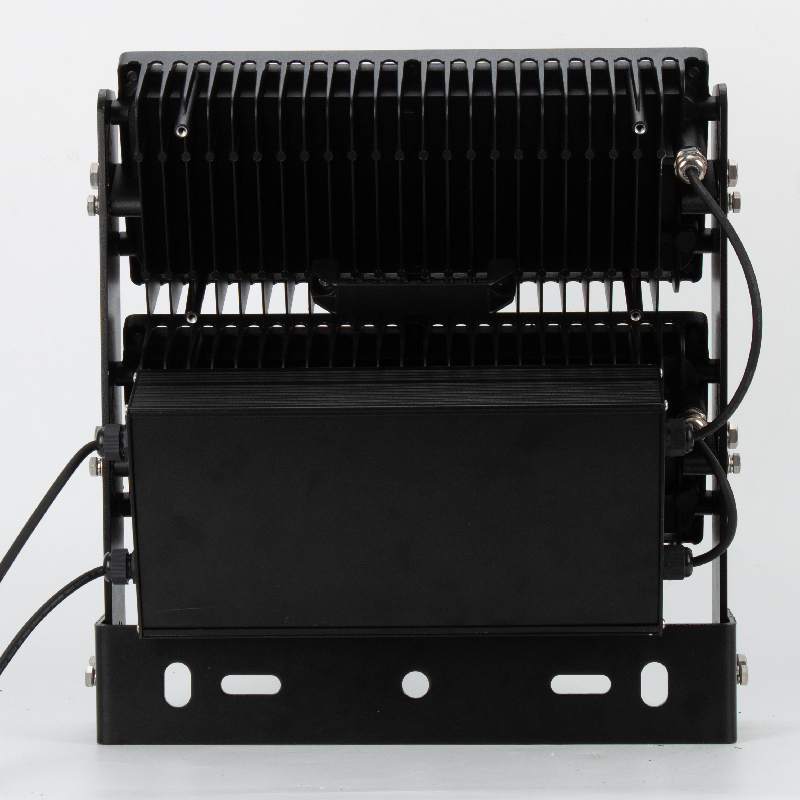

7.ADC12 die-casting heatsink, the heat dissipation efficiency is more than 96W/M.K.

ADC12压铸型散热器，散热效率大于96W/M.K.

8.The air inside of the lens will cause the siphoning phenomenon if the air volume shrinkage because of the cooling after the lamp is closed, and the moisture inhalation will damage the LED chips or shorten the lifespan of the LED chips.This waterproof breathing valve will help air enter into the lens without moisture.

如果闭灯后风量冷却收缩，镜片内的空气会造成虹吸现象，而吸入的水分会损坏LED芯片或缩短LED芯片的寿命。这个防水呼吸阀可以帮助空气进入镜片而不产生水分。

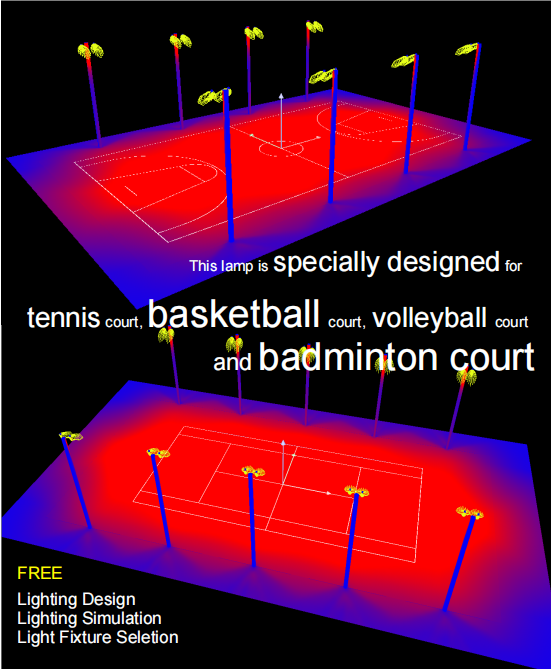

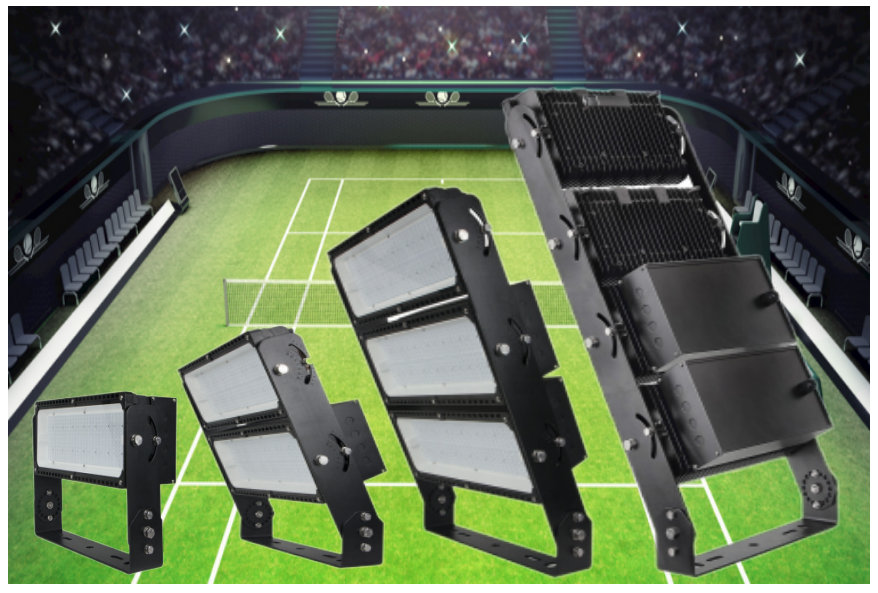

9.Lower UGR design reflector casts the light on the court from the sidelines, let player will ignores the light.

较低的地面反光设计将光线从场边投射到球场上，让球员将光线忽略。

10.Stronger support is safer and more stable.

支持越强，越安全稳定。

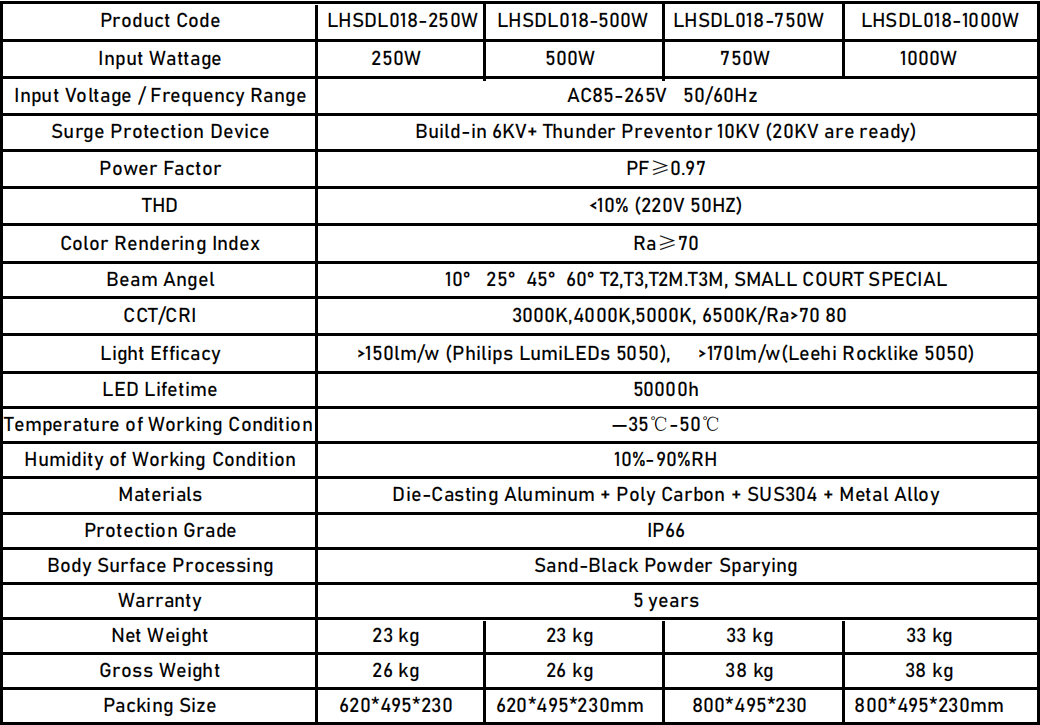

性能规范

SPECIFICATIONS

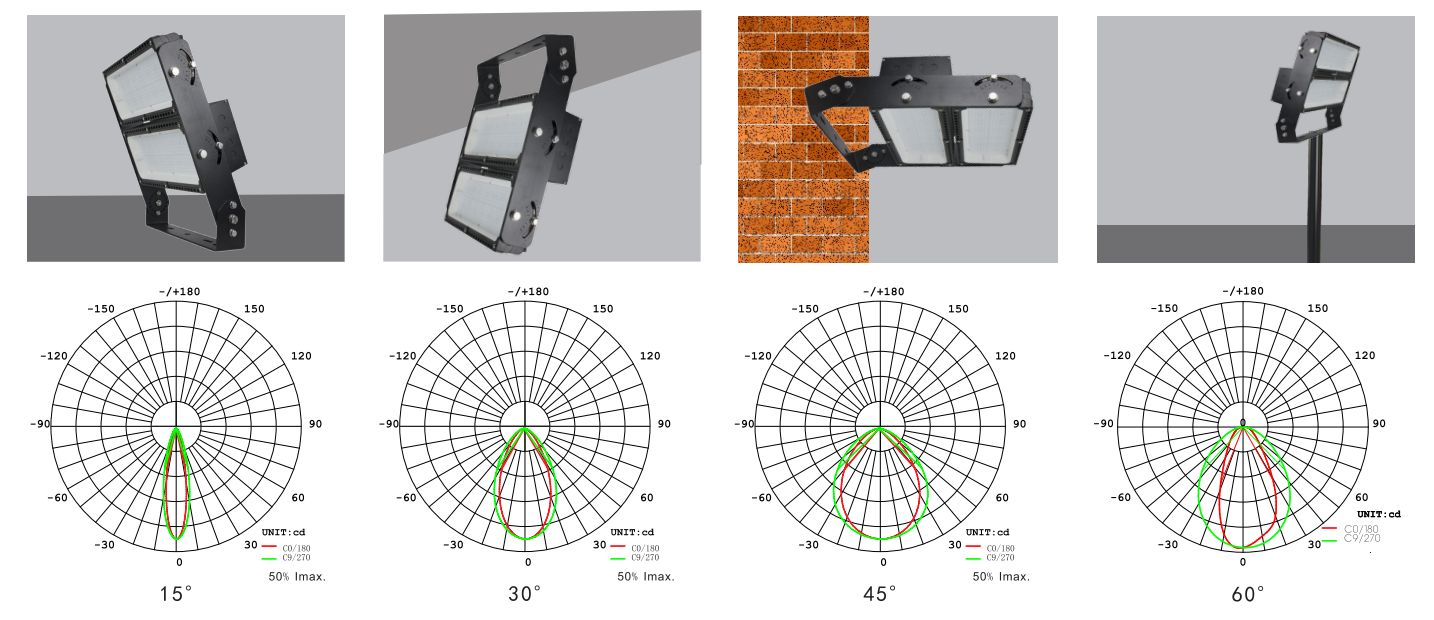

安装方式

INSTALLATION WAYS
