技术数据

Technical Datasheet

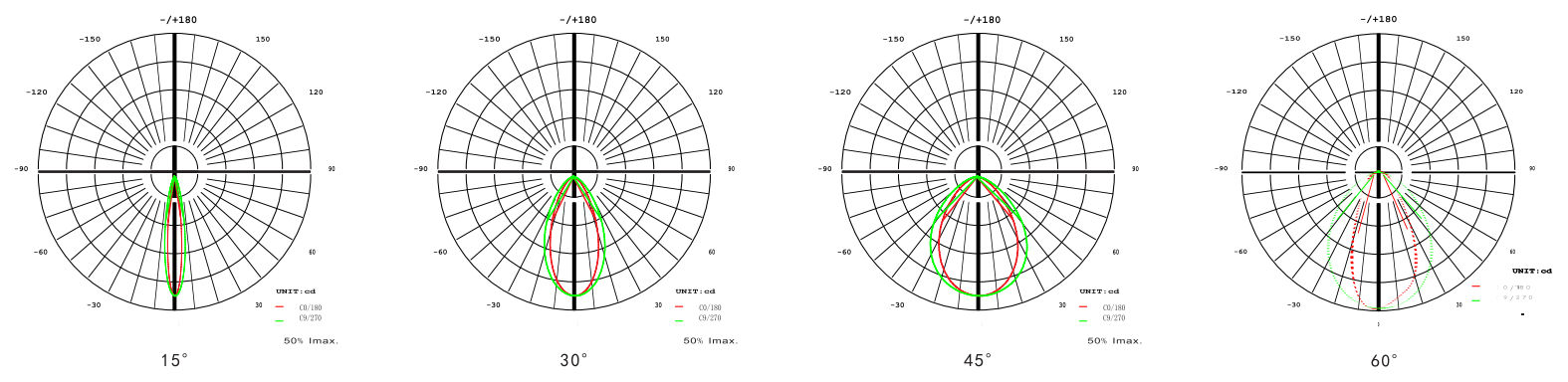

光学参数

OPTICAL PARAMETERS

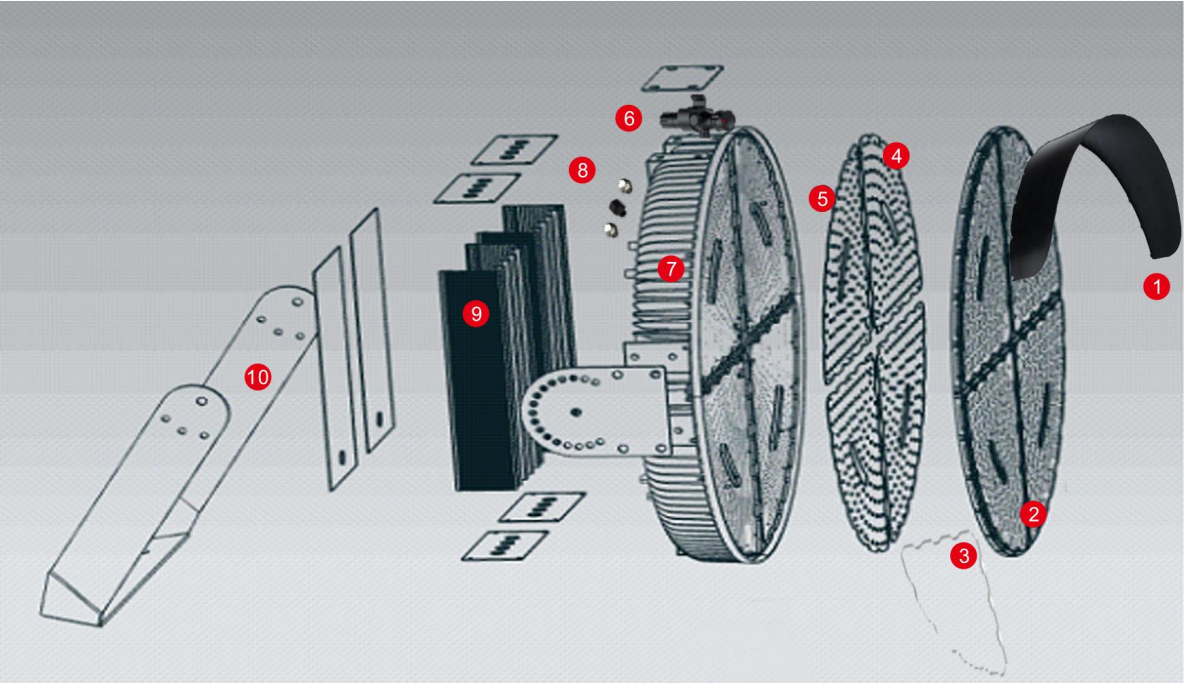

产品特点

FEATURES

1.The specially designed hood reduces light pollution and helps the lighting design to meet UNI 10819and other standards.

特别设计的遮光罩，减少光污染，帮助照明设计符合UNI 10819和其他标准。

2.Optical lens made by German Poly Carbon, not easy to age and turn yellow.

德国聚碳制造的光学镜片，不易老化，不易变黄。

3.Sealing strip made of anti-UV silicone rubber.

密封条采用抗紫外线硅橡胶制成。

4.3030/5050 SMT LED chip to get different light efficacy.

3030/5050 SMT LED芯片可获得不同的光效。

5.High thermal conductivity aluminum PCB can reduce the speed of light decay of the LED CHIPS.

导热系数高的铝PCB可以降低LED芯片的光衰减速度。

6.Laser positioner (optional) to assist in adjusting the light.

激光定位器(可选)，以协助调整光线。

7.ADC12 die-casting heatsink, the heat dissipation efficiency is more than 96W/M.K.

ADC12压铸型散热器，散热效率大于96W/M.K.

8.The air inside of the lens will cause the siphoning phenomenon if the air volume shrinkage because of the cooling after the lamp is closed, and the moisture inhalation will damage the LED chips or shorten the lifespan of the LED chips. This waterproof breathing valve will help air enter into the lens without moisture.

如果闭灯后风量冷却收缩，镜片内的空气会造成虹吸现象，而吸入的水分会损坏LED芯片或缩短LED芯片的寿命。这个防水呼吸阀可以帮助空气进入镜片而不产生水分。

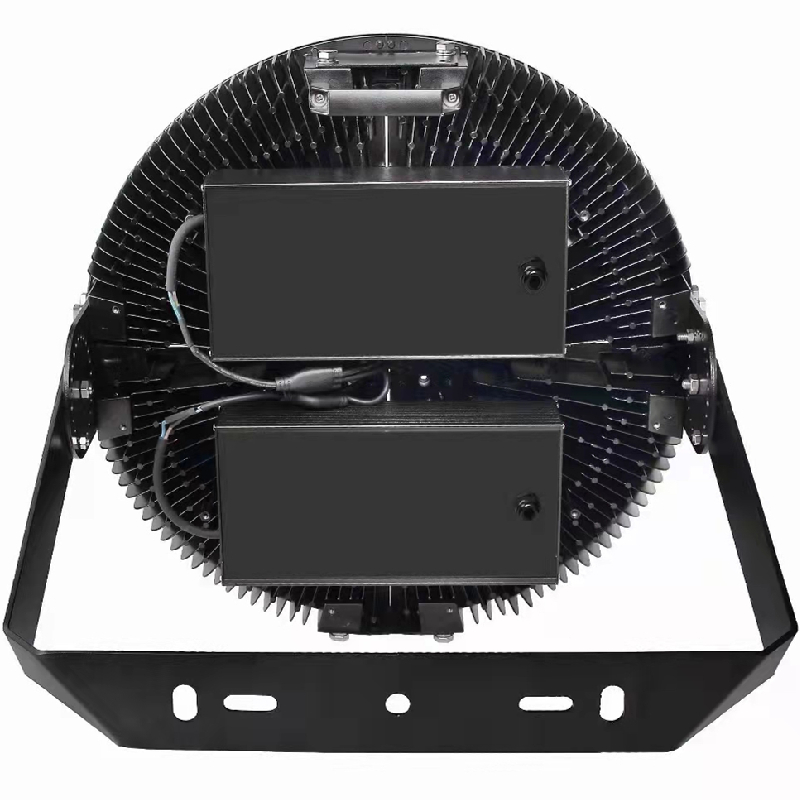

9.External power housing, faster heat dissipation and effective protection of the power supply.

外接电源外壳，散热更快，有效保护电源。

10.Stronger support is safer and more stable.

支持越强，越安全稳定。

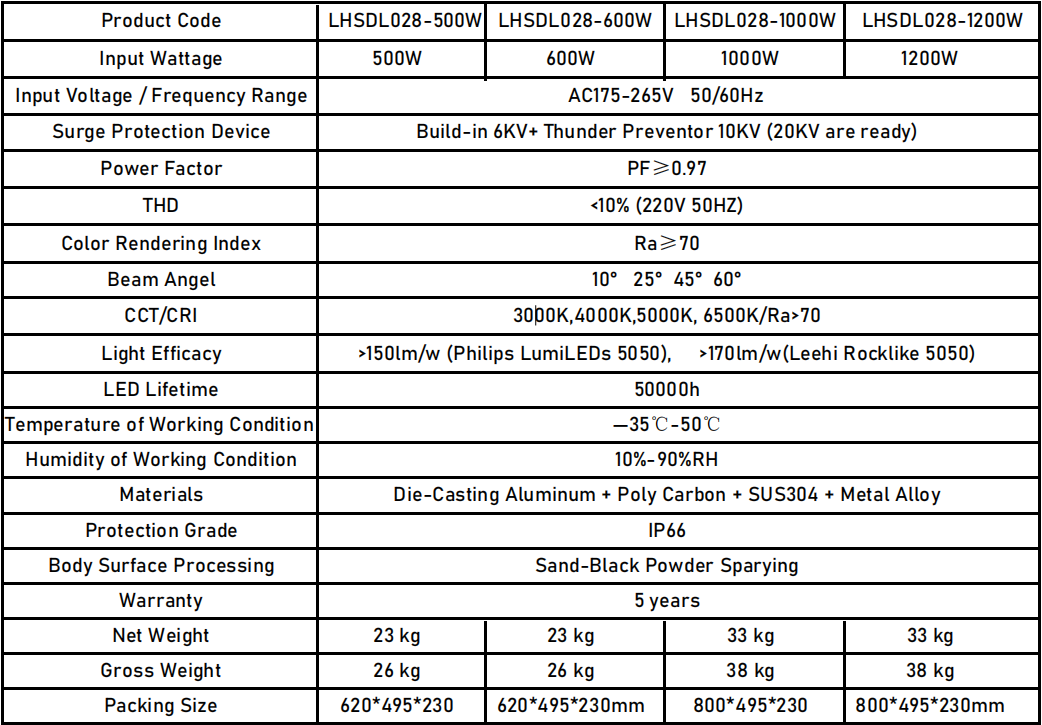

性能规范

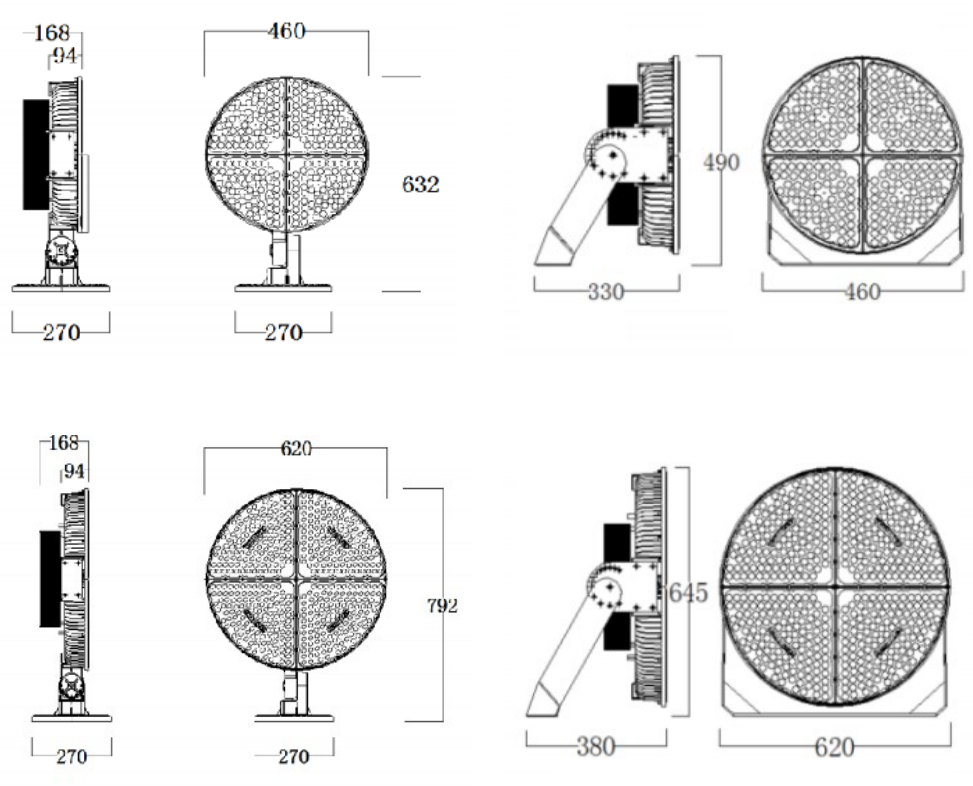

SPECIFICATIONS

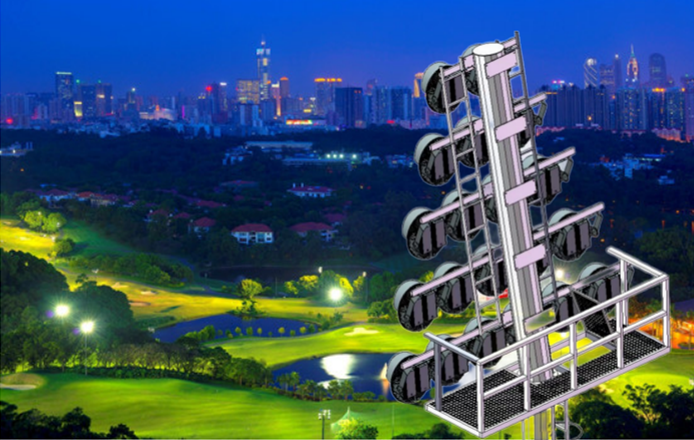

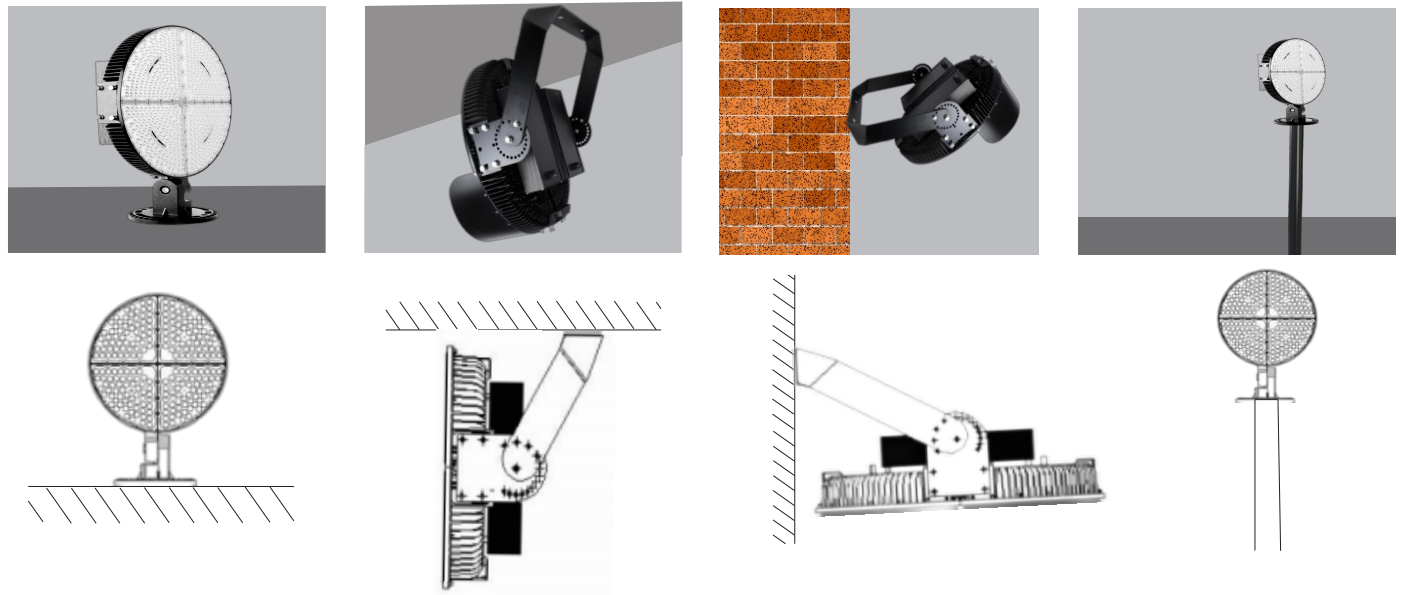

安装方式

INSTALLATION WAYS

★ Integrated Die Casting Heat Sink：Excellent Thermal Management & Compact Structure.

  一体式压铸散热器:优良的热管理和紧凑的结构。

★ Die-Casting Aluminum Arm & Bracket：Anti-Typhoon 17 & High Corrosion Resistance For Coastal Area.

  压铸铝臂和支架:抗台风17和高耐腐蚀沿海地区。

★ Module Gap Design：Reduces Wind Resistance Area and Increases heat dissipation performance.

  模块间隙设计:减小风阻面积，提高散热性能。

★ Integrated Breather Valve：Balances The Internal & External Temperature and Humidity.

  集成呼吸阀:平衡内部和外部温度和湿度。

★ High Strength Polycarbonate Lens, Realize in lK10, Optical Lighting Distribution：10°/25°/45°/60°/90°

  高强度聚碳酸酯透镜，实现IK10，光学照明分布:10°/25°/45°/60°/90°

★ Spill Shield：Reduces Light Pollution.

  泄漏防护盾:减少光污染。

★ Handle Bar：Easy For Installation & Carry.

  把手:便于安装和携带。

★ Double Surge Protection：Driver & Extra 10KV SPD.

  双防雷:驱动器和额外的10KV防雷器。

★ Lumileds/OSRAM LED Chip & MW/Sosen Driver, Up to 150lm/W.

  Lumileds/OSRAM LED芯片和MW/Sosen驱动，高达150lm/W。

★ Racked Angle：Allows For Precise Installation.

  倾斜角度:可精确安装。
