技术数据

Technical Datasheet

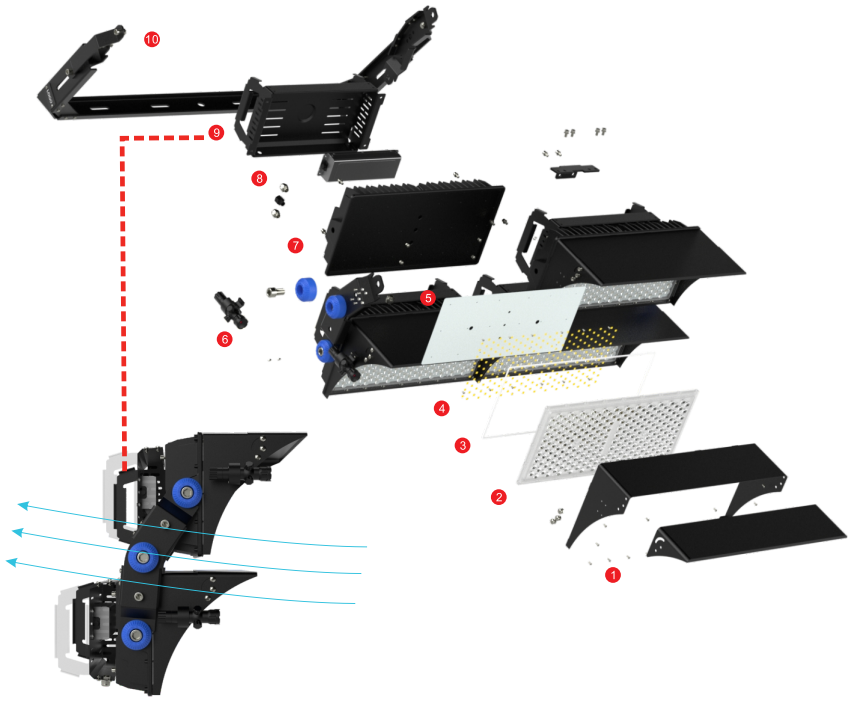

产品特点

FEATURES

1.The specially designed hood reduces light pollution and helps the lighting design to meet UNI 10819 and other standards.

特殊设计的遮光罩，减少光污染，使照明设计达到UNI 10819等标准。

2.Optical lens made by German Poly Carbon, not easy to age and turn yellow.

德国聚碳制造的光学镜片，不易老化，不易变黄。

3.Sealing strip made of anti-UV silicone rubber .

  密封条采用抗紫外线硅橡胶制成。

4.3030/5050 SMT LED chip to get different light efficacy.

  3030/5050 SMT LED芯片可获得不同的光效。

5.High thermal conductivity aluminum PCB can reduce the speed of light decay of the LED CHIPS.

  高导热铝印刷电路板，降低LED芯片的光衰速度。

6. Laser positioner (optional) to assist in adjusting the light.

  激光定位器(可选)，以协助调整光线。

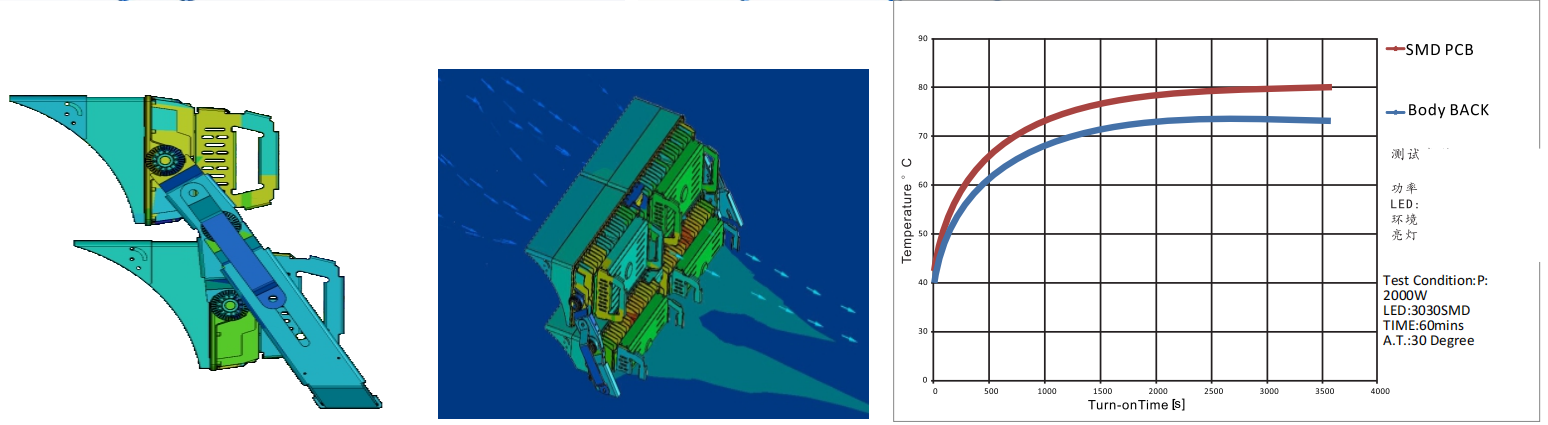

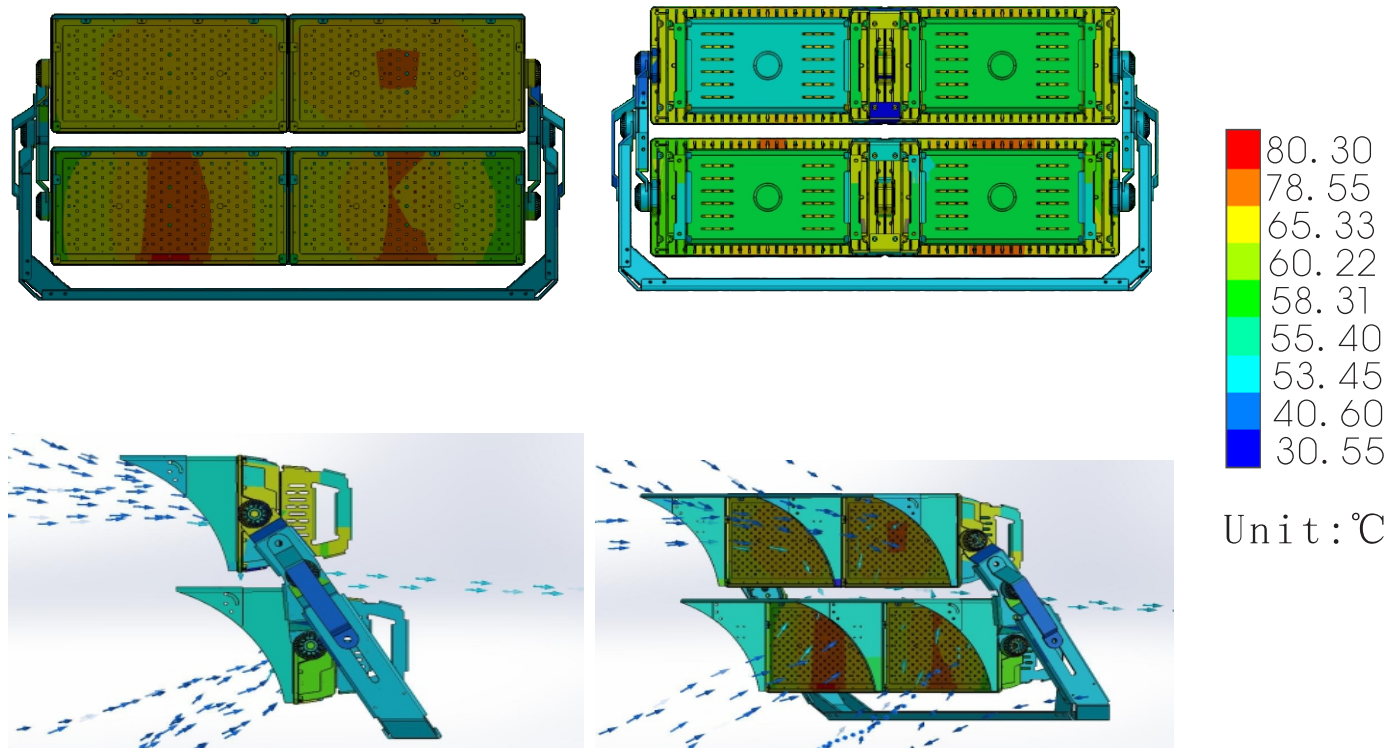

7.ADC12 die-casting heatsink, the heat dissipation efficiency is more than 96W/M.K.

  ADC12压铸型散热器，散热效率大于96W/M.K。

8.The air inside of the lens will cause the siphoning phenomenon if the air volume shrinkage because of the cooling after the lamp is closed, and the moisture inhalation will damage the LED chips or shorten the lifespan of the LED chips.  This waterproof breathing valve will help air enter into the lens without moisture.

  如果闭灯后风量冷却收缩，镜片内的空气会造成虹吸现象，而吸入的水分会损坏LED芯片或缩短LED芯片的寿命。这个防水呼吸阀可以帮助空气进入镜片而不产生水分。

9.External power housing, faster heat dissipation and effective protection of the power supply.

  外接电源外壳，散热更快，有效保护电源。

10.Stronger support is safer and more stable.

  支持越强，越安全稳定。

光学参数

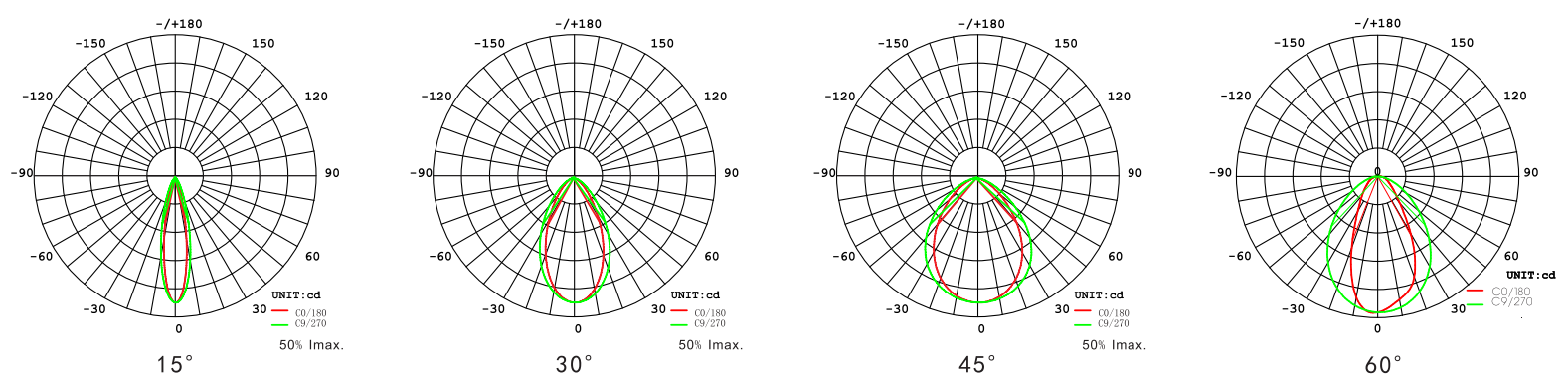

OPTICAL PARAMETERS

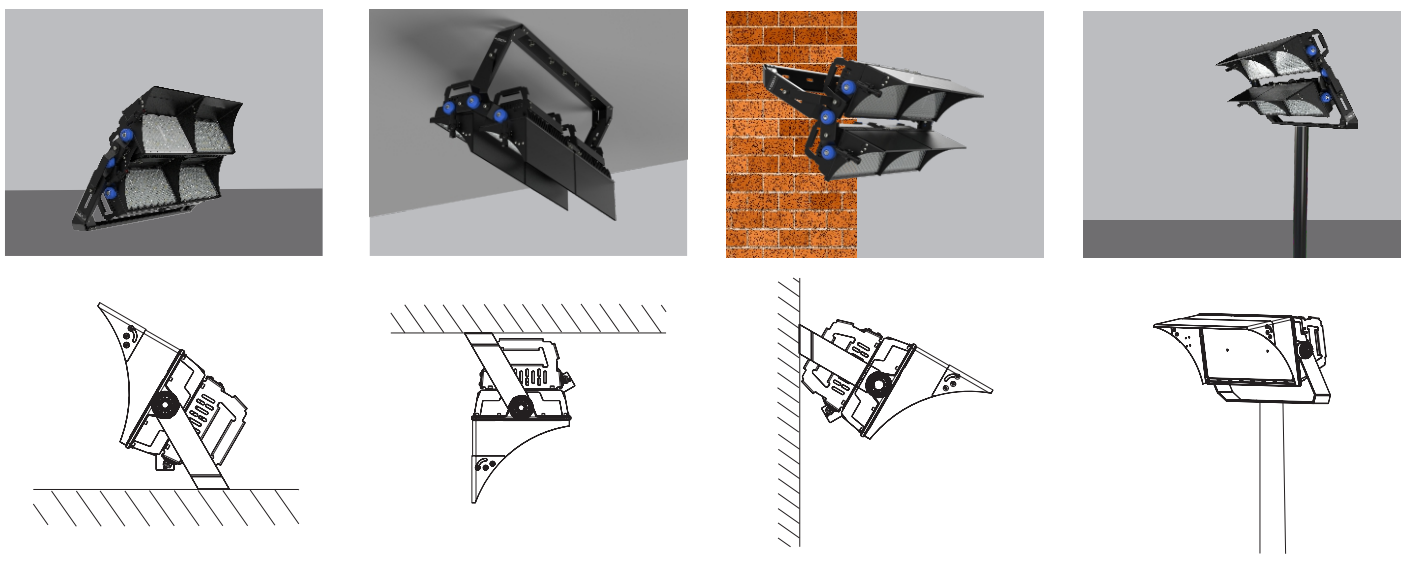

安装方式

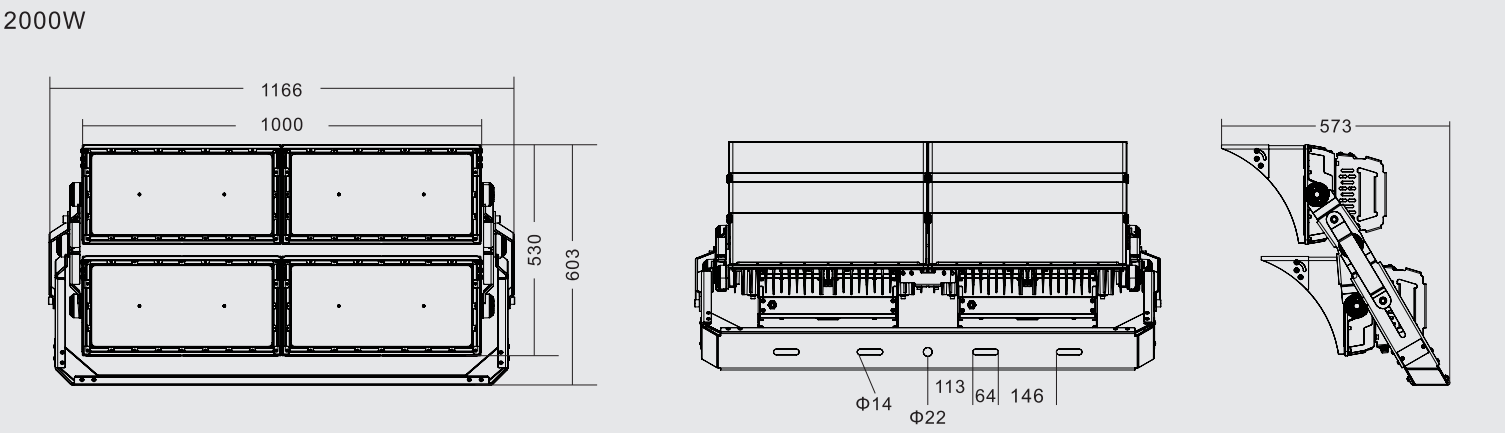

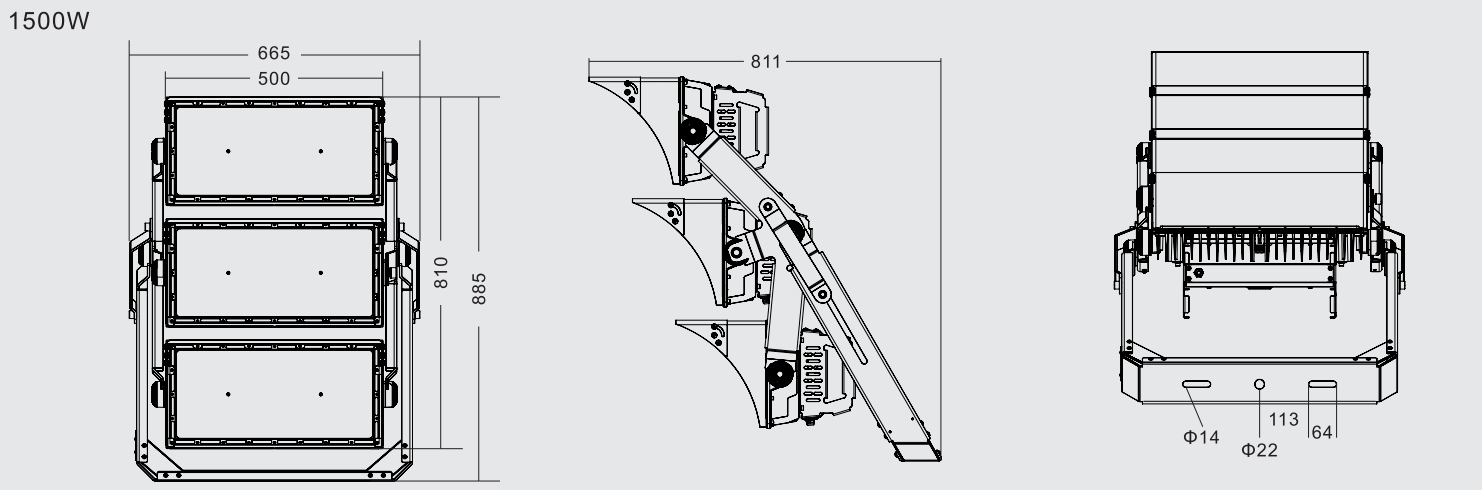

MOUNTING WAYS
