一、产品介绍
主要用途及适用范围
单体建筑、历史建筑的外墙照明、建筑内部及
户外照明、绿化景观照明、广告牌照明、医疗及文化等特殊设施照明、酒吧、体育场馆、体育场、广场、车站、船舶、建筑工地、塔吊等照明。
产品特点
>机身:坚固耐用的铝压铸
>涂装:强力胶电除尘
>镜头:高品质PC
>PCB板:高品质铝PCB板通过1500V测试
>LED光源:高亮度SAN 2835SMD
>数据线:0.15米H05RN-F3G 1.0平方毫米数据线
>螺丝:304不锈钢外螺纹
>手臂角度可调

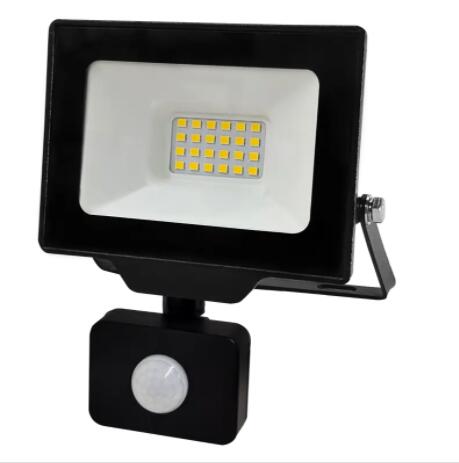

Product Introduction
Main uses and scope of application
single buildings, exterior wall lighting of historical buildings, building interior and
exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars, stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.
Product Features
> Body: Durable aluminum die-casting
> Coating: Electrodusting with strong adhesive
> Lens: high quality PC
> PCB board: High quality aluminum PCB board pass 1500V test
> LED source: High brightness SANAN 2835SMD
> Cable: 0.15m H05RN-F3G 1.0mm2 cable
> Screw: 304 stainless steel at outside
> Arm angle adjustable
Specifications
Item Code | ZH-FDJ(10W~200W) | Viewing angle | 110° |
Power: | 10W/20W/30W/50W/70W/100W/150W/200W | Size: | 90x69.5x28.5mm(10W) |
Voltage: | AC220-240V 50/60HZ | Material: | Aluminum die-casting |
Power Factor: | >0.9 | IP: | IP65 |
Luminous: | 90LM/W | pcs/ctn | 60/40/20/10 |
CRI: | 80 | ctn size (cm) | L38×W32×H21(10W) |
CCT: | 2700K~6500K | cbm/ctn | 0.025(10W) |
Color for body: | black/white | G.W | 10.8 kgs |
Cable: | 0.15m H05RN-F3G 1.0mm2 cable | N.W | 9.0 kgs |
LEDs | 2835SMD | Warranty | 2 years |
MOQ | 1000 |
Application
> Factories
> Warehouses
> Workshops
> Gymnasium & Sports Stadium Lighting
> Station, garage, parking
> Billboard
> Subway, tunnel
