Series | Model No. | Remark |

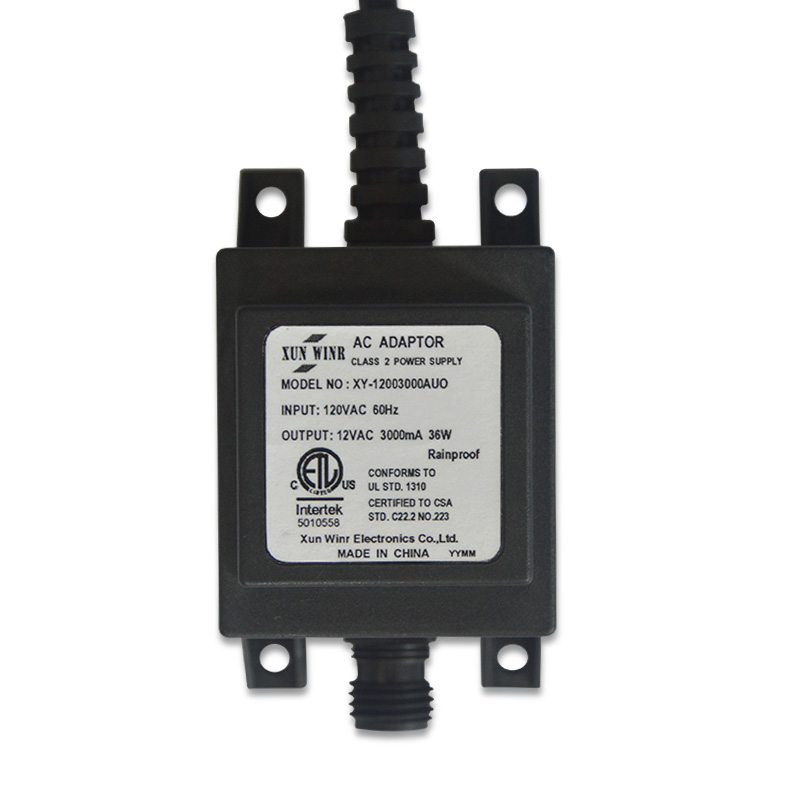

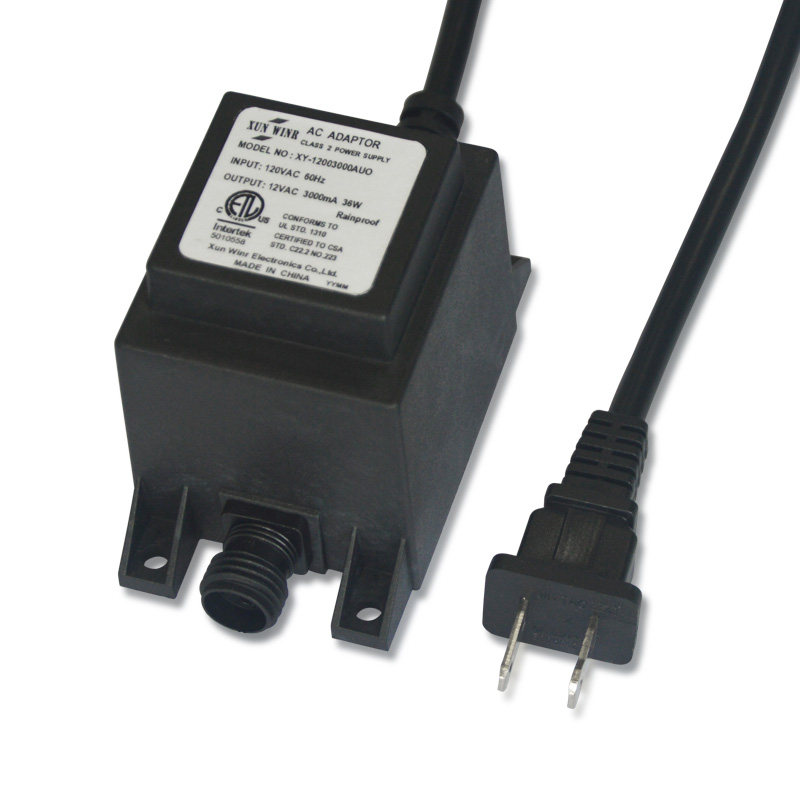

Linear Adapter IP68 72W Max | XY-xxxyyyyy-AZO | “xxx”Stands for Output Voltage “yyyy”Stands for Output Current “Z”Stands for Plug Type (Z=B for UK英规,Z=G欧规 for EU ,Z=U美规 for US,Z=S 澳规for Australia) |
·Adapter Body Designed Per Waterproof Rating IP68
·Class II Power(without Earth Pin)
·Compact Size,Fully Enclosed Plastic Case Filled With Heat-Conducted Glue
·Suitable for General Electronics Applications at Highly Dusty or Damp
·Environment
·2-Year Warranty
Input 输入 | Fixed AC Input |
Output 输出 | Optional AC/DC Output |
Working Environment 工作温度 | 0℃-40℃ 5%-90%RH |
Storage Environment 储存温度 | –20℃-85℃ 5%-95%RH |
Cooling method | Natural Cooling Down |
Energy efficiency Level 能效等级 | ERP-IV,CEC-V/V/VI |
Safety Standard 标准 | EN61558/UL1310 |
RoHS compliant 符合ROHS | Yes |
Plugs available 插头 | US/EU/UK/AU |
最大功率 Max.Watts | 输出参数 Ref.data | 插头分类 Plug type | 尺寸 Dimension(mm) | |||
电压范围 Voltage | 电流范围 Current | 长(L) | 宽(W) | 高(H) | ||
36W | 3-24VAC | 100-5000mA | US | 89 | 54 | 66 |
