APOLLO可拆卸多尺寸UGR＜13多种模组可选LED面板灯

联系人

summer

139********

Life hours:50,000hours 5years warranty

1.By giving the luminaire a distinct appearance, the luminaire comes with great potential for lighting quality and energy efficiency.

2.Up to 140 lumens per watt result in short payback periods Light distribution is effected via the lenses at a rate of 95 per cent;only 5 per cent are accounted for by the reflections from the lighting chamber.

3.The Wide Beam lens optic is the ideal choice for applications where high uniformity comes first.

4.The range of lumen packages and module sizes correspond to those of conventional recessed luminaires Accordingly,conventional luminaires can simply be replace by exchanging the 1:1.

Featuring module design technology, Apollo panel light offers the ideal combination of stylish design and optimum performance for both task and general lighting.Ensures optimum light distribution and full glare control in compliance with the latest office-lighting(UGR<13).

Product Details

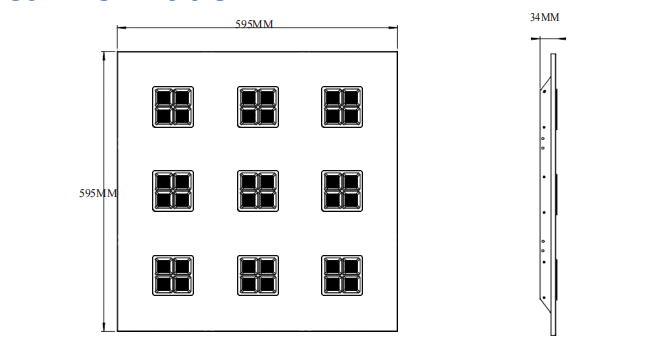

Dimension

Parametater

Power	Lumen/w	UGR	DF	Beam Angle	Housing Color	Size(MM)	Certification No.	Reference Item
10W	100/120/130	<13	>0.5	70°	White/Black	170×170×34	LED panel light 10w	ESA-170*170-10W
22W	100/120/130	<13	>0.9	70°	White/Black	595×595×34	LED panel light 22w	ESA-595*595-22W
30W	100/120/130	<13	>0.9	70°	White/Black	595×595×34	LED panel light 30w	ESA-595*595-30W
40W	100/120/130	<13	>0.9	70°	White/Black	595×595×34	LED panel light 40w	ESA-595*595-40W
22W	100/120/130	<13	>0.9	70°	White/Black	295×1195×34	LED panel light 22w	ESA-295*1195-22W
30W	100/120/130	<13	>0.9	70°	White/Black	295×1195×34	LED panel light 30w	ESA-295*1195-30W
40W	100/120/130	<13	>0.9	70°	White/Black	295×1195×34	LED panel light 40w	ESA-295*1195-40W

WW:2700-3500K NW4000-4500K PW5000-5500K CW:6000-6500K Luxsensor and motion sensor is optional

IP20,IK08,1-10V Dimmable,Dali,CCT changing,Ripple<5%,Flicker free,Input voltage:100-240V AC,CRI>80/>90

Features

1.Fashionable appearance,NEW BULBS

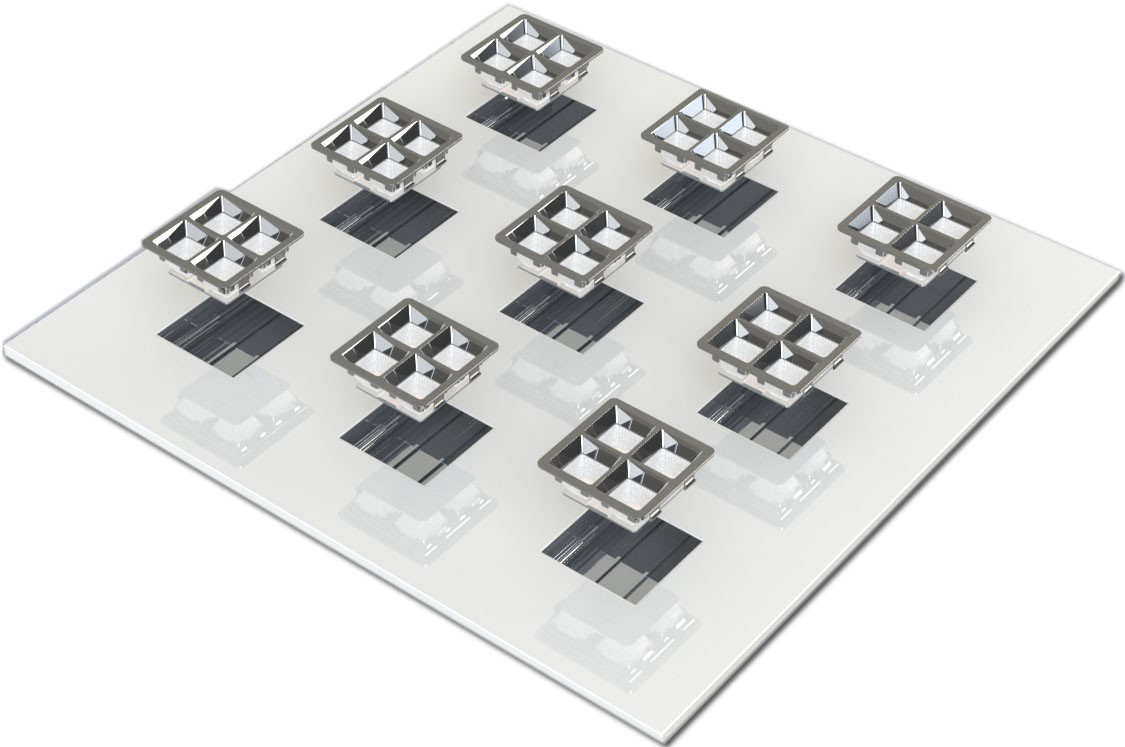

2.Easy replacement module,convenient and efficient

3.Different color temperature module,reduce stock

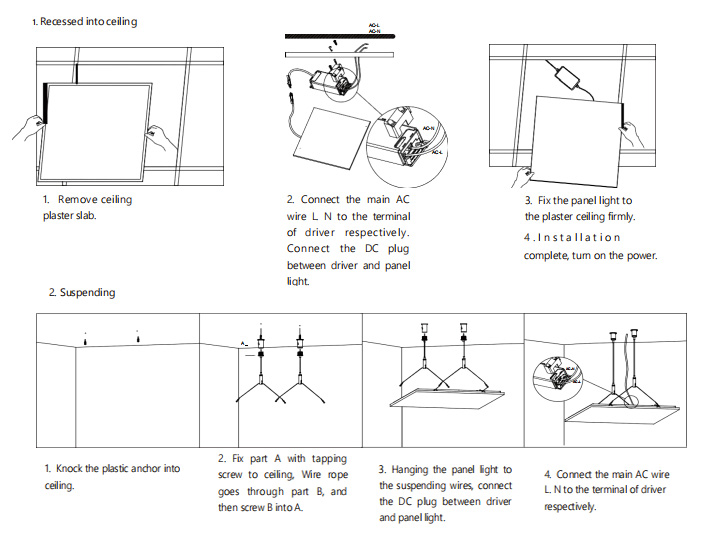

4.Installation :Suspended/Recessed

5.7 years extended warranty,including 2 year after-sales service support

6.Glare free:UGR<13

7.Small bean angle,spot light,more useful light

8.Energy-saving and environment-friendly,A++

9.Lumen output:2800-4000LM@4000K CRI 80

Driver data Sheet

Rated supply voltage	220–240V
AC voltage range	198–264V
Mains frequency	50/60Hz
Over voltage protection	320VAC,1h
THD(at230V,50Hz,fullload)	<20%
Output current tolerance	±7.5%
Typ.output LF current ripple at full load	±25%
Starting time(at 230 V,50 Hz, full load)	≤0.5s
Turn off time(at 230V,50 Hz,full load)	≤0.5s
Hold on time at power failure (output)	0s
Ambient temperature ta	20...+50°C
Ambient temperature ta(atlife-time50,000h)	40°C
Storage temperature ts	-40...+80°C
Life-time up to	50,000h
Dimensions L x W x H	97x43x30mm

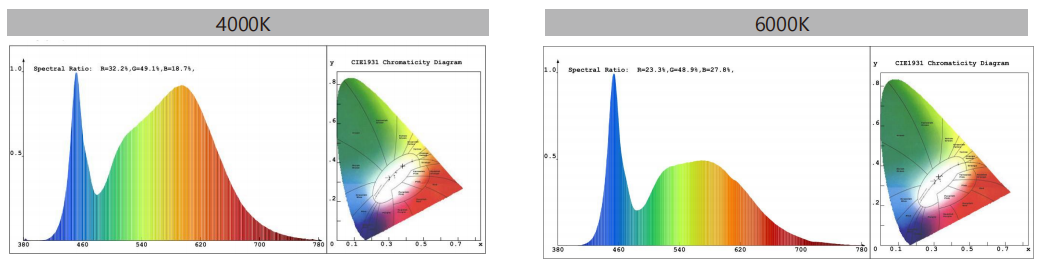

Spectral Distribution

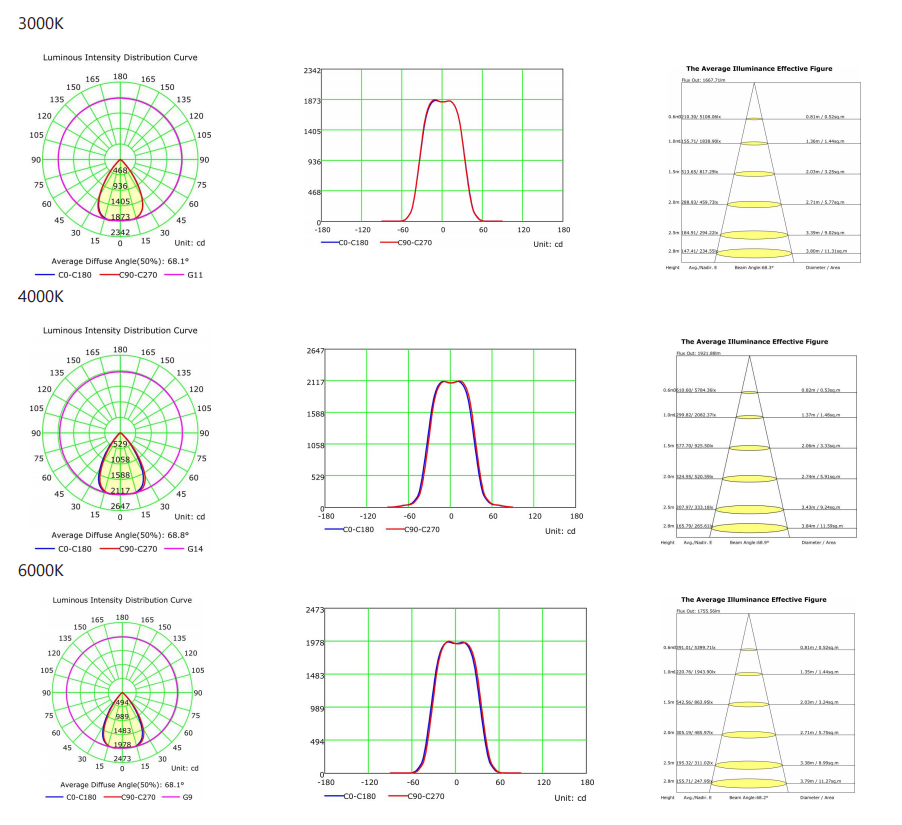

PhotometricDiagram

Fixture Compatibility

Rated Wattage	Electrical Classification	Ingress Protection	Operating Temp	Operating Humidity	Storage Temp
22W	Ⅱ	IP20	-20oC~45oC	0~90%	-20oC~65oC

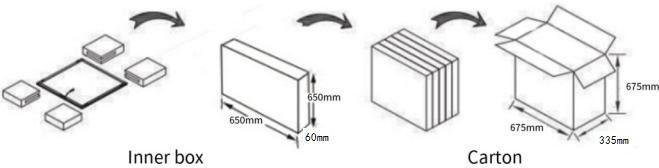

Packaging Information

	SIZE(CM)	N.W/pc (KGS)	G.W.(KGS)	Q'TY(PCS)
Carton	67.533.567.5	3	18	5

Container	CTN	QTY(PCS)	VOLUME(CBM)
20"GP	163	815	28
40"GP	360	1800	56
40"HQ	425	2125	67
