Exploring DALI D4i: The Latest Trend in Smart Lighting–Are You Up to Date?
秉承以客户为中心的理念,为了增进大家对智能照明现状及技术的了解,莱福德将陆续分享一些前沿智能技术与功能的深入解析。在本文中,我们将用4~5分钟的时间,为大家详细解读什么是D4i。
Embracing a customer-first philosophy, Lifud will share in-depth insights into cutting-edge intelligent technologies and features to enhance understanding of the current state of smart lighting and its technologies. In this article, we will take 4-5 minutes to explain what D4i is in detail.

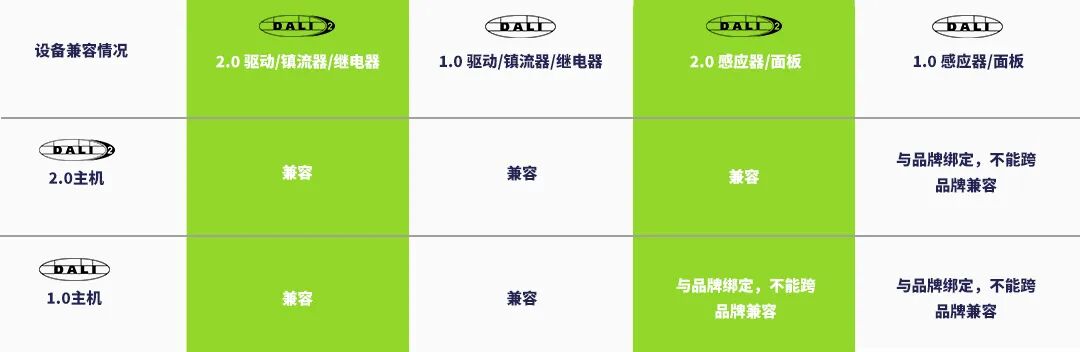

DALI、DALI-2与D4i
DALI, DALI-2, and D4i
DALI-2是目前最新的DALI协议版本,相比DALI version-1版本,进行了许多改进,规范了更严格全面的测试程序,增强了产品的互操作性并扩展了新的功能命令。
DALI-2 is the latest version of the DALI protocol, featuring many improvements over DALI version-1. It includes more stringent and comprehensive testing procedures, enhances product interoperability, and introduces new functional commands.
D4i技术是基于DALI-2协议的扩展,专为智能物联网(IoT)照明设计。它不仅继承了DALI-2的所有优点,更增加了对数据相关功能的支持,如灯具资产、能耗使用和诊断数据的收集与分析。
D4i technology is an extension of the DALI-2 protocol, specifically designed for smart IoT (Internet of Things) lighting. It not only inherits all the advantages of DALI-2 but also adds support for data-related features, such as the collection and analysis of luminaire asset, energy usage, and diagnostic data.
▼莱福德D4i认证产品 Lifud's D4i Certified Products
也就是说,所有的 D4i 认证产品也都是 DALI-2 认证产品,这些产品可以选择放置 D4i 标识或者 DALI-2 标识,也可以两者都放。
This means that all D4i-certified products are also DALI-2 certified. These products can display either the D4i logo, the DALI-2 logo, or both.
D4i技术的优势
Advantages of D4i Technology
1、集成DALI总线:该功能可开启也可禁用,简化系统实现即插即用。
2、在传统DALI-2的应用中,总是伴随着 DALI 总线将多个DALI设备连接起来才能成为一个DALI系统,而D4i则将总线集成在了驱动内部,也就是一个应用D4i驱动的灯具可以自成系统。
2. Self-Contained Systems: Traditionally, DALI-2 applications require a DALI bus to connect multiple DALI devices into a system. D4i integrates the bus within the driver, allowing a luminaire with a D4i driver to function as a standalone system.
3、灯具资产数据收集:储存和灯具相关的数据,帮助用户了解产品信息。
如灯具生产厂家的GTIN码、生产日期、色温、标称输入功率等,便于产品追溯和后期维护。
3. Luminaire Asset Data Collection: This feature stores detailed luminaire information, assisting users in understanding product details. Data includes manufacturer’s GTIN code, production date, color temperature, and nominal input power, aiding in product traceability and maintenance.

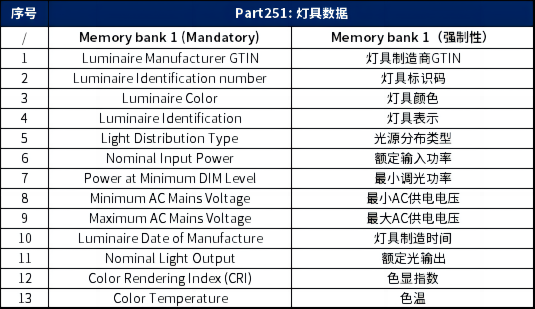

▼具体可查询信息 Click here for more detailed information
例如如灯具消耗了多少电(理论值=电源输出),电源消耗了多少电(理论值=输出/效率),电网提供了多少电(理论值=电源耗电/PF)等。

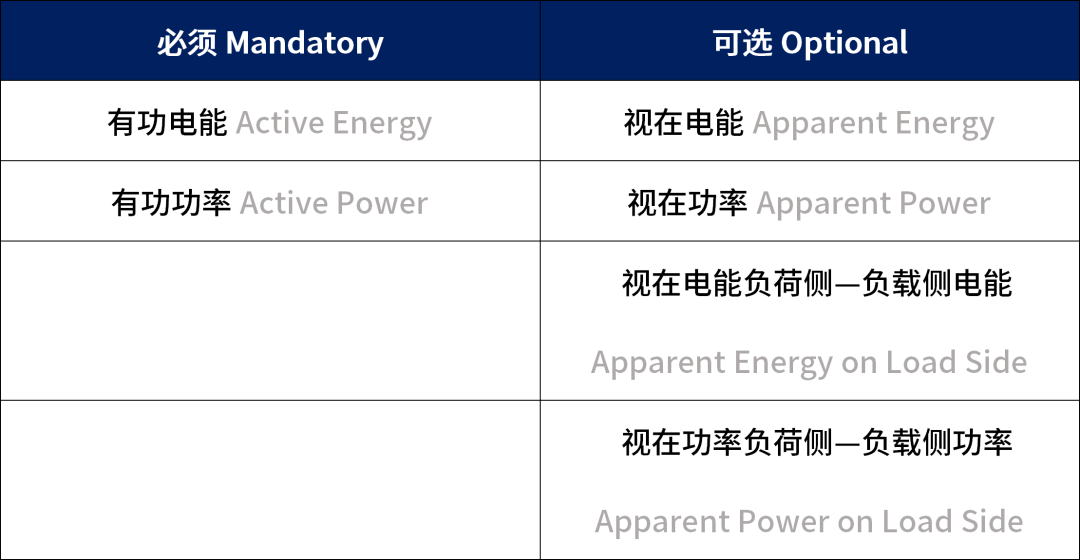

▼能耗监测必选和可选项目 Mandatory and Optional Energy Monitoring Items
如看驱动电源是否输入欠压、输入过压、过温以及故障次数;看灯具是否短路、开路、过载、过温以及故障次数等。
5. Diagnostics and Maintenance: Monitors the operating status of the driver and luminaire, reads maintenance data, and enables data-driven management.
Examples include: Driver Diagnostics: Checks for issues such as input undervoltage, input overvoltage, overheating, and counts the number of faults.
Luminaire Diagnostics: Checks for conditions such as short circuits, open circuits, overloads, overheating, and counts the number of faults.

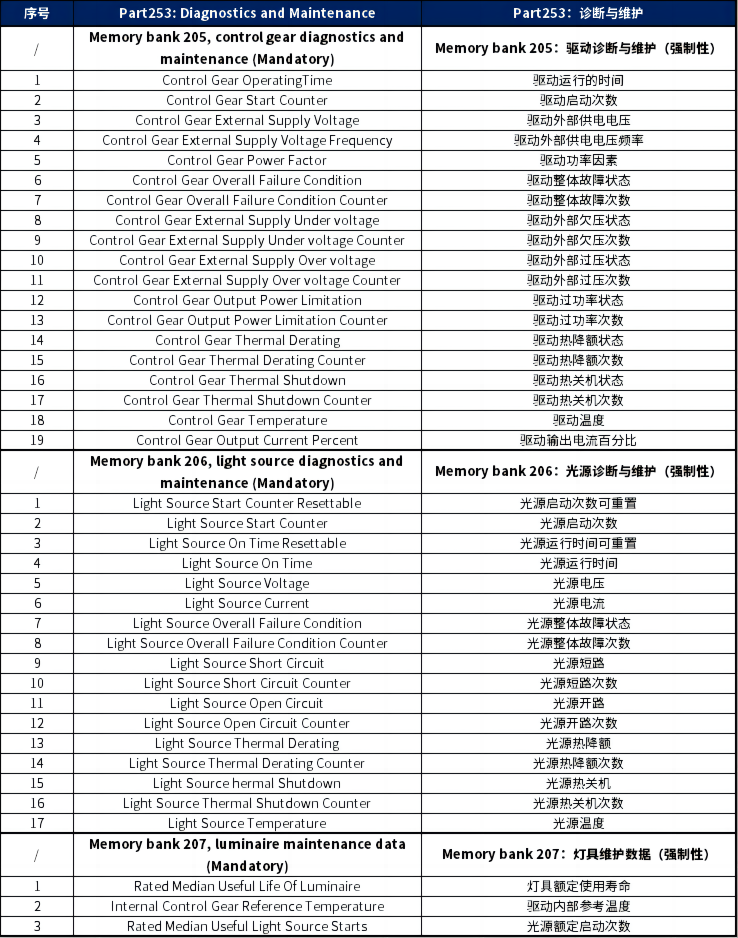

▼具体诊断与维护内容 Specific Diagnostic and Maintenance Details
D4i还定义了和传感器、无线模块之间的接口(要求典型电压24vdc、125mA 辅助电源,平均功率为 3W,峰值功率为 6W),可提高应用可靠性,并方便外接模块。
D4i also defines interfaces with sensors and wireless modules, requiring a typical voltage of 24V DC and an auxiliary power supply of 125 mA, with an average power of 3W and a peak power of 6W. This enhances application reliability and facilitates the connection of external modules.

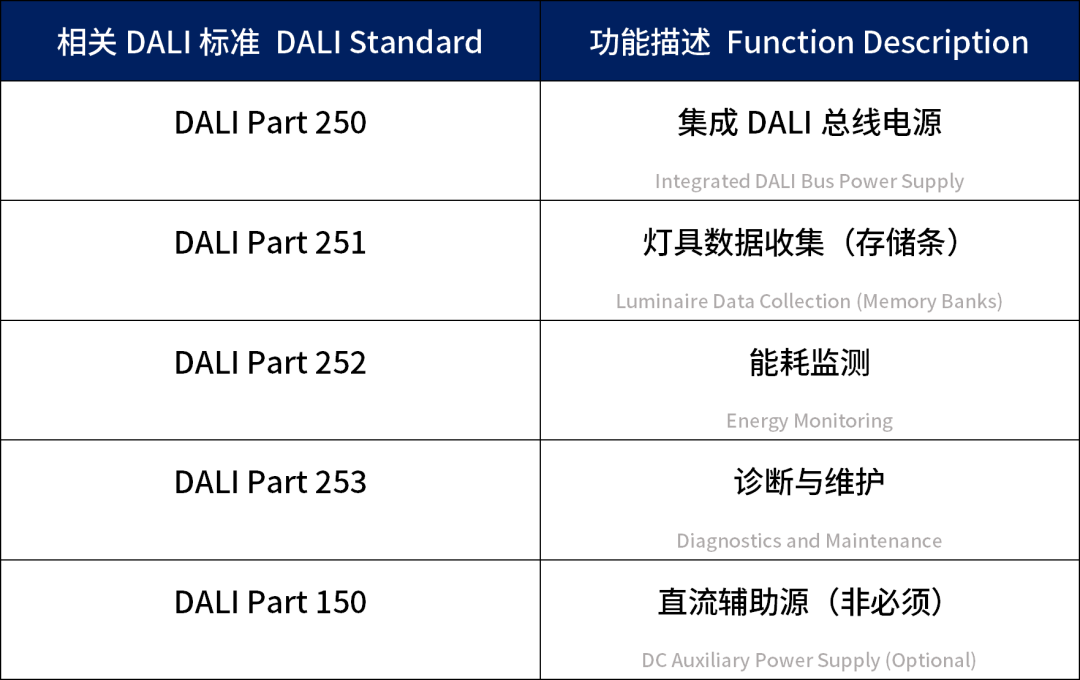

总结:相关DALI标准与D4i产品对应功能
Summary: Corresponding Functions of DALI Standards and D4i Products
PS:相关产品查询

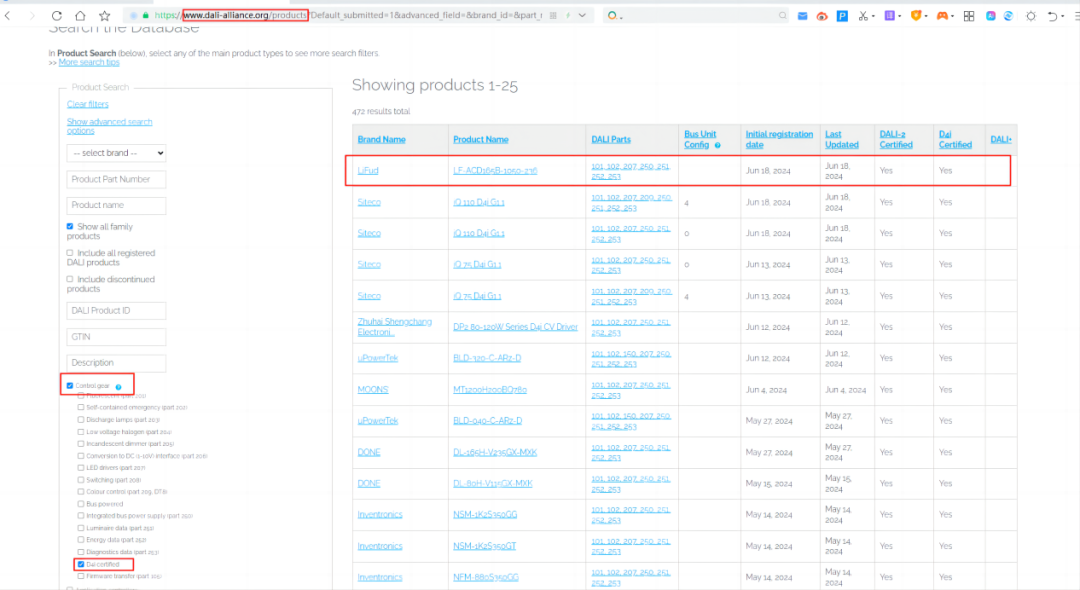

如想要查询产品是否符合D4i认证,可在DiiA数据库(www.dali2.org/products)产品搜索中,选择"Control gear"按钮,然后选择“D4i”。
To check if a product is D4i certified, please visit the DiiA database at www.dali2.org/products. In the product search, select the "Control gear" button, and then choose "D4i."
更多照明前沿技术知识,关注莱福德微信公众号&视频号!
As a rising star in the smart lighting industry, D4i is leading us into a new era of lighting that prioritizes energy efficiency, operational ease, comfort, and effective management. Its standardized data capabilities and plug-and-play compatibility are setting new standards.
For more insights into cutting-edge lighting technologies, please follow Lifud on our LinkedIn Account!
