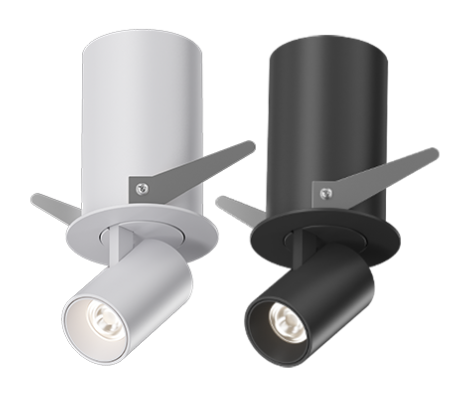

Cigno系列嵌入式拉伸灯,采用了高效,稳定,安全品质的CREE光源;其高效阳极氧化反射器,高品质铝压铸材质及独特的散热片结构设计,拉伸幅度90-180D,水平方向0-350D的调节方向,保证了灯具的高光效输出,优秀的光线分布的均匀度和应用功能性适用度;同时与不同色温光源来适配以达到不同气氛需求,达到最佳的照明效果。
安装方式:嵌入式
绝缘等级:Class II
保护等级:IP20
产品认证:CE,CB,CCC,RoHS,CQC
适用场所:商场,店铺,酒店,家居,别墅,会所,展览&博物馆,画廊等。

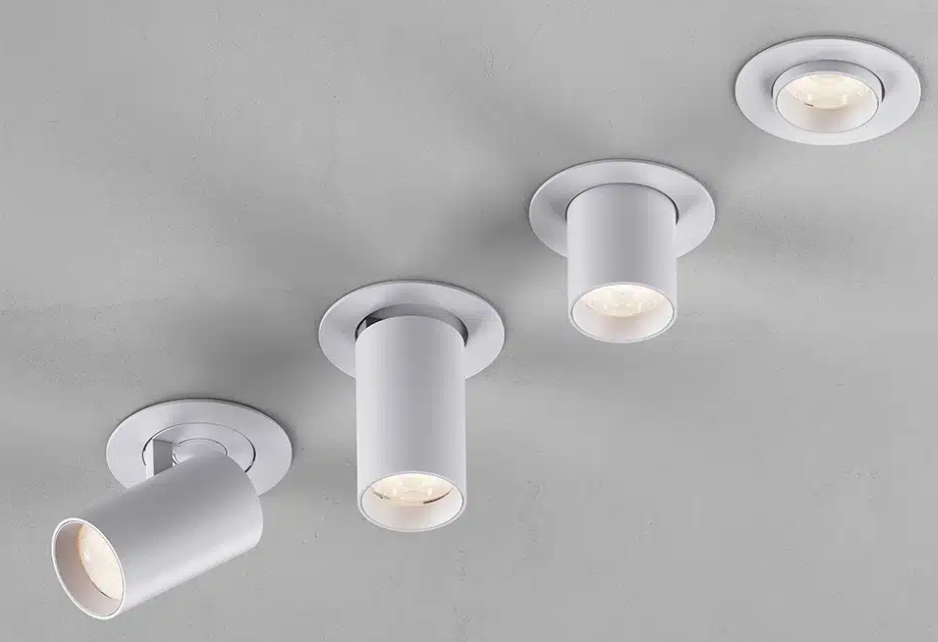

Cigno’s unique mechanism design allows you to flexibly adjust the distance it illuminates, supporting 90°-180° up and down adjustment, and 0-355° rotation.
The distance and direction of the light are up to you!
Lighting Category | Downlight-Stretchable Downlight |
Model | L23023 |
Chip | CREE XHP-35 |
Driver | Eaglerise external driver |
Input | AC220V~240V 50Hz/60Hz |
Power | 3W |
Luminous flux. | 130±5% lm |
CRI | Ra80/Ra90 |
CCT | 2700K/3000K/4000K/5000K/6000K |
Lens | Ledlink LL01XP-FL25L06 |
Beam Angle | 25° |
Fixture Adjustable Angle | Stretchable / Up&down 90-180° / Rotation 355° |
Surface Color | Sand White/ Sand Black |
Dimension | Φ47*95mm |
Cut-Out | Φ40mm |
Dimming | Triac/0-10V/DALI |
Material | Aluminum alloy, PC |
Index of Protection | Class II |
Installation | Recessed Mounting |
IP Rate | IP20 |
Working Temperature | -20℃-40℃ |
