220V 50米长距离照明 隧道灯 工作灯 工地灯
220V 50 m long distance lighting tunnel light working light site light

>> Description:特点描述
Super bright. 180 units 2835 SMD LEDs per meter, the brightness of 2835 LEDs is 3 times as 3528 version.
Waterproof. IP65 rating for outdoor and indoor use.
Linkable. It can be linked to maximum 50meters with only one plug,no tools requiried.
Easy Installation. IP44 european power plug included.Plug and play without tools.
Components Saving. Can be directly connected into main supply, no power adapter, transformer or driver is required.
Flexible. Slim, compact and flexible PCB strip. Applicable for bendable or angled patterns, or in continuous rows.
High Voltage. Low voltage drop. More little light attenuation, well-distribute lighting in the whole 50 m strips.
Reduce re-lamp frequence. Long lifespan. Save effort and labour costs on changing lights frequently.
Widely applicable. Not only be cut in sections, but also can maximum run 50 meters with only one power plug.
Eco-Friendly. No lead or mercury Application: It is convenient and cost-saving for large outdoor projects.
Application. Perfect lighting solution in construction site, road, building outline,etc.
Popular markets: Western Europe, Northern Europe
超级明亮。180单元2835 SMD led每米,2835 led的亮度是3528版本的3倍。
防水。IP65适合室外和室内使用。
可手动串接。只需一个插头,最多可连接50米,无需工具。
安装方便。含IP44欧洲电源插头。即插即用,无需工具。
免电源。可直接接入AC220V电源,无需电源适配器、变压器或驱动器。
柔性,尺寸小。适用于可弯曲或有角度的图案,或连续排列。
220V50米无压降,首尾亮度一致,光线均匀。
减少换灯次数。长寿命。省却频繁换灯的工作和人力成本。
广泛适用。不仅可以分段切割,而且只用一个电源插头最多可以接50米。
环保。无铅、无汞应用:大型户外工程使用方便,节约成本。
应用场景:隧道、地面矿区、施工现场、道路维修、建筑轮廓等,特别适合临时照明用。
畅销市场:西欧、北欧

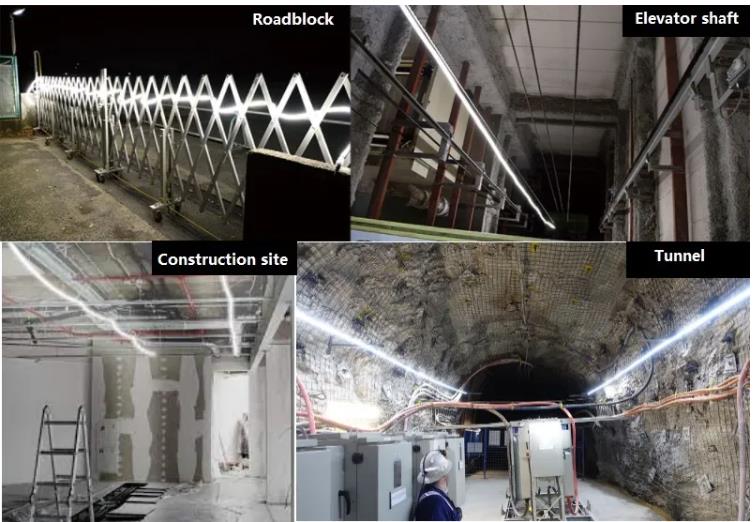

>> Application scene 应用场景

>> Specifications:参数
型号 Item | SP2835H180S-25 |
LED型号 LED Type | 2835 SMD |
寿命 Rated lifetime of LED (h) | 30,000 |
每米灯珠数 LED Quantity (units/m) | 180 |
输入电压 Input Voltage (V) | 220-240 AC |
频率 Frequency (Hz) | 50 Hz |
驱动方式 Driver Mode | Constant voltage 恒压 |
认证 Certification | CE,RoHS issued by SGS |
色温 Color Temperature (K) | 6000K |
支持调光 Dimmable | yes,with extra dimmer 是,需额外接调光器 |
功耗 Power Consumption (W/m) | 8.5W/m |
亮度 Lumen flux (Lm/m) | 1050lm/m |
发光角度 Beam Angle | 120 |
最小弯曲直径 Min. Bending Dia (mm) | 80 |
防护等级 Protection Rating | IP65 |
环境温度 Ambient Temp. | -10℃ to +40℃ ( 25℃-best fit ) |
截面尺寸 Sectional Dimension (mm) | Width18 x Thickness7.5 |
长度 Length per Roll | 25m,max. up to 50 meters 25米,可以连接到50米。 |
包装 Package Quantity | 1 roll 25m+ 1pc power cord 1卷25米灯带+1条欧规插头电源线 |
毛重 Package G.W.(kg) | 4.3kgs |
体积 CBM | 0.013 |
质保 Warranty (years) | 2 years 2年 |

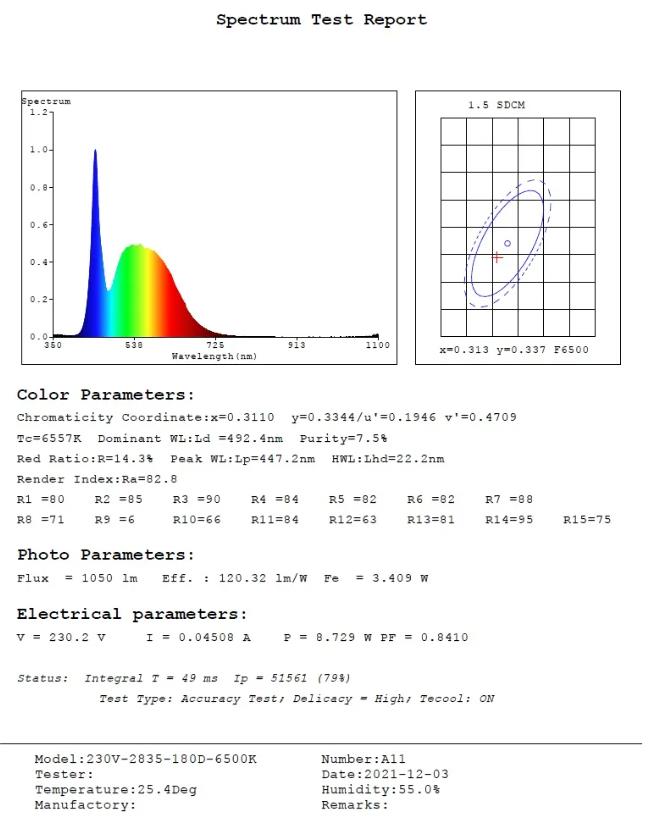

>> Test Report: 测试报告

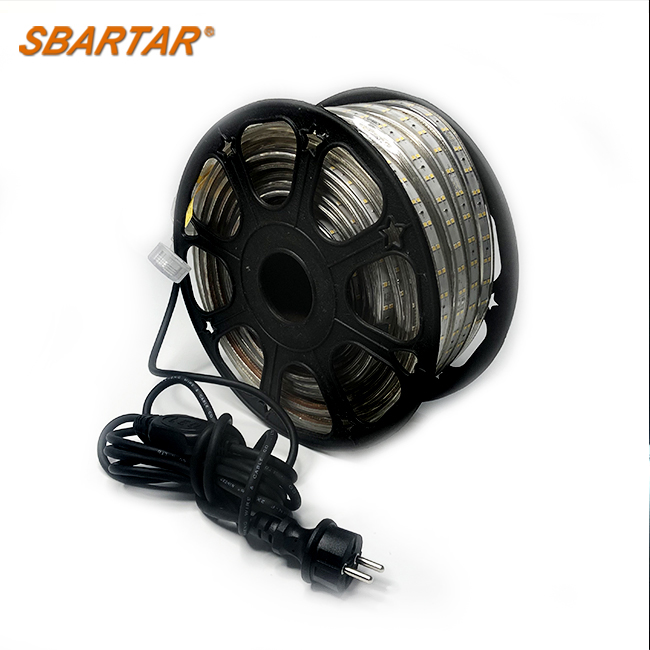

>> Dimensioned drawing & Packaging Photo:尺寸图及包装照片
