24V 9.6W 12W 8mm 软灯带可调光 CB CE

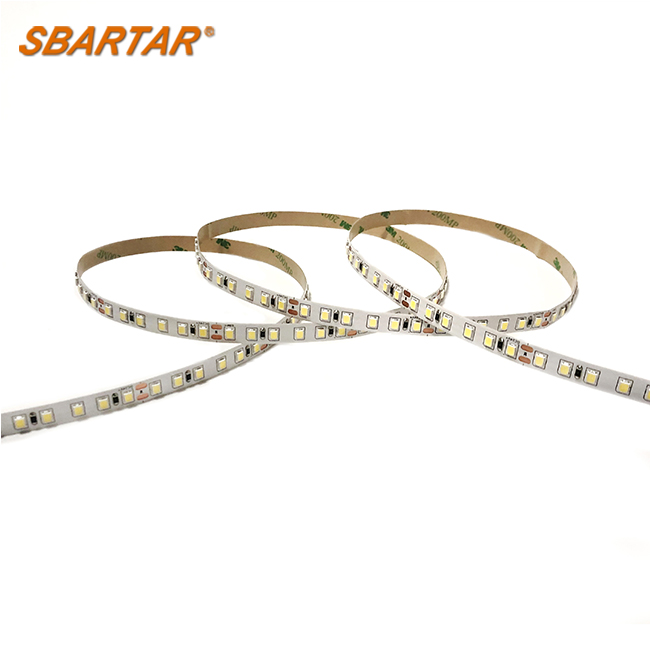

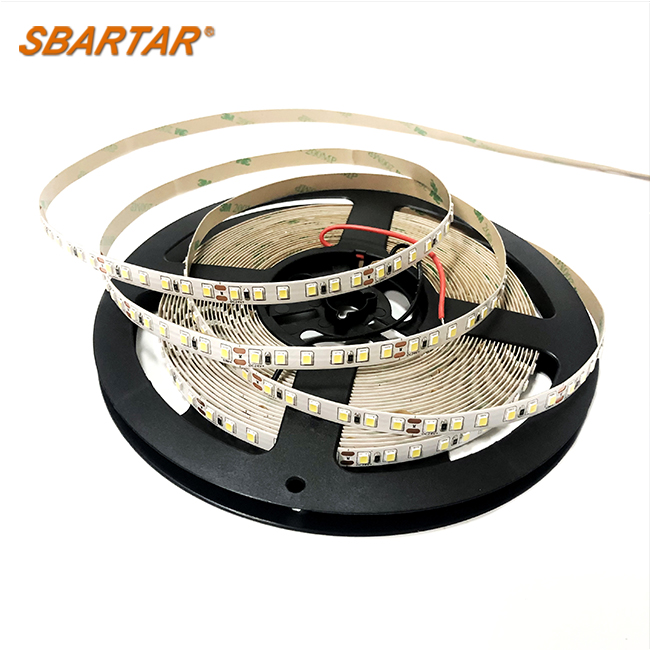

24V 9.6W 12W 8mm Flex led strip light dimmable CB CE
>> Description:特点描述
High brightness and flexible,dimmable with Dali,0-10V,AWM,DMX512.
Easy installation.Double-sided tape on the back, stick it directly to aluminum profile or other smooth surfaces.
Cost saving. Cuttable and connectable, no waste.
亮度高，柔性可完全，可调光，适配Dali，0-10V，AWM，DMX512等多种调光方式。
安装方便。背面贴双面胶带，可直接贴在铝型材或其他光滑表面。
节省费用。可切割再次连接，按需使用，不浪费。
应用场景：商场、会议厅、住宅、酒店大堂、酒店房间、卧室、洗手间等天花暗槽。
畅销市场：沙特、迪拜等中东国家

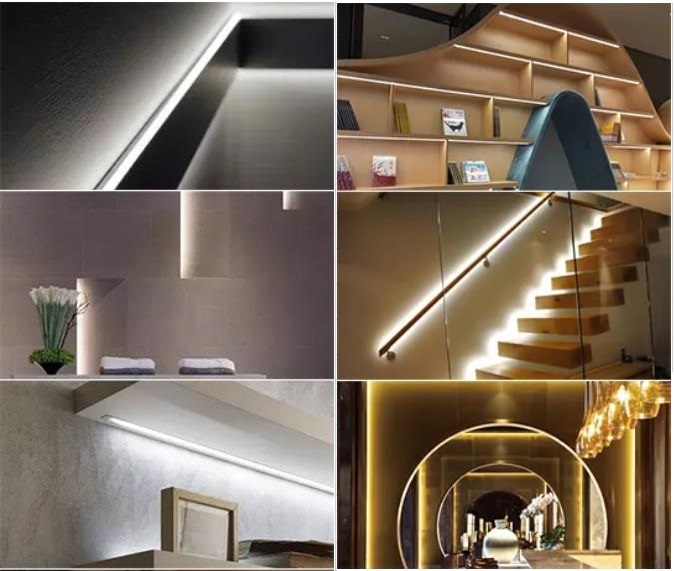

>> Application scene 应用场景
LED light strips are widely used in various scenes due to their advantages of flexibility, easy modeling, dimmable, cuttable and connectable, easy installation, low cost, low voltage and very safe.
IP20 non-waterproof tape light can only be used indoor please or in aluminum profile.
IP65 rain-proof led strip lights can be installed outdoor with mounting clips or aluminum profile.
IP68 waterproof light strip suit for underwater,such as swimming pool,fountain basin.
Waterproof led light strips have protective silicone outside,UV protection,won't yellowing and no cracking in 3-5 years.
- Home lighting. Living room, bedroom,study room,balcony.
- Commercial auxiliary lighting. Shipping mall, the cinema, sauna room,wine bar,club, beauty salon.
- Landscape lighting. Public park, plaza, gymnasium, commercial building, tourist attractions.
- Decorative lighting. Opening ceremony, wedding, audience seat partition.
- Special application lighting. Elevator shaft, mine, tunnel, construction site.
- Warning lighting. Road maintenance, hazardous areas, accident sites.
LED灯带具有灵活、造型方便、可调光、可切割、可连接、安装方便、成本低、电压低、非常安全等优点，被广泛应用于各种场景。
IP20不防水胶带灯只能在室内使用或铝型材使用。
IP65防雨led条形灯可通过安装夹或铝型材安装在室外。
IP68防水光条适用于水下，如游泳池，喷泉池。
防水led灯条外部有保护硅胶，防紫外线，3-5年不发黄，不开裂。
-家庭照明。客厅，卧室，书房，阳台。
-商业辅助照明。航运商场，电影院，桑拿房，酒吧，俱乐部，美容院。
-景观照明。公园、广场、体育馆、商业建筑、旅游景点。
-装饰照明。开幕式、婚礼、观众座位划分。
-特殊应用照明。电梯井、矿井、隧道、建筑工地。
-警示灯。道路维护，危险区域，事故现场。
>> Specifications：参数
型号 Item | SP2835LE120.08.24V |
LED型号 LED Type | 2835 SMD |
寿命 Rated lifetime of LED (h) | 30,000 |
每米灯珠数 LED Quantity (units/m) | 120 |
输入电压 Input Voltage (V) | 24V DC |
频率 Frequency (Hz) | / |
驱动方式 Driver Mode | Constant voltage 恒压 |
认证 Certification | CB,CE,FCC |
色温 Color Temperature (K) | 3000K/ 4000K/ 6000K |
支持调光 Dimmable | yes,with extra dimmer 是，需额外接调光器 |
功耗 Power Consumption (W/m) | 9.6W/m, 12W/m |
亮度 Lumen flux (Lm/m) | 1100lm/m, 1500lm/m |
发光角度 Beam Angle | 120 |
最小弯曲直径 Min. Bending Dia (mm) | 30 |
防护等级 Protection Rating | IP20 |
环境温度 Ambient Temp. | -10℃ to +40℃ ( 25℃-best fit ) |
截面尺寸 Sectional Dimension (mm) | Width 8 x Thickness 1.2 |
包装长度 Length per Roll | 5m,10m,30m |
包装 Package Quantity | 1 roll 30m+ red/black wires on end+adhesive tape on back 1卷30米灯带+红/黑线+背面带装面胶 |
毛重 Package G.W.(kg) | 14kgs for 25rolls in a carton |
体积 CBM | 0.028 |
质保 Warranty (years) | 2 years 2年 |

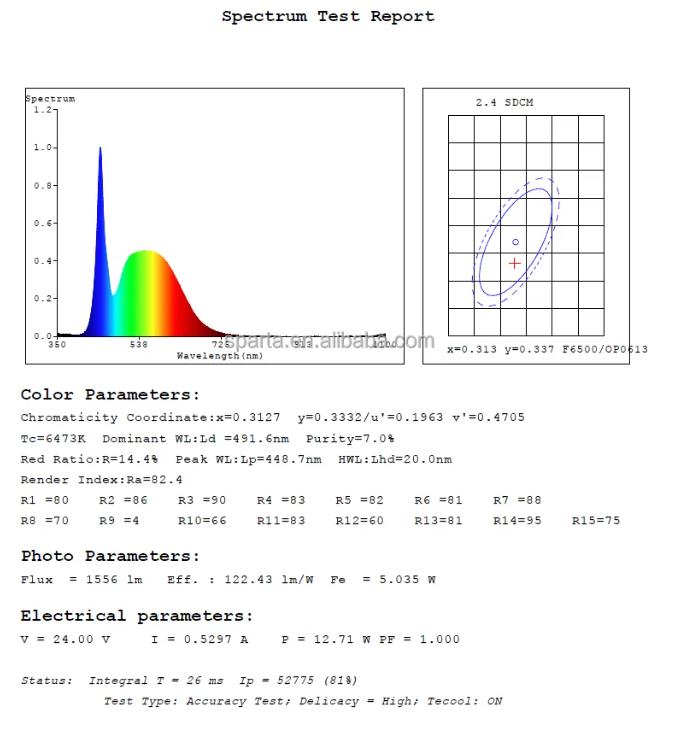

>> Test report 测试报告

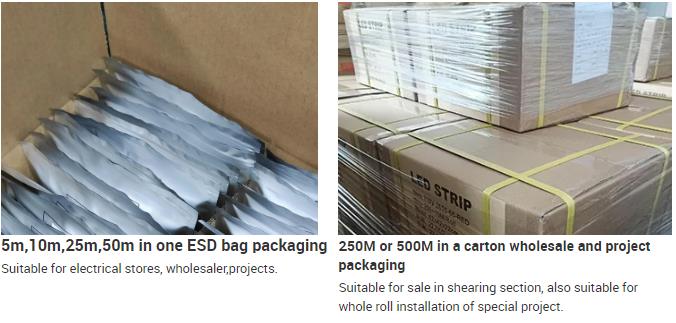

>> Dimensioned drawing & Packaging Photo：尺寸图及包装照片
