110V 5050 RGB软灯带 ETL

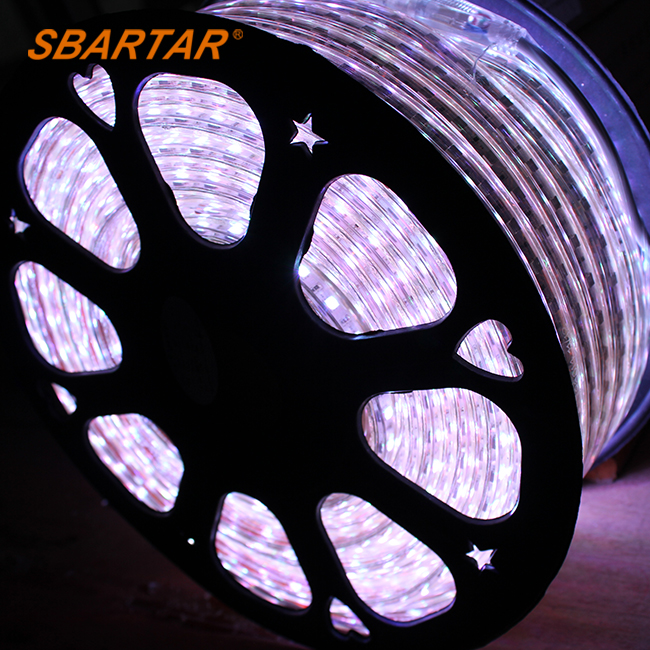

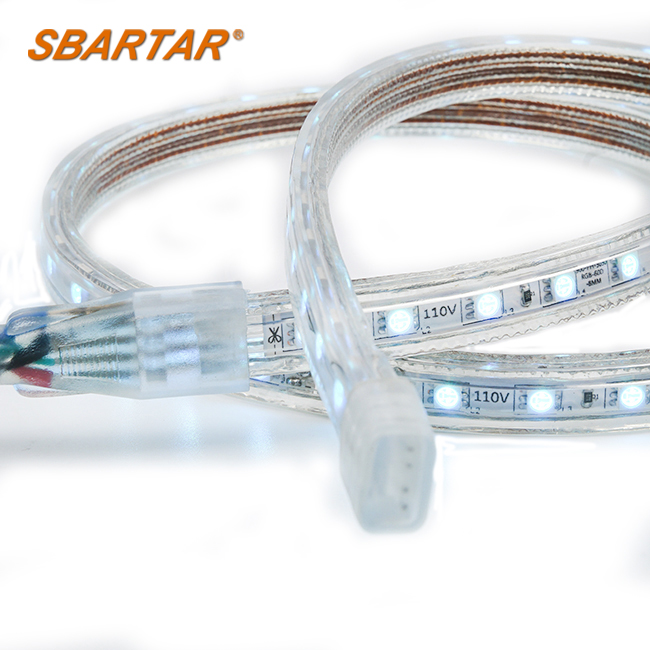

110V 5050 RGB flexible led strip light with ETL
>> Description:特点描述
LED light strips are widely used in various scenes due to their advantages of flexibility, easy modeling, dimmable, cuttable and connectable, easy installation, low cost, no power supply and no voltage drop.
- Landscape lighting. Public park, plaza, gymnasium, commercial building, tourist attractions.
- Decorative lighting. Opening ceremony, wedding, audience seat partition.
- Commercial auxiliary lighting. Shipping mall, the cinema, sauna room,wine bar,club, beauty salon.
- Warning lighting. Road maintenance, hazardous areas, accident sites.
LED灯带具有灵活、造型方便、可调光、可切割、可连接、安装方便、成本低、无压降等优点，广泛应用于各种场景。
景观照明。公园、广场、体育馆、商业建筑、旅游景点。
装饰照明。开幕式、婚礼、观众座位划分。
商业辅助照明。航运商场，电影院，桑拿房，酒吧，俱乐部，美容院。
警示灯。道路维护，危险区域，事故现场。
应用场景：特别适合节日、庆典装饰，户外建筑亮化等。
畅销市场：北美

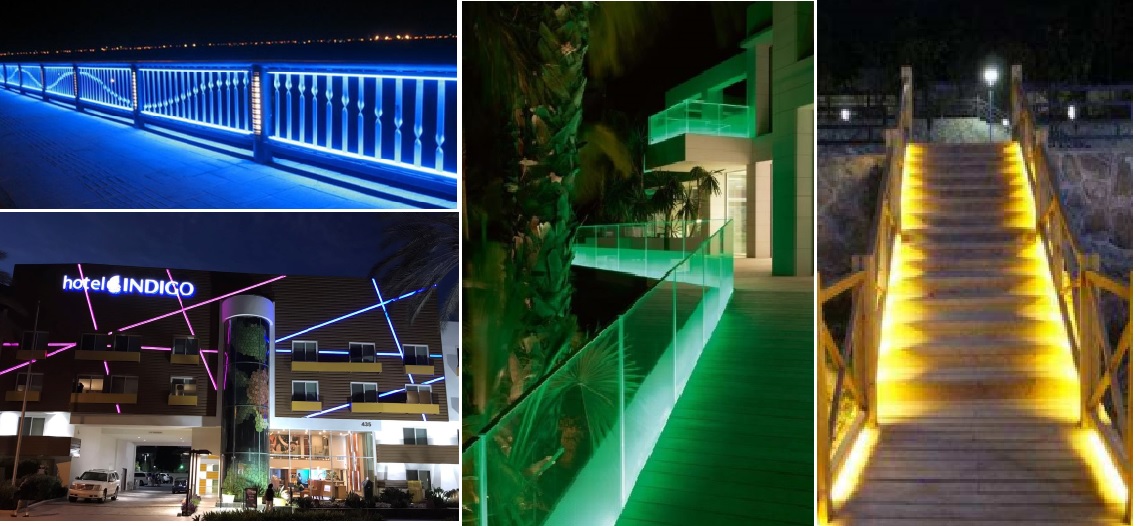

>> Application scene 应用场景
>> Specifications：参数
型号 Item | SPT-FH5050RGB |
LED型号 LED Type | 5050 SMD |
寿命 Rated lifetime of LED (h) | 30,000 |
每米灯珠数 LED Quantity (units/m) | 60 |
输入电压 Input Voltage (V) | 100-130 AC |
频率 Frequency (Hz) | 60 Hz |
驱动方式 Driver Mode | Constant voltage 恒压 |
认证 Certification | ETL |
颜色 Color | RGB （3 chips in one led） |
支持调光 Dimmable | yes,the controller can dim 是，控制器带调光功能 |
功耗 Power Consumption (W/m) | 7.5W/m |
亮度 Lumen flux (Lm/m) | / |
发光角度 Beam Angle | 120 |
最小弯曲直径 Min. Bending Dia (mm) | 80 |
防护等级 Protection Rating | IP65 |
环境温度 Ambient Temp. | -10℃ to +40℃ ( 25℃-best fit ) |
截面尺寸 Sectional Dimension (mm) | Width15 x Thickness7.5 |
长度 Length per Roll | 50m |

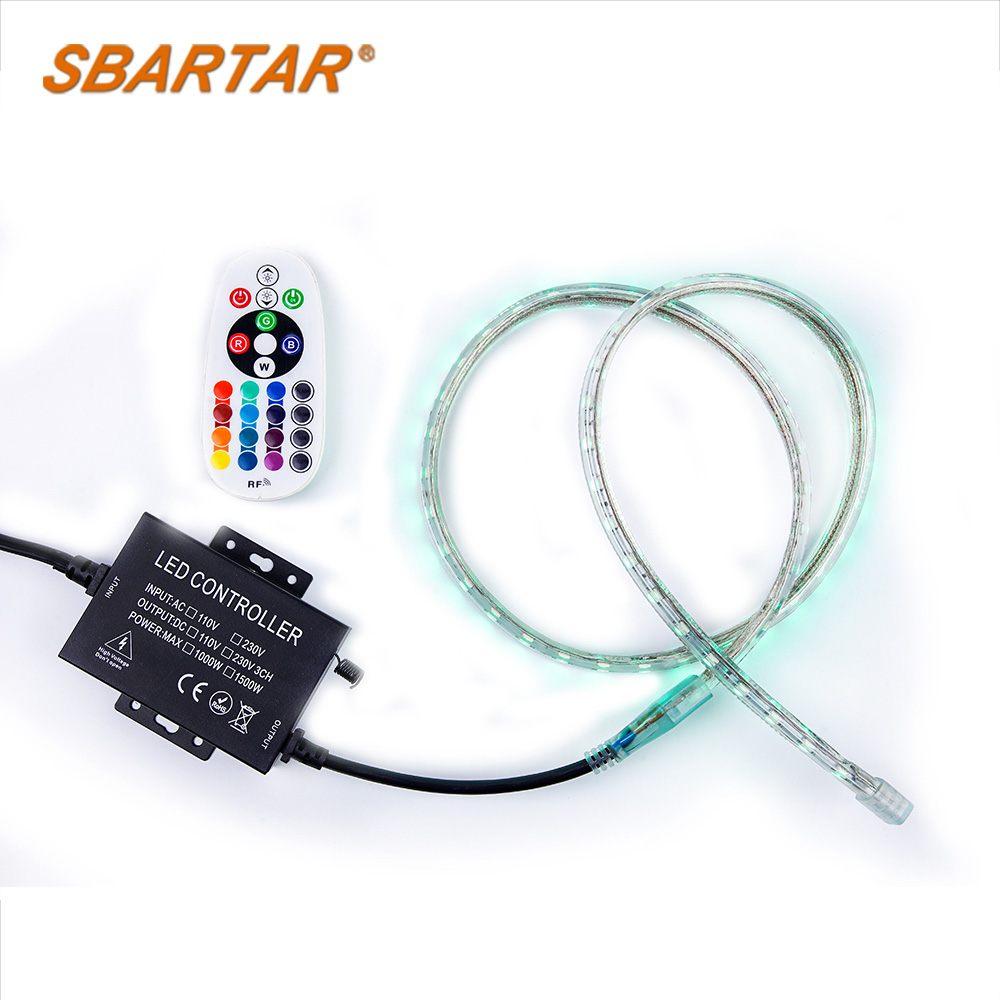

包装 Package Quantity | 1 roll 50m+ 1 pc controller + 1pc 24-key RF remote+100pcs clips 1卷50米灯带+1个控制器+1个24键射频遥控器+100个固定卡扣 |
毛重 Package G.W.(kg) | 7.0kgs |
体积 CBM | 0.017 |
质保 Warranty (years) | 2 years 2年 |
>> Test Report: 测试报告

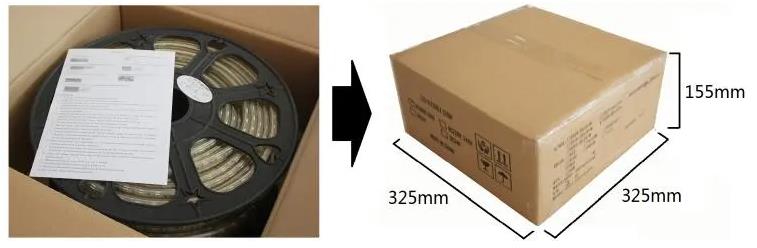

>> Dimensioned drawing & Packaging Photo：尺寸图及包装照片
>> Contact：询价
