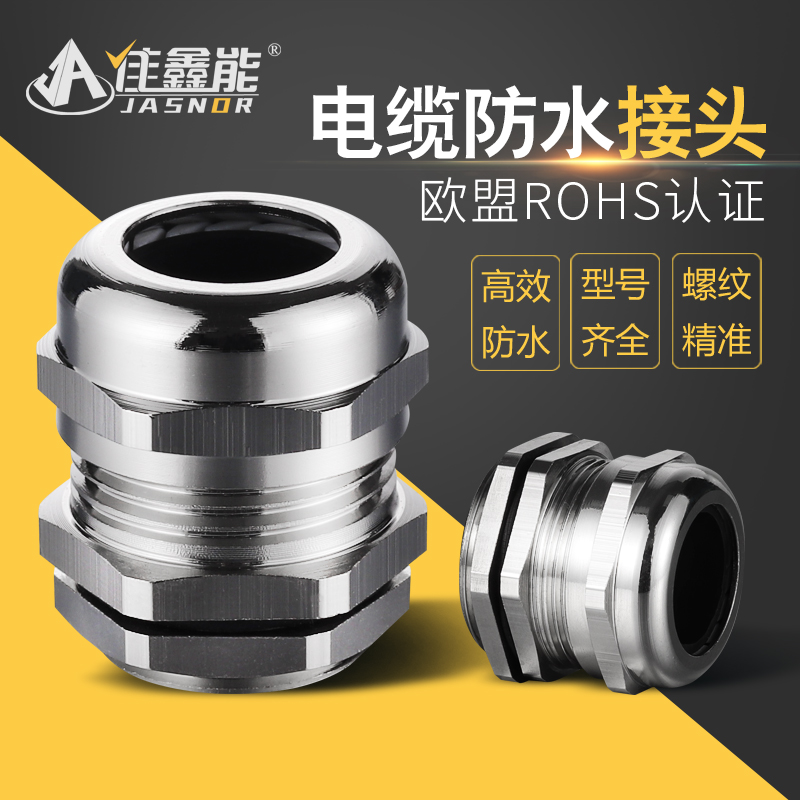

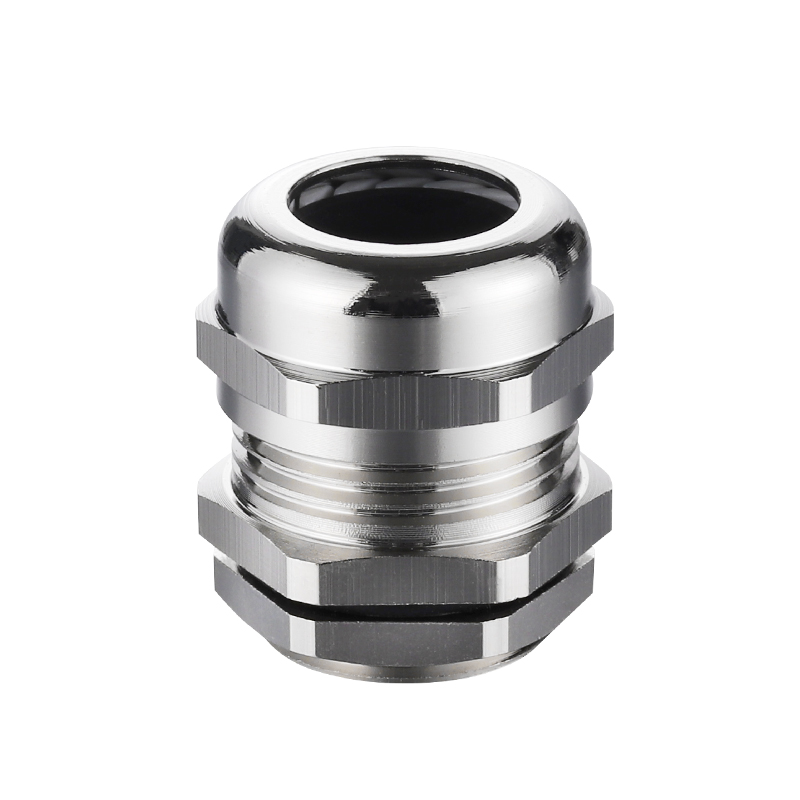

佳鑫能金属防水B型接头铜镀镍防水接头

公制螺纹M系列

广州佳鑫电器有限公司

咨询热线：020-36700481

公司网站：https://www.jx218.com

24H服务热线：13728087739

螺牙规格:公制螺纹M(Metric）系列，符合欧盟规范。

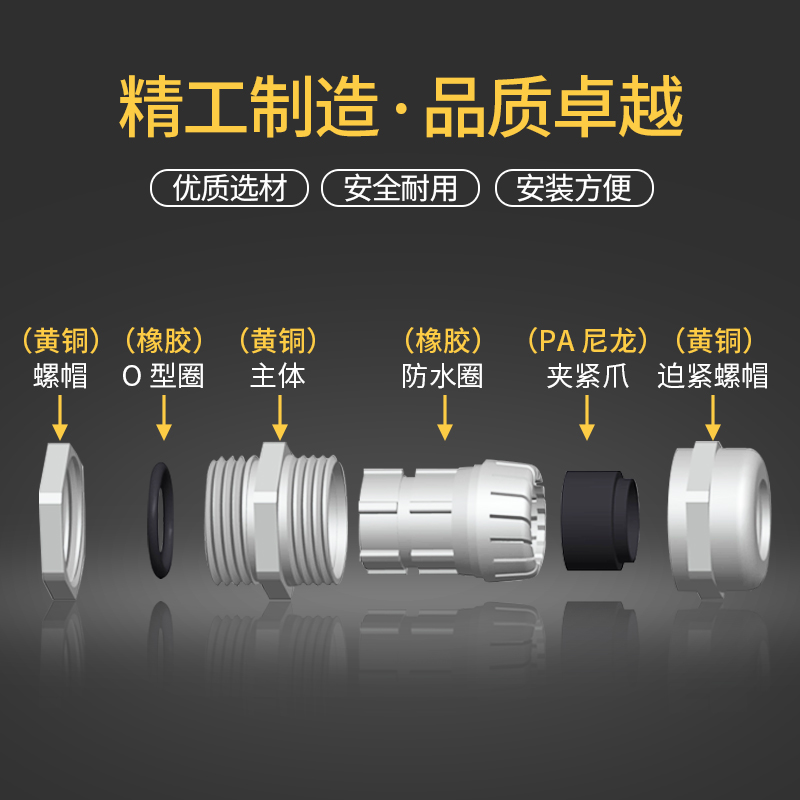

产品材质:A、C、F接头主体部位采用优质黄铜镀镍制成，B、D部分采用硅胶/丁腈橡胶制成（可定制耐候橡胶），E部分采用PA尼龙制成。

产品认证:欧洲CE认证、欧洲 ROHS认证、欧洲 REACH认证防护等级:在规定的卡口范围内,并使用〇型密封圈旋紧迫紧头，达到IP68-10巴压力。

工作温度:静态:-40℃到100℃,短时间达120℃。

动态:-20℃到80℃，短时间达100℃。

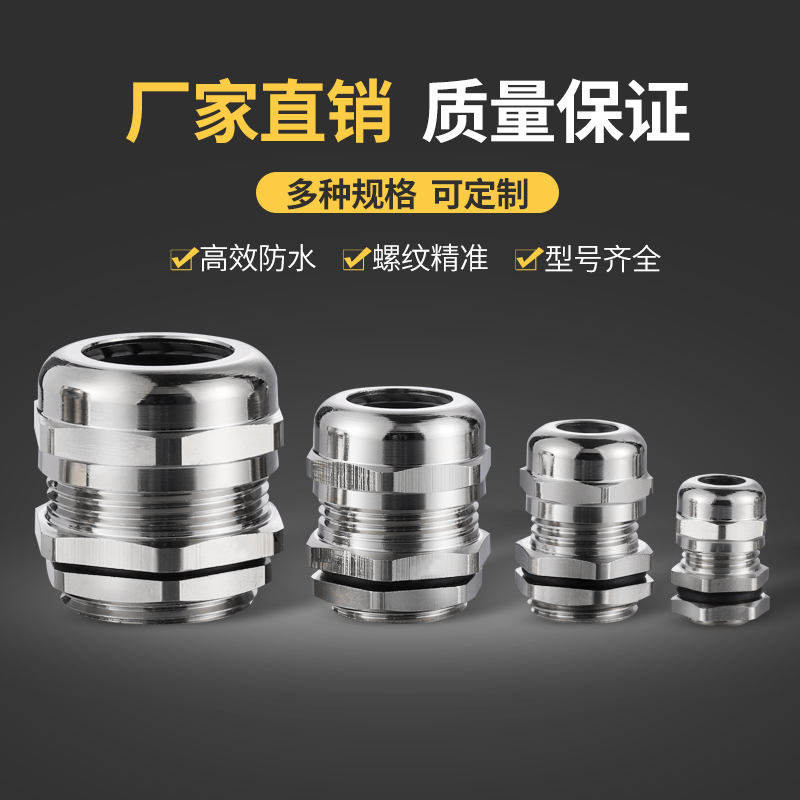

螺纹长度:短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。安装螺纹长度可定制。

产品特性:特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利，夹紧电缆范围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、酒精、油脂及一般溶剂。

使用方法:金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动设备上。

更多选择:可根据客户实际需要，特别定制。需要订购时欢迎来电咨询。

Guangzhou Jiaxin Electric Appliance Co., Ltd

Hotline: 020-36700481

company website: http://www.jx218.com

24h service hotline: 13728087739

Screw specification: metric thread M series.

Material: The main part of the joint is made of brass nickel plating, the clamping parts are made of nyon plastics (PA), andthe seals and O-rings are made of NBR.

Product Certification: European CE Certification, European ROHS Certification,European REACH Certificat

on Protection

Level: Within the prescribed clamp range, and the use of O-ring screw tight, to achieve IP68-10 bar pressure.

Working temperature: Static: - 40 ℃ to 100 ℃ , short time up to 120 ℃.

Dynamics:- 20 ℃ to 80 ℃ , short time up to 100C thread length: Short thread is suitable for thin machine plate opening or equipment with internal thread, long thread is

suitable for joining thick machine plate. Thread lengthening can be customized.

Product Characteristics: The design of special clamping claw and the concave-convex connection of clamping ring cansave time and convenience in assembling the clamping head. The clamping cable has wide scope, strong tensile force,water-proof, dust-proof, salt-proof, acid-alkali-proof, alcohol, grease and general solvents.

Usage: Metal cable waterproofing joint is the matching product of cable. Tne joint can lock the cable, the other end can beconnected to the equipment box,or according to the selection of threads, it can be connected to the electic equipment

with the import and export threads.

More choices: Customized according to customer's actual needs. Welcome to inquire when you need to order.

金属防水B型接头铜镀镍防水接头

公制螺纹M系列
