金属防水葛兰头T型不锈钢防水接头
公制螺纹M系列
咨询热线：020-36700481
24H服务热线：13728087739
螺牙规格:公制牙(Metric) 、G( PF）牙、PG牙及NPT牙。

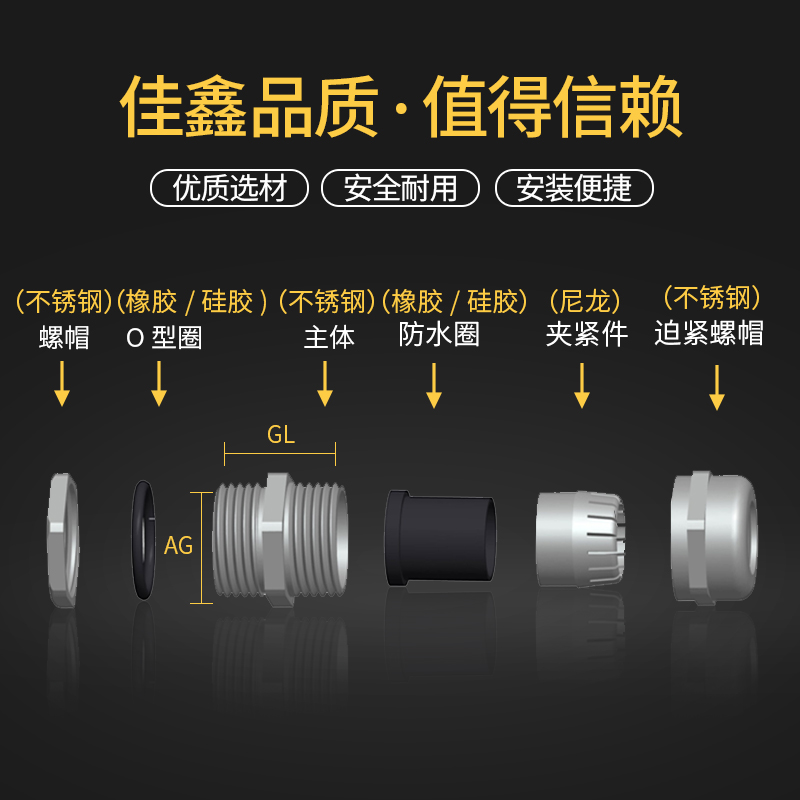

产品材质:A.C.F部分以黄铜镀镍/不锈钢/铝合金制成，部分以UL认可之尼龙PA66制成（可防火等级UL94V-2 )，B及D部分采用硅橡胶制成（可定制EPDM耐候橡胶)。
颜色种类:银色。
工作温度:-40℃-100℃。
产品特性:特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
多样出孔:有多个孔电源、电缆专用之出线设计，使每一个别之电缆得到防水绝缘，且不致相互纠缠。
Screw thread specification: metric thread, G (PF) thread, PG thread and NPT thread.
Product material: part a.c.f is made of brass nickel plating / stainless steel / aluminum alloy, part is made of UL approved nylon PA66 (fire rating UL94V-2), Part B and D are made of silicone rubber (EPDM weather resistant rubber can be customized).
Color category: silver.
Working temperature: - 40 ℃ - 100 ℃.
Product features: special clamping claw and clamping ring design, large clamping cable range, strong tensile resistance, waterproof, dustproof, salt resistant, weak acid resistant, alcohol, oil, grease and general solvents.
Multiple outlets: there are multiple outlets for power supply and cables, so that each individual cable can be waterproof and insulated without entanglement.
金属防水葛兰头T型不锈钢防水接头
公制螺纹M系列
| 产品编号Item.No. | 螺牙规格Thread | 适用电缆Φ（mm）Cable Range | 螺纹外径AG(mm) Thread O.D | 机板口径(mm) Panel Mounting Hole | 螺纹长度GL(mm) Thread length | 螺纹长度加长型（mm） Thread length | 接合长度(mm) Joint length | 扳手径(mm) Spanner Size |
| SBTM8-05 | M8x1.25 | 4--2 | 8 | 8-8.2 | 5 | 7 | 20.5 | 12 |
| SBT10-06 | M10x1.5 | 6.5--3 | 10 | 10-10.2 | 5 | 7 | 24.5 | 15/15 |
| SBTM12-06 | M12x1.5 | 6.5-3 | 12 | 12-12.2 | 7 | 10 | 25.5 | 15/15 |
| SBTM14-06 | M14x1.5 | 8--4 | 14 | 14-14.2 | 7 | 10 | 29.5 | 19/19 |

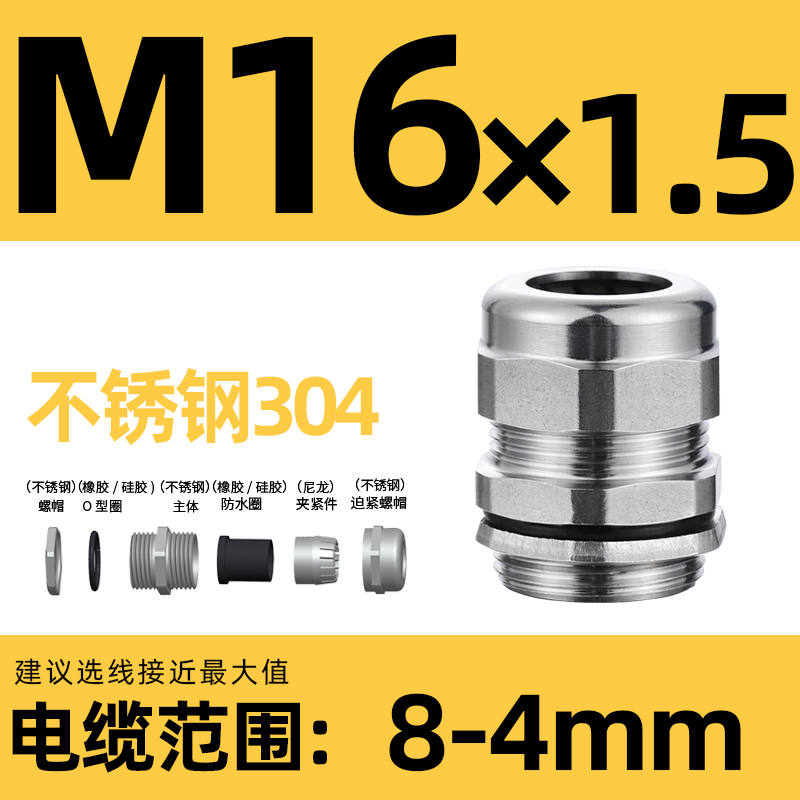

| SBTM16-08 | M16x1.5 | 8--4 | 16 | 16-16.2 | 8 | 10 | 27.5 | 19/19 |
| SBTM18-10 | M18x1.5 | 10--6 | 18 | 18-18.2 | 8 | 10 | 29.8 | 20/20 |
| SBTM20-12 | M20x1.5 | 12--8 | 20 | 20-20.2 | 8 | 15 | 32.5 | 23/23 |
| SBTM22-14 | M22x1.5 | 14--10 | 22 | 22-22.2 | 8 | 15 | 23 | 25/25 |
| SBTM24-14 | M24x1.5 | 14--10 | 24 | 24-24.2 | 9 | 15 | 25 | 28/28 |
| SBTM25-16 | M25x1.5 | 16--12 | 25 | 25-25.2 | 9 | 15 | 34.5 | 28/28 |
| SBTM27-18 | M27x1.5 | 18-13 | 27 | 27-27.2 | 9 | 15 | 35.5 | 30/30 |
| SBTM28-18 | M28x1.5 | 18-13 | 28 | 28-28.2 | 9 | 15 | 39.5 | 34/34 |
| SBTM30-18 | M30x1.5 | 18-13 | 30 | 30-30.2 | 9 | 15 | 40.5 | 34/34 |
| SBTM32-22 | M32x1.5 | 22-15 | 32 | 32-32.2 | 10 | 15 | 40.5 | 36 |
| SBTM33-22 | M33x1.5 | 22-15 | 33 | 33-33.2 | 10 | 15 | 41.5 | 36 |
| SBTM36-25 | M36x1.5 | 25-18 | 36 | 36-36.2 | 10 | 15 | 45 | 40 |
| SBTM37-25 | M37x1.5 | 25-18 | 37 | 37-37.2 | 10 | 15 | 45 | 40 |
| SBTM40-28 | M40x1.5 | 28-22 | 40 | 40-40.2 | 11 | 15 | 46.5 | 45 |
| SBTM42-28 | M42x1.5 | 28-22 | 42 | 42-42.2 | 11 | 15 | 46.5 | 45/43 |
| SBTM47-32 | M47x1.5 | 32-25 | 47 | 47-47.2 | 11 | 15 | 48.5 | 55 |
| SBTM48-32 | M48x1.5 | 32-25 | 48 | 48-48.2 | 11 | 15 | 48.5 | 55 |
| SBTM50-38 | M50x1.5 | 38-32 | 50 | 50-50.2 | 12 | 15 | 48.5 | 55 |
| SBTM54-38 | M54x1.5 | 38-32 | 54 | 54-54.2 | 12 | 15 | 50.5 | 58 |
| SBTM56-38 | M56x1.5 | 38-32 | 56 | 56-56.2 | 12 | 15 | 51.5 | 65 |
| SBTM60-44 | M60x1.5 | 44-37 | 60 | 60-60.2 | 13 | 15 | 51.5 | 65 |
| SBTM63-44 | M63x1.5 | 44-37 | 63 | 63-63.2 | 13 | 15 | 52.5 | 68 |
