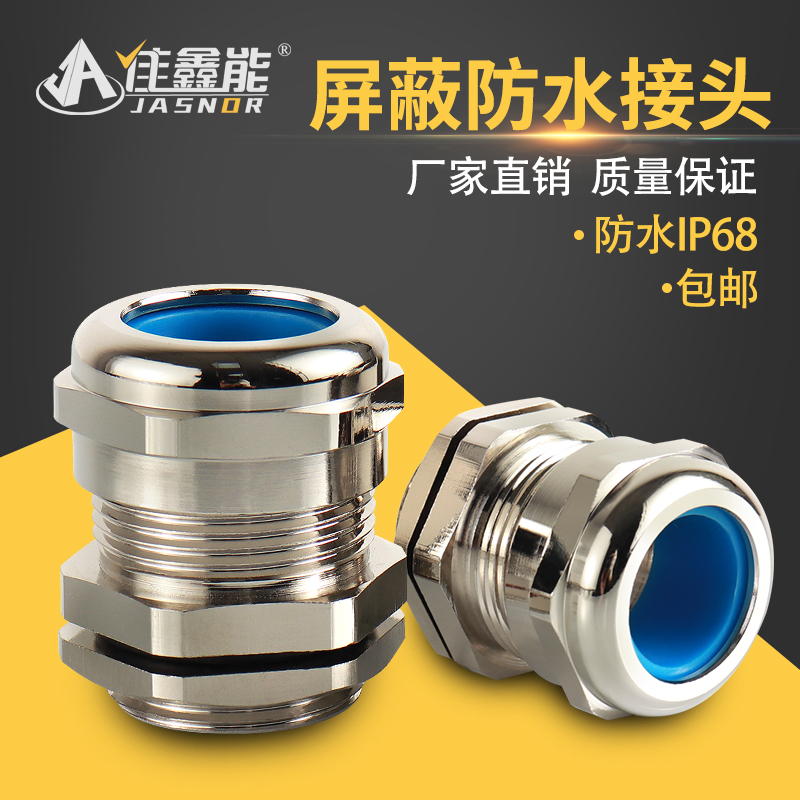

佳鑫能EMC电磁波屏蔽防水接头

广州佳鑫电器有限公司

咨询热线：020-36700481

公司网站：https://www.jx218.com

24H服务热线：13728087739

螺牙规格:

公制牙M(Metric ) ，符合欧盟规范。

产品材质:

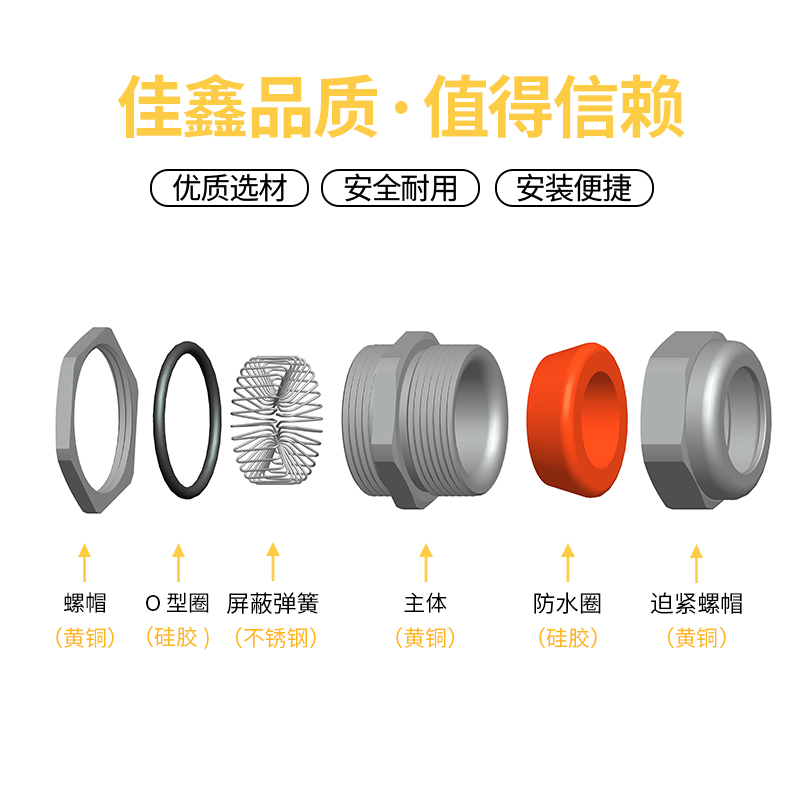

B,F部位采用黄铜镀镍制成，C采用不锈钢制成，D,A耐老化硅橡胶制成（可定制特殊橡胶材料)，E采用四氟乙烯制成。产品认证:欧洲CE认证、欧洲ROHS认证、欧洲REACH认证。防护等级:在规定的卡口范围内，并使用防水〇型圈及夹紧圈旋紧迫紧头，达到IP68。

工作温度:

静态:-40℃到100℃，短时间达120℃。动态:-20℃到80℃，短时间达100℃。

阻燃等级:

94v-o ( GB/T 2408-2008 ) 。

螺纹长度:

短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。

产品特性:

1.采用四氟垫片，减少橡胶面和金属面的摩擦，提高使用年限。

2.采用弹簧屏蔽，屏蔽接触面大、安装效率高。

3.内部橡胶采用硅胶制成，可满足产品在极寒的天气下正常运作。4.该款产品实现夹紧圈与电缆面接触密封，对电缆损伤小，可有效防止进入电机或控制器内部。

本产品经特殊设计，将金属电缆固定头当作是一个端体，当隔离线电缆进入本固定头时，可利用固定头内所附加的铜制屏蔽弹簧来与电缆线内的金属隔离编制网作接触，进而引导干扰的电磁波到接地线上，使电磁波干扰源得以疏散。本款铜制电缆固定头全方位尺寸能充分地被应用到所有需防磁波的出线领域上，并且扎实的提供防水 IP68与固定抗拉的效果。

Guangzhou Jiaxin Electric Appliance Co., Ltd

Hotline: 020-36700481

company website: http://www.jx218.com

24h service hotline: 13728087739

Screw specification metric M thread

Material: The parts B and Fare made of brass plated nickel, C is made of stainless steel, Dand A are made of agng resistantsilicone rubber (special rubber material can be customized), and Eis made of tetrafluoroethylene.

Product Certification: European CE Certfication, European ROHS Certification, European REACHCertification Protection

Level: Within the prescribed scope of the clamp, and the use of waterproof Oing and clamping ring to screw fight, to achieveiP68.

Working temperature: Static: - 40 ℃ to 100 '℃ , short time up to 120 ℃.Dyramics: - 20 ℃ to 80 '℃ , stort time up to 1o0 'cFlame Retardant Grade: 94v-O (GB/T 2408-2008)

Thread Lengith: Short threads are suitable for opening thin machine plates or equipments with interal treads.Long threads aresuitable for jpining thick machine plates. Thread lengthening can be customized.

Product characteristics: 1, Use of terafuoro gaskets, reduce friction between rubber and metal surfaces, improve service lfe.

2. Spring shielding is adiopted, which has large shieldng corntact surface and high inistallation efficiency.

3.The inner rubber is made of silica gel, which can satisfy the normal operation of the product in

extremely cold weather.

4. The product realizes the contact sealing between clamping ring and cable surface, which has itledamage to the cable and can effectively prevent it from entering the motor or controller.

This product is specally designed to reat the fixed end of the metal cable as an end body. When the isolation cable entersthe fixed end, the copper shieldng spring attached to the fived end can be used to contact the metal isolation network in the cable,and then guide the electromagnetic iwave of interference to the grounding lne, so that the clectromagnetic wave interference

source can be eracuated. This copper cable fing head can be fuly appled to all areas requiring magnetic wave protecton, andprovide waterproof IP68 and fixed tensile effect.
