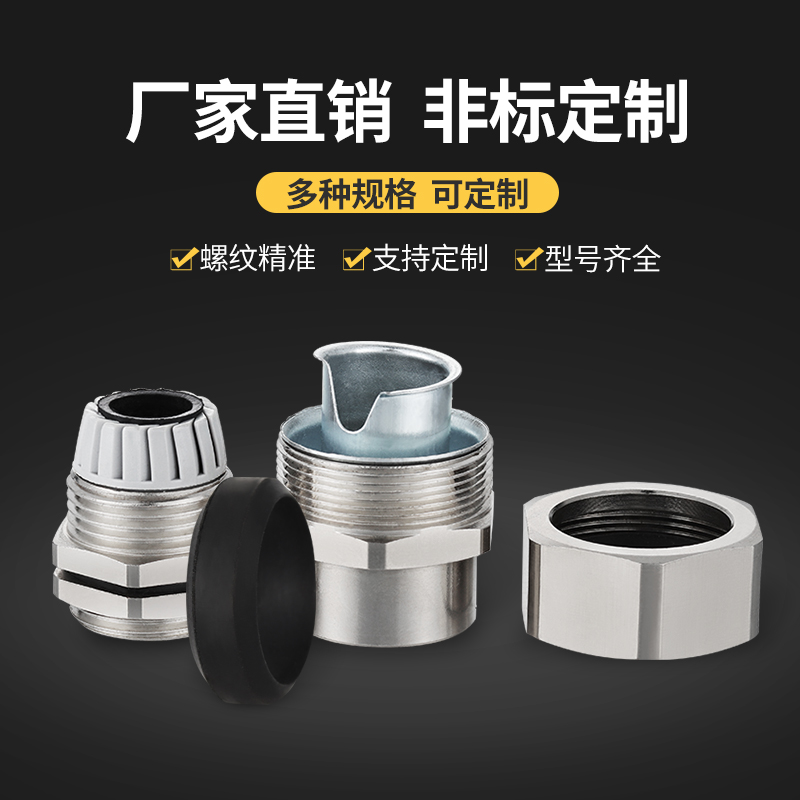

金属软管一体式电缆防水接头
公制螺纹M系列
咨询热线：020-36700481
24H服务热线：13728087739
螺牙规格:公制牙M(Metric)、德制牙PG、英制牙G(PF)，符合欧盟规范。
产品材质:D、A、F采用黄铜镀镍制成;内部E、D芯套为橡胶，G护套为锌铁。C部位密封套为弹性体PTEE。
防护等级:IP66
工作温度:静态:-40℃~ +100℃短时可达＋120℃动态:-20℃~+80℃，短时可达+100℃。
产品优势:配套锁紧式电缆接头,防电线松动,内锁扣和本体特殊设计，
装卸只需拔插，大大缩减了安装时间，夹紧电缆范围大抗拉力特强，产品有耐酸碱、耐化学物质与一般溶剂等抗腐蚀特性，可防水防尘，全方位的产品尺寸可广泛应用于各个领域的出线孔上。
Specification of screw teeth: metric teeth M, German teeth PG, British teeth G
Material: D, A,F are made of brass nickel plated; the inerE and D core sleeves are rubber, and the G sheath is zinc iron. TheC-part seal is an elastomer PTEE.
Protection Level: IP65
Working temperature: static: - 4O'℃ +100℃ , short-term up to + 120'℃ , dynamic:- 20'℃ +80℃ , short-term up to +100℃.Material: Matching with locking cable connector, anti-wire loosening, internal locking and special design of body, loading andunloading only need to be puled out and inserted, greaily reducing installation time, clamping cable with a wide range of strongtensile force, products with acid and alkali resistance, chemical resistance and gemeral solvent corrosion resistance, water-proofand dust-proof, all-round product size can be widely used in various fields of outlet hole.
金属软管一体式电缆防水接头公制螺纹M系列
| 编号 | 螺牙标准Screw tooth standard | 适用电缆Applicable cable | 配套金属软管Matching metal hose | 螺纹外径Thread diameter | 螺纹长度Thread length | 扳手径Wrench diameter | 包 装 | |
| ITEM NO | 公制（M） | Φ（MM） | 公制M | 英制G | AG | GL | (mm) Spanner Size | PCS |
| NOIOM16-8 | M16 × 1.5 | 4~8 | ?8 | 5/16″ | 16 | 7 | 22/18 | 50 |
| NOIOM16-8 | M16 × 1.5 | 6~10 | ?8 | 5/16″ | 16 | 8 | 26/24/18 | 50 |
| NOIOM18-10 | M18 × 1.5 | 6~10 | ?10 | 1/4″ | 18 | 8 | 27/24/22 | 50 |
| NOIOM20-12 | M20 × 1.5 | 8~12 | ?12 | 3/8″ | 20 | 8 | 27/24/22 | 50 |
| NOIOM22-16 | M22 × 1.5 | 10~14 | ?16 | 1/2″ | 22 | 8 | 30/27/24 | 50 |
| NOIOM24-16 | M24 × 1.5 | 10~14 | ?16 | 1/2″ | 24 | 8 | 34/30/28 | 50 |
| NOIOM25-16 | M25 × 1.5 | 12~16 | ?16 | 1/2″ | 25 | 8 | 43/40/34 | 50 |
| NOIOM27-20 | M27 × 1.5 | 13~18 | ?20 | 3/4″ | 27 | 8 | 43/40/34 | 50 |
| NOIOM30-20 | M30 × 1.5 | 13~18 | ?20 | 3/4″ | 30 | 8 | 43/40/34 | 20 |
| NOIOM32-20 | M32 × 2.0 | 15-22 | ?20 | 3/4″ | 32 | 8 | 43/40/35 | 20 |
| NOIOM36-25 | M36 × 2.0 | 18-25 | ?25 | 1″ | 36 | 9 | 45/43/40 | 20 |
| NOIOM40-32 | M40 × 2.0 | 24-30 | ?32 | 1-1/4″ | 40 | 10 | 52/45/43 | 20 |
| NOIOM50-38 | M50 × 2.0 | 32-38 | ?38 | 1-1/2″ | 50 | 10 | 60/55 | 10 |
