塑料双头防水接头
公制螺纹M系列
咨询热线：020-36700481
24H服务热线：13728087739

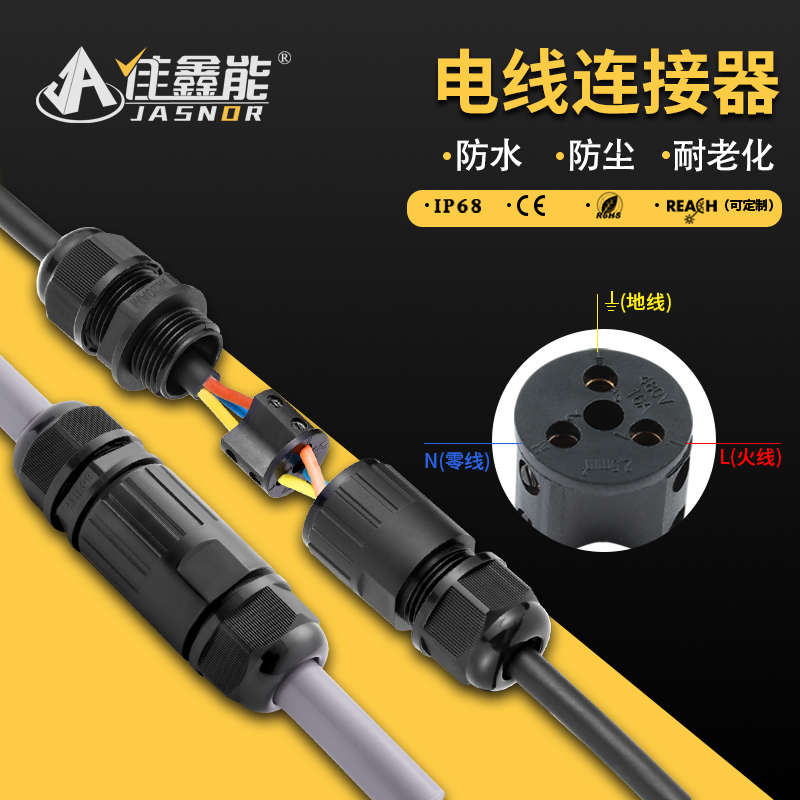

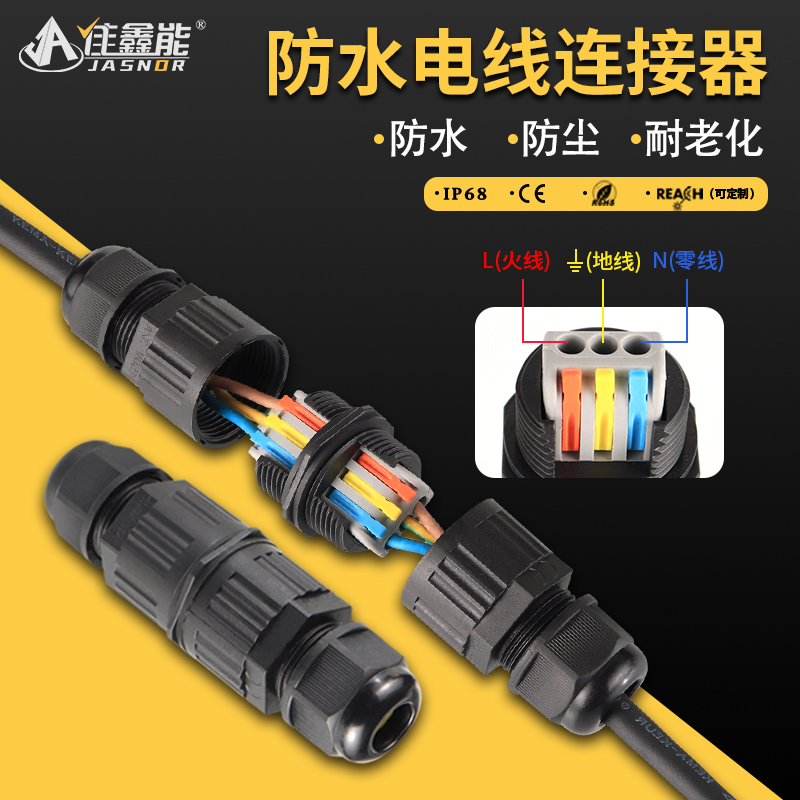

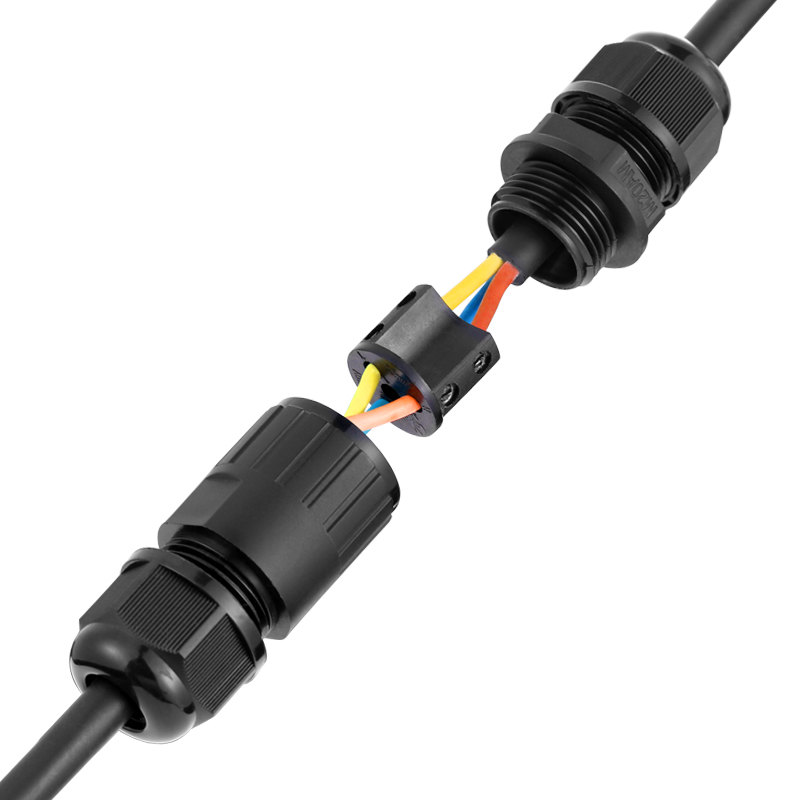

产品特性:精密美观的外形设计，中间接线可采用冷压端子，或者焊接包热缩套管。两端拧紧好固定盖帽后，拉力达到150N以上;防水气密性完美，并可持续性沉水20天，水深4米;多种内芯接线方式，能广泛应用于各种电缆连接场合。
应用领域:自动控制、电气、供电、网络、连接器、通讯设备、照明、监控器、地铁列车、新能源汽车、交通号志、侦测与测量仪器等各式设备的出线连接，提供密封防水与固定抗拉力。
1.产品外观及使用环境描述：
外观颜色:黑色
工作温度:-40℃~ 95℃
防水等级:IP68
储存温度:-45℃~95℃
大气压力:(86 ~ 106KPa)相对湿度:≤90%
2.产品性能
额定电压:2芯/3芯/4芯，400V AC/DC（有效值)耐压:4000V AC
过电压等级:Ⅲ材料等级:llb额定电流:32A
接线大线径:6.0mm2
3.产品结构描述
接线方法:螺丝压紧式插针材质:合金铜
螺丝材质及表面处理:铁,镀锌钝化防水橡胶:EPDM耐候橡胶/硅橡胶
Guangzhou Jiaxin Electric Appliance Co., Ltd
Hotline: 020-36700481
company website: https://www.jx218.com
24h service hotline: 13728087739
Product characteristics: Precision and beautiful shape design, the middle wing can be cold-pressed terminals, or welded packageheat shrinkable slieeve.Afer tightening the fived caps at both ends, the puling force reaches more than 150 Ny; the waterproof andair tghtnhess is perfect, and the water can sink contiruously for 20 days, and the water depth is 4 meters; a variety of wiring modeswith inner cores provide all-round products, which can be widely used in various cable connection occasions.
Applcations: Automatic control, electical power supply, networik connectors, communication equipment lighting, monitors, Metrotrains, new energy vehicles, traffic signs, detection and measurement instruments and other equipment outlt connections, toprovide the best sealing waterproof and fixed tensile strength.
1.Description of product appearance and usage environment
Appearance color: blackWorking Temperature - 40'℃ ~95'℃ Waterproof grade, IP68Storage Temperature: -45℃~95℃ Atmospheric Pressure: (86-106 KPa) Relative Humidity.<90%
2.Product performanceRated voltage: 2 cores/3 cores4 cores,400V ACDC (RMS)Voltage withstand: 4000v AC OvervoltageLevet: ll Material Grade:llb Rated current 32A Maximum wiring diameter: 6.0mm2.
3.Product Structure Description wiring method: screw compression type:Pin Material: Alby Copper Screw Material and SurfaceTreatment: lron, Galvanized Passivation Wateproof rubber EPDM weatherproof rubber/silicone rubber.
塑料双头防水接头
公制螺纹M系列
产品编号 ITEM NO | 螺牙规格 Thread | 适用电缆 D1 Ф(mm) | 适用电缆 D2 Ф(mm) | 螺纹外径 AG (mm) | 牙的 上紧扭力kgf.cm | 包装 Std.Pkg (pcs) |
| PLT-M20-08 | M20x1.5 | 4--8 | 4--8 | 19.7 | 10-12 | 50 |
| PLT-M20-10 | M20x1.5 | 7--10 | 7--10 | 19.7 | 10-12 | 50 |
| PLT-M25-08 | M25x1.5 | 5--8 | 8--12 | 24.7 | 20-23 | 50 |
| PLT-M25-12 | M25x1.5 | 8--12 | 8--12 | 24.7 | 20-23 | 50 |
| PLT-M25-14 | M25x1.5 | 10--14 | 10--14 | 24.7 | 20-23 | 50 |
| PLT-M25-12-14 | M25x1.5 | 10--14 | 8--12 | 24.7 | 20-23 | 50 |
