WorkHorse ballasts are expertly designed for maximum versatility. Dozens of lamp types can be operated in hundreds of combinations, so a contractor or electrician who carries WorkHorse ballasts can handle any situation without leaving the job site.

WorkHorse 镇流器经过精心设计，可实现最大通用性，它能驱动数十种灯管类型，组合方式可达数百种。因此携带该镇流器的承包商或电工无需离开现场即可应对各种照明的需求。

Versatile 多功能集成
Energy Saving 节能
High Power Factor 高效
Lightweight 轻量
Small Case Size 小尺寸
Solid-State Electronics ?固态电子架构

For lamp operation and wiring diagrams, use the Wiring Diagram Finder here, download the WorkHorse Lamp Chart here, or check the product spec sheets.

接线图链接：https://www.fulham.com/contact-us/wiring-diagrams

灯管带灯组合链接：https://www.fulham.com/PDFs/Fulham_Lamp_Chart-2022-June.pdf

120V Models
230V Models
277V Models

Common Specifications

ATHD: Meets ANSI C82.11-1993

Protection/Input 输入保护

Over Current: Fuse
Transient Protection: C62.41 Class A 7 Strikes
EMI: FCC CFR Title 47 Part 18 non-consumer

Protection/Output 输出保护

Open/Shorted Lamp
Regulatory Approvals: UL Listed Type1 or Type 2
High Power Factor: > .90
Open Circuit Voltage: 600 V RMS Max.
Ballast Lamp Starting Mode: Instant Start
Inherent Thermal Protection: Class P
Sound Rating A

120V WorkHorse Ballasts

Model Number	Input Voltage	Max Power (W)	Max Current (Amp)	Dimensions (Inches)	Configuration	Case Qty	Spec Sheet
WH1-120-L	120V	28	0.2	6 x 1 x 0.75	Linear case, side leads	90	Spec Sheet
WH2-120-C	120V	35	0.33	3.3 x 1.75 x 1	Compact case, side leads	50	Spec Sheet
WH2-120-L	120V	35	0.33	5.5 x 1 x 1	Linear case, side leads	50	Spec Sheet
WH22-120-C	120V	35	0.32	3.3 x 1.75 x 1	Compact case, side leads	50	Spec Sheet
WH22-120-L	120V	35	0.32	5.5 x 1 x 1	Linear case, side leads	50	Spec Sheet
WH3-120-C	120V	64	0.56	3.8 x 2.5 x 1	Compact case, side leads	60	Spec Sheet
WH3-120-L	120V	64	0.56	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH33-120-C	120V	64	0.53	3.8 x 3.1 x 1	Compact case, side leads	60	Spec Sheet
WH33-120-L	120V	64	0.53	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH4-120-L	120V	70	0.56	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH5-120-L	120V	128	1.15	8.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH6-120-L	120V	140	1.04	8.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH7-120-H	120V	220	1.82	11.75 x 3.25 x 1.25	H Can w/ magnetic footprint	16	Spec Sheet
WH7-120-L	120V	220	1.82	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet
WH8-120-L	120V	220	1.8	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet

230V WorkHorse Ballasts

Model Number	Input Voltage	Max Current (Amp)	Max Power (W)	Dimensions (Inches)	Configuration	Case Qty	Spec Sheet

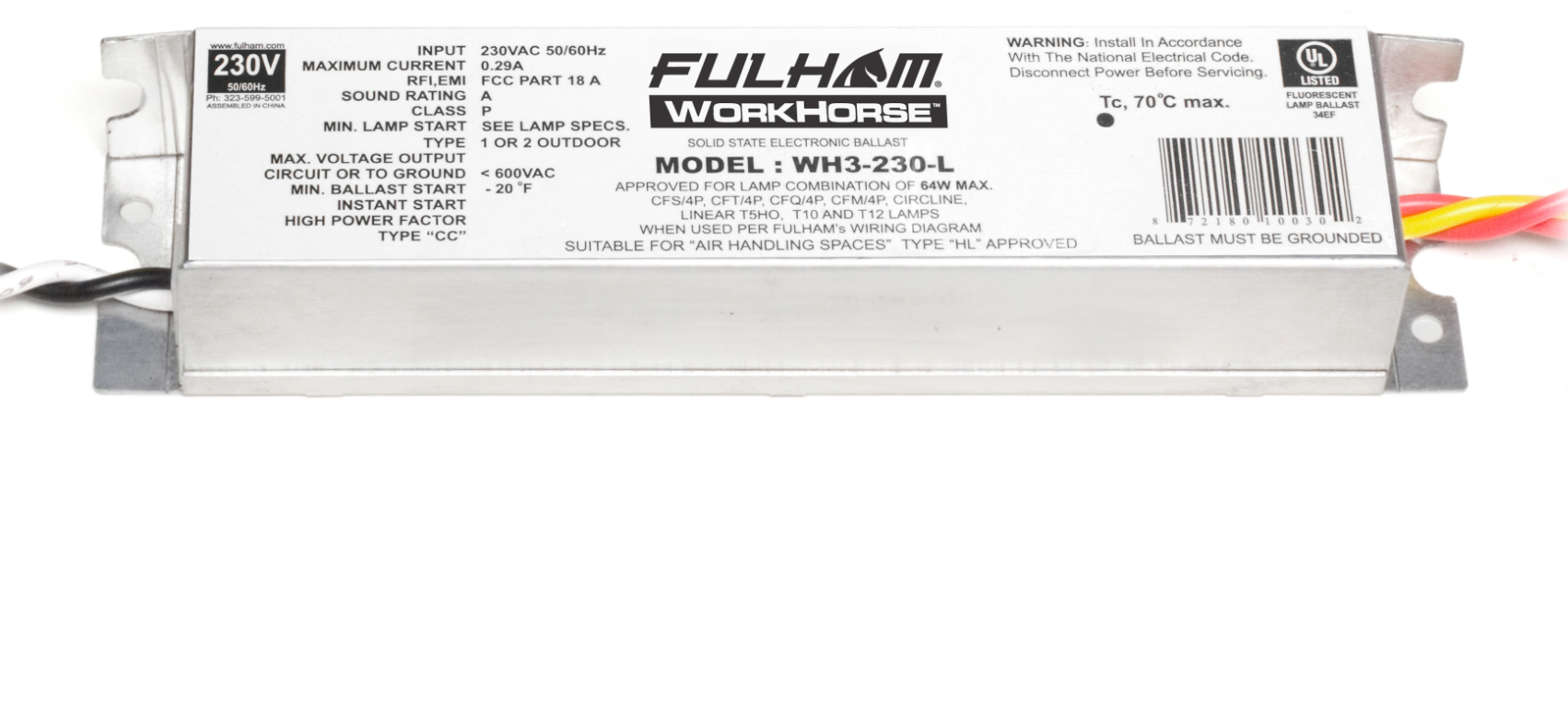

WH3-230-L	230V	0.29	64	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH5-230-L	230V	0.57	128	9.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH7-230-L	230V	1.10	220	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet
WH8-230-L	230V	1.01	222	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet

277V WorkHorse Ballasts

Model Number	Input Voltage	Max Current (Amp)	Max Power (W)	Dimensions (Inches)	Configuration	Case Qty	Spec sheet
WH2-277-C	277V	0.15	35	3.3 x 2.3 x 1	Compact case, side leads	50	Spec Sheet
WH2-277-L	277V	0.15	35	5.5 x 1 x 1	Linear case, side leads	50	Spec Sheet
WH3-277-C	277V	0.24	64	3.8 x 3.1 x 1	Compact case, side leads	60	Spec Sheet
WH3-277-L	277V	0.24	64	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH5-277-L	277V	0.48	128	9.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH6-277-L	277V	0.50	140	9.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
