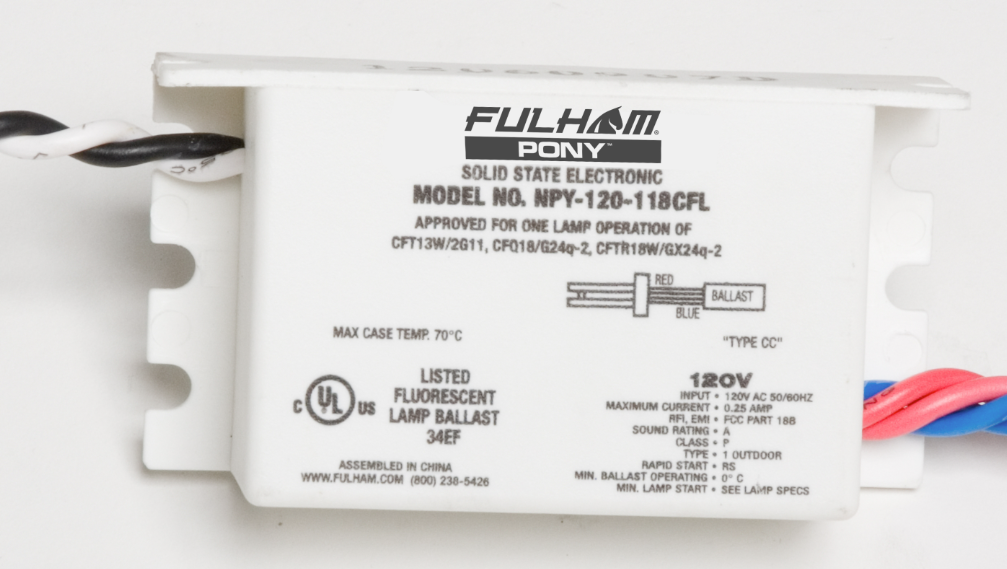

Pony Electronic BallastsCompact Fluorescent Lamp Electronic Ballasts - 120VPony, the utility ballast, was created in response to customer demand for an electronic ballast to compete closely in pricing with magnetic ballast systems while providing all the benefits of electronics: flicker-free operation, greater energy efficiency, cooler running, lighter weight and small, design-friendly packages. These solid-state electronic ballasts are engineered to perform efficiently with the lamps they operate, and meet FCC Part 18-A and 18-B. Pony ballasts are applicable for under-cabinet lighting, sconces, down lights, troffers,UV, fish tanks and more.为满足客户需求而研发的Pony电子镇流器，在保持与电感镇流器相近价格优势的同时，提供了电子技术的全部优势：无频闪运行、更高能效、低温工作、轻量化设计以及紧凑美观的外形。这些镇流器经过精密调校，能与配套灯具实现高效协同工作，并符合FCC Part 18-A和18-B标准。Pony镇流器适用于：橱柜灯、壁灯、筒灯、格栅灯、UV灯具、水族箱照明等多种应用场景。Product ModelsPony for CFLTechnical Details 技术详情Common SpecificationsOperating Voltage: 120VAC±10% or 230 VAC±10% 工作电压Starting type: Rapid start 启动方式：快速启动Starting temp: -14oF (-10oC) 启动温度：-10oCBallast Max Case Temperature: 158oF (70oC) 最大外壳温度：70oCTransient Protection: C62.41 Class A 7 strikes 瞬态保护Regulatory Approvals: UL cULus Listed Type 1 or Type 2 认证EMI: FCC CFR Title 47 Part 18 non-consumerSound Rating: A 声音等级：ACCF: 1.7Normal Power Factor .5Specification Sheets 产品说明书Specification SheetsNPY-120-118-CFLNPY-120-126-CFLNPY-120-218-CFLPony for CFLPrintExcelCSVCopyModel NumberOperates LampsDimensions (Inches)NPY-120-118-CFL1 x 13CFT/E, 18CFQ/E, 18CFTR/EH 1.03, W 1.76, L 3.36NPY-120-126-CFL1 x 18CFT/E, 24/27CFT/E, 26CFQ/E, 26CFTR/E, 32CFTR/E, 22CRT9H 1.02, W 2.39, L 3.36NPY-120-218-CFL2 x 13CFT/E, 18CFQ/E, 18CFTR/EH 1.02, W 2.39, L 3.36

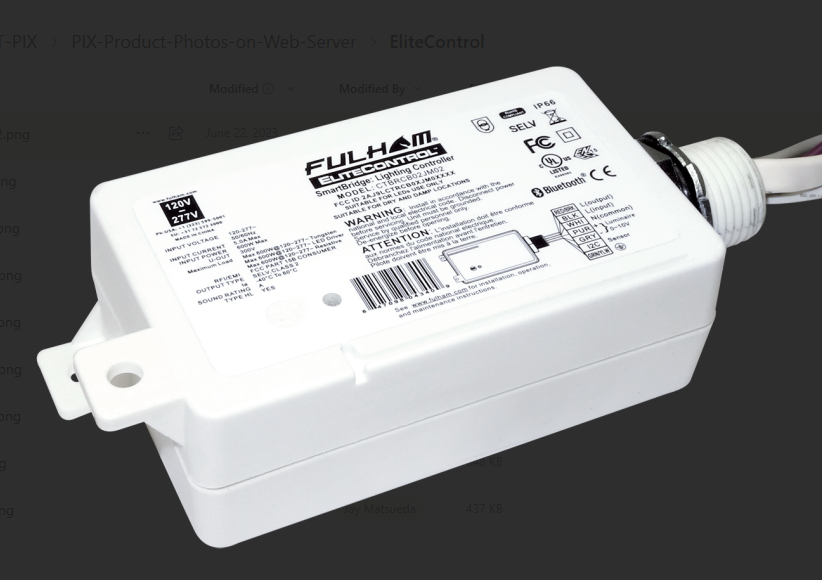

0-10V to Bluetooth SmartBridgeA simple, easy-to-install component that connects to an existing 0-10V driver to add SIG Qualified Bluetooth mesh capability. The SmartBridge is an ideal solution for manufacturers looking to develop their Bluetooth product lines or contractors seeking to provide wireless lighting options in the field. Compatible with Fulham’s eliteBlue commissioning software, which provides an intuitive set of tools for commissioning and monitoring qualified Bluetooth mesh lighting devices. Using simple web and iOS apps, users can easily customize lighting control parameters in accordance with site-specific needs and building energy codes.此系列产品是一款简单易装的组件，可连接现有0-10V驱动器，为其添加符合SIG认证的蓝牙Mesh功能。此SmartBridge 系列产品为制造商升级开发他们的蓝牙产品线，为工程商在现场轻松部署无线照明提供完美解决方案。兼容Fulham的 eliteBlue调试软件，提供直观的调试与监控工具。通过网页端和iOS应用，客户可轻松根据场地需求及建筑能效规范自定义照明控制参数Product Models Kits Accessories SpecificationsSpecificationsInput Voltage: 120-277VAC (UNV) 输入电压：通用120-277VACInput Frequency: 50/60Hz 输入频率Input Current: 5A Max 输入电流：最大5AInput Power: 600W Max 输入功率：600W最大Standby Power:1W 待机能耗 1WTransmission Range: 160ft. (50m) 传输范围：160ft. (50m)RF Communication Type: 2.4GHz Bluetooth mesh RF通信类型：2.4GHz蓝牙Mesh网络Ambient Temperature Range: -40°C to 60°C (-40°F to 140°F) 工作环境温度：-40°C to 60°C Max Case Temp.: 85°C (185°F) 最大外壳温度：85°CIP: 66 等级Input Surge Protection: Line-Neutral 6kV 输入浪涌保护：线-中性线6kVRFI/EMI: FCC Part 15A Consumer, EN55015 认证Approvals: cULus Listed, CE, SELV, ENEC, RoHS 认证Warranty: 5 years (See specification sheet for details) 质保：5年（详见Spec详情）Product ModelsPrintExcelCSVCopyModel NumberMax Load (W)Input current max (A)Input Voltage (VAC)IPFeaturesDimensions (L x W x H)Case QuantityDownloadsCTBRCB02JM026005UNV (120-277)66On / Off, 0-10V Dimming Control, Sensor Input5.17 x 2.26 x 1.2930Spec SheetInstallation InstructionsCTBRCB03JM03-PC6005UNV (120-277)66On / Off, 0-10V Dimming Control, Sensor Input, Color Control, Power Metering5.17 x 2.26 x 1.2930Spec SheetSmartBridge KitsIncludes everything needed for simple Bluetooth mesh retrofit: SmartBridge, Occupancy/Daylight Harvesting Sensor, and SwitchPrintExcelCSVCopyPDFModel NumberDescriptionDownloadsESB01KITT01A1 SmartBridge (CTBRCB02JM02), 1 sensor (ELIOPJX00SR), 1 single rocker switch (ESRPB-W-EO)Spec SheetESB01KITT01B1 SmartBridge (CTBRCB02JM02), 1 sensor (ELIOPJX00SR), 1 double rocker switch (EDRPB-W-EO)Spec SheetESB02KITT01A2 SmartBridges (CTBRCB02JM02), 1 sensor (ELIOPJX00SR), 1 single rocker switch (ESRPB-W-EO)Spec SheetESB02KITT01B2 SmartBridges (CTBRCB02JM02), 1 sensor (ELIOPJX00SR), 1 double rocker switch (EDRPB-W-EO)Spec SheetAccessoriesPrintExcelCSVCopyModel NumberDescriptionDimensionsCase QtyDownloadsEDRPB-W-EODouble Rocker EnOcean Switch for Bluetooth4.95 x 4.52 x 0.7224Spec SheetELIOPJX00LRLong-range PIR occupancy and daylight harvesting sensor for SmartBridge2.44 length x 1.65 diameter30Spec SheetELIOPJX00SRShort-range PIR occupancy and daylight harvesting sensor for SmartBridge2.44 length x 1.65 diameter30Spec SheetESRPB-W-EOSingle Rocker EnOcean Switch for Bluetooth4.95 x 3.21 x 0.7424Spec SheetBluetooth Commissioning Software and ManualFulham’s eliteBlue system is designed for simple planning, commissioning, and monitoring of Bluetooth mesh lighting devices. The eliteBlue web portal is used offsite to manage lighting installation projects, including mapping zones and setting up control scenarios. The eliteBlue mobile app for iOS is used onsite to commission devices and fine-tune installations.Fulham的eliteBlue 系统的开发是为蓝牙Mesh照明设备提供?简化规划、调试与监控的一体化解决方案。eliteBlue Web 门户支持区域外管理照明安装项目，包括地图映射，场景配置。eliteBlue 手机iOS APP 用于现场设备调试和安装微调。Access the eliteBlue web portalDownload the eliteBlue mobile app (Requires iOS -iPhone or iPad)Download the SmartBridge Quick Start GuideDownload the eliteBlue Commissioning ManualApplication Note: EnOcean Switches in Bluetooth ApplicationsApplication Note: Network Settings- Best practices for Relay nodes, EnOcean adapter and Mobile device proxyeliteBlue Software TutorialsFor walkthrough videos of Fulham’s eliteBlue Bluetooth commissioning software, visit our eliteBlue Tutorial Videos page.BrochureDownload Bluetooth mesh product brochureView Online

Bluetooth | eliteDALIBluetoothFulham’s SIG Qualified Bluetooth mesh drivers, sensors, and devices enable building system interaction and linkage through the cloud. For an overview of Fulham’s Bluetooth mesh solutions, including sensors, switches, and software, download the product flyer.Fulham符合SIG标准的蓝牙Mesh驱动器、传感器及设备，可通过云端实现建筑系统间的交互与联动。如需了解Fulham蓝牙Mesh解决方案（含传感器、开关及软件）的完整信息，请下载产品手册WorkHorse LED Connected Driver T2C1UNV150P-40LA 40W, 0-10V constant current driver with the unique ability to add Bluetooth connectivity by attaching an intelligent Bluetooth antenna. Compatible with third-party sensors, wall switches, and other devices, the connected driver serves as the core component for powerful, easy-to-expand connected systems.Learn more about the Connected Driver40W 0-10V恒流驱动器，此机型创新支持通过外接智能蓝牙天线实现无线连接功能，完美兼容第三方传感器、墙面开关及其他智能设备，作为可扩展智能系统的核心组件，支持构建高性能、易扩展的照明系统Bluetooth to 0-10V SmartBridge CTBRCB02JM02 0-10V 转蓝牙产品 A simple, easy-to-install component that adds SIG Qualified Bluetooth mesh capability to existing 0-10V drivers. The SmartBridge is an ideal solution for manufacturers looking to develop their Bluetooth product lines or contractors seeking to provide wireless lighting options in the field.Learn more about the SmartBridge该设备可为现有0-10V驱动设备添加SIG认证的蓝牙Mesh功能，实现无线智能控制。此SmartBridge产品为制造商快速开发蓝牙产品线提供解决方案，为工程商在现场轻松部署无线照明提供解决方案。Bluetooth to 0-10V SmartBridge CTBRCB03JM03 0-10V 转蓝牙产品 CTBRCB03JM03-PC is a Bluetooth fixture controller with color tuning and power metering capabilities. 600W Max Output. UNV 120-277VAC. IP66.Click Here for Spec SheetCTBRCB03JM03-PC是一款支持蓝牙控制的灯具控制器，具备色彩调节和功率计量功能，最大输出功率600W，输入电压范围120-277VAC，防护等级IP66IoT Bluetooth Gateway CTGATBPOEThe CTGATBPOE is the Fulham gateway that extends the mesh network with Internet access. It allows our partners to collect data from their Bluetooth mesh lighting networks and transmit them to the Fulham Cloud, from where it can be visualised and analysed. The CTGATBPOE also allows the partners to have control over lighting control functions.Click Here for Spec SheetCTGATBPOE 是 Fulham 推出的蓝牙 Mesh 网关设备，支持通过互联网扩展 Mesh 网络，允许合作伙伴通过蓝牙 Mesh 照明网络收集数据，并通过互联网上传至 Fulham Cloud 平台进行可视化与分析。CTGATBPOE 作为 Fulham 的蓝牙 Mesh 网关，还赋予合作伙伴对照明系统的远程控制能力

LED Retrofit UFO High Bay LuminaireFeaturesSuitable replacement for applications currently using 400W HID适用于替换现有400W HID的灯具应用DLC 5.1 Premium Listed DLC 5.1 Premium认证0-10V Dimmable; Dim to Off 支持0-10V调光，可调至完全关闭Power Selectable (240W default, 200W, 150W) 可选功率：默认240W, 200W, 150WCCT Selectable (4000K default, 5000K, 6500K) 可选色温：默认4000K, 5000K, 6500K60, 90, 120o standard lens 60°/90°/120°标准透镜可选Optional Occupancy/Daylight Harvesting Sensor 可选配人体感应器，日光采集模块Input Voltage 120-277VAC; 50/60 Hz 输入电压：120-277VAC; 50/60 HzHigh end trim: 50%, 75%, 100% via sensor remote高精度调光控制：通过传感器远程调节 50%, 75%, 100% 亮度IP65 防护等级Optional Fulham HotSpot Emergency capability with the FHSHB-347-40W-D支持 Fulham HotSpot应急照明功能（需搭配FHSHB-347-40W-D模块）LED Retrofit UFO High Bay LuminairePrintExcelCSVCopyModel NumberHousing ColorPower SelectableInput CurrentLumen Output @ 5000K / 80CRIAux OutputVGMUNV240HB84065B-90DBlack240W default, 200W, 150W2A @ 120VAC35,000 / 30,000 / 23,20012VDC, 200mA Max.VGMUNV240HB84065W-90DWhite240W default, 200W, 150W2A @ 120VAC35,000 / 30,000 / 23,20012VDC, 200mA Max.BrochureVividHorse Power- CCT- Selectable UFO-Style LED Retrofit for High Bay LuminairesDownload PDFView Online

14″ Round Universal Voltage LED Retrofit KitFeaturesLED Retrofit Kit Suitable for Canopy, Garage Luminaires此LED换装套组适用于遮阳棚和车库灯具Suitable replacement for applications using 70-250W HID适用于70-250W HID（金属卤化物灯）灯具换装应用Instant on/off, no cool down time needed 通电即亮，无需冷却等待时间External SPD for 10kV surge 防雷防护，10kV抗浪涌Integrated thermal management for optimal performance内置高效热管理系统，确保长期稳定运行cURus Recognized LED module 此LED模组通过cURus认证cULus Listed, Class P LED Driver 符合cULus认证 Class P等级14″ Round Universal Voltage LED Retrofit KitPrintExcelCSVCopyModel NumberDimmingBeam AngleLumen OutputInput CurrentInput PowerDocumentsVRMUNV036RD7yyA0-10V Dimming;100%-10%120°6,067 @ 4000K / 70 CRI0.34A (Max.)Typ. measurement 37WSpec SheetInstallation InstructionsPresentation PDFFlyerBrochures14′′ Round Universal Voltage LED Retrofit KitDownload PDF (11MB)View Online

LED Troffer Retrofit3 selectable power levels per Model 每个型号3种功率可选CCT Selectable (3500K-5000K) 可调色温 3500K-5000KVersatility lessens needed SKUs and reduces inventory carrying costs多兼容性设计减少SKU数量，降低库存成本Completely installed roomside to save time, money and hassles完整室内预装式设计，节省工时与人力成本Uncommonly high 90 CRI 超高显色指数 CRI≥90Suitable for 1’x4′, 2’x2’ and 2’x4′ luminaires 兼容1×4、2×2及2×4灯具Universal Voltage with 0-10V dimming 宽电压输入（120-277V），支持0-10V调光Meets CEC Title 24 JA10 符合CEC Title 24 JA10 标准Optional Occupancy Sensor 兼容感应器LED Troffer retrofit kits completely assembled within frame DLC ListedDLC认证预装式LED格栅改造套件UL 1598C, suitable for dry or damp locations 通过UL 1598C认证，适用于干燥/潮湿环境12VDC AUX output 提供12VDC辅助电源输出Installation Videos Here 点击此处安装视频Product ModelsLED Troffer RetrofitPrintExcelCSVCopyModel NumberMax Input Power (W)Lumens @4000KStandard CRIDimensions (inches)DownloadsVTR-14-MU-30-9TW-A303,7809047.8 L x 11.9 W x 3.09 HSpec SheetInstallation InstructionsSensor User GuideInstallation VideoVTR-22-MU-30-9TW-A303,7809023.8 L x 23.8 W x 3.09 HSpec SheetInstallation InstructionsPhotometric DataSensor User GuideInstallation VideoVTR-24-MU-45-9TW-A455,6709047.8 L x 23.8 W x 3.09 HSpec SheetInstallation InstructionsPhotometric DataSensor User GuideInstallation Video

LED Panel Retrofit LED面板灯换装套组3 selectable power levels per Model 每个型号支持3档功率可调CCT Selectable (3500K-5000K) 可选色温 3500K-5000KVersatility lessens needed SKUs and reduces inventory carrying costs多兼容性设计减少SKU数量，降低库存成本Completely installed roomside to save time, money and hassles完整室内预装式设计，节省时间，工时与人力成本Uncommonly high 90 CRI 超高显色指数 CRI≥90Suitable for 1’x4′, 2’x2’ and 2’x4′ luminaires 兼容1×4、2×2及2×4灯具Universal Voltage with 0-10V dimming 宽电压输入（120-277V），支持0-10V调光Meets CEC Title 24 JA10 符合CEC Title 24 JA10 标准LED Panel retrofit kits completely assembled within frame DLC ListedDLC认证预装式LED面板改造套件（含框架整体组装）UL 1598C, suitable for dry or damp locations 通过UL 1598C认证，适用于干燥/潮湿环境12VDC AUX output 提供12VDC辅助电源输出Product ModelsLED Panel RetrofitPrintExcelCSVCopyModel NumberMax Input Power (W)Lumens @4000KStandard CRIDimensions (inches)DownloadsVPR-14-MU-25-9TW-A2531509047.9 L x 11.9 W x 2.2 HSpec SheetInstallation InstructionsInstallation VideoEmergency Capability OptionVPR-22-MU-25-9TW-A2531509023.8 L x 23.8 W x 2.2 HSpec SheetInstallation InstructionsPhotometric DataInstallation VideoEmergency Capability OptionVPR-24-MU-36-9TW-A3645369047.8 L x 23.8 W x 2.2 HSpec SheetInstallation InstructionsPhotometric DataInstallation VideoEmergency Capability Option

Linear High Output LED Retrofit KitsFulham’s new LinearHO LED retrofit kits are ideal for use in linear highbays, vapor tights, troffers, and other linear luminaires. The 22″ and 44″ boards are mounted in aluminium extrusions to eliminate the need for additional heatsinking, with pre-installed magnets to simplify alignment and installation. The kits are listed on the DLC Qualified Products List for energy rebates, and include 0-10V drivers, modules, wiring harnesses, installation hardware, and UL labels, making them a simple, flexible solution for LED retrofit projects.Fulham 新型LinearHO LED换装套组适用于线性工矿灯、防爆灯、格栅灯及其他线性灯具的升级改造。22英寸/44英寸LED模组采用铝型材一体化散热结构，无需额外加装散热器。预装磁吸定位装置，实现快速精准对位。此换装套组入选DLC认证产品目录（可申请能源补贴），包含0-10V调光驱动、模块化组件、线束、安装五金件及UL认证标签。此系列产品为换装项目提供即装即用的标准化解决方案，兼具安装灵活性与系统兼容性。22″ Module Kits 44″ Module KitsModules only (non-kitted)Accessories FeaturesUniversal voltage (120V-277V) with high power factor and low THD宽电压120V-277V，高功率因数，低谐波cULus Classifed for field installation 通过cULus现场安装认证Multiple color temperatures: 3000K, 3500K, 4000K, 5000K多色温可选：3000K，3500K，4000K，5000KOptional lenses and ends caps available 配件兼容性：可选配透镜及端盖（兼容主流线性灯具结构）Listed on DLC Qualified Products List 入选DLC认证产品目录（可申请能源补贴）Warranty: 5 years 质保：5年SpecificationsSpecificationsInput Voltage: 100-277VAC (UNV) 输入电压Input Frequency: 50/60Hz 输入频率Dimming Type/Range: 0-10V, 100-10% 调光种类及范围：0-10V, 100-10%Available Color Temperatures: 3000K, 3500K, 40000K, 5000K可选色温：3000K, 3500K, 40000K, 5000KOperating Temperature Range: -40°C to 58°C / -40°F to 136°F工作温度范围：-40°C to 58°C Estimated Lumen Maintenance: L70: 60,000Hrs / L90: 40,000Hrs预估流明寿命：L70: 60,000小时 / L90: 40,000小时RFI/EMI: FCC Part 15B Consumer, EN55015 认证22″ Module KitsValues below reflect performance at 277VAC, 4000K unless otherwise specified.PrintExcelCSVCopyPDFModel NumberLED ModulesLED DriversInput Current 120V (A)Input Current 277V (A)System Power (W)System Lumens (lm)Efficiency (lm/W)Spec SheetVR22-MU-150-840-0350A or VR22-MU-150-840-0350B110.120.0513.72245164Spec SheetVR22-MU-250-840-0350A or VR22-MU-250-840-0350B210.110.0513.32266170Spec SheetVR22-MU-250-840-0700A or VR22-MU-250-840-0700B210.240.1127.14490166Spec SheetVR22-MU-250-840-1050A or VR22-MU-250-840-1050B210.350.1641.46634160Spec Sheet44″ Module KitsValues below reflect performance at 277VAC, 4000K unless otherwise specified.PrintExcelCSVCopyPDFModel NumberLED ModulesLED DriversInput Current 120V (A)Input Current 277V (A)System Power (W)System Lumens (lm)Efficiency (lm/W)Spec SheetVR44-MU-195-840-0700A or VR44-MU-195-840-0700B110.240.1127.24480165Spec SheetVR44-MU-295-840-0700A or VR44-MU-295-840-0700B210.240.1126.64460168Spec SheetVR44-MU-295-840-1050A or VR44-MU-295-840-1050B210.340.1540.26756168Spec SheetVR44-MU-295-840-1400A or VR44-MU-295-840-1400B210.450.2052.58960171Spec SheetVR44-MU-495-840-2400A or VR44-MU-495-840-2400B or VR44-MU-495-840-2400C410.750.3487.115404177Spec SheetAccessories 配件PrintExcelCSVCopyPDFModel NumberDescriptionTLC-HN0222” wire harness for 2 modules in Parallel (included with VR22/VR44 kits)TLC-HN0422” wire harness for 3 or 4 modules in Parallel (included with VR22/VR44 kits)TLEOPT120-00422” snap-on lens, 82% transmissivityTLEOPT120-01344” snap-on lens, 82% transmissivityTLEOPT120-020Module end caps, 2 piecesSpec Sheets and Documentation22″ Module Kits (VR22-MU-xxx-8yy-xxxxz) 说明书及安装指导Spec SheetInstallation Instructions- 1×2 Vapor TightInstallation Instructions- 2×2 Troffer44″ Module Kits (VR44-MU-xxx-8yy-xxxxz)说明书及安装指导Spec SheetInstallation Instructions- 1×4 HighbayInstallation Instructions- 1×4 TrofferInstallation Instructions- 1×4 Vapor TightInstallation Instructions- 2×4 TrofferInstallation Instructions- 2×4 Vapor TightBrochureLinear HO Retrofit Kits BrochureDownload PDFView Online
