WorkHorse ballasts are expertly designed for maximum versatility. Dozens of lamp types can be operated in hundreds of combinations, so a contractor or electrician who carries WorkHorse ballasts can handle any situation without leaving the job site.

WorkHorse镇流器专为卓越的多功能性而设计。可支持数十种灯管类型，并实现数百种组合方式，因此携带WorkHorse镇流器的电工或承包商无需离开作业现场，即可应对任何情况。

Versatile 多功能
Energy Saving 节能
High Power Factor 高功率因数
Lightweight 轻量
Small Case Size 小尺寸
Solid-State Electronics 固态电子

For lamp operation and wiring diagrams, use the Wiring Diagram Finder here, download the WorkHorse Lamp Chart here, or check the product spec sheets.

120V Models
230V Models
277V Models

Technical Details

Common Specifications

ATHD: Meets ANSI C82.11-1993

Protection/Input 保护/输入

Over Current: Fuse 过流：Fuse
Transient Protection: C62.41 Class A 7 Strikes 瞬态保护
EMI: FCC CFR Title 47 Part 18 non-consumer 非消费类

Protection/Output 保护/输出

Open/Shorted Lamp 开路/短路保护
Regulatory Approvals: UL Listed Type1 or Type 2
High Power Factor: > .90 高功率因数
Open Circuit Voltage: 600 V RMS Max. 开路电压：600 V RMS Max
Ballast Lamp Starting Mode: Instant Start 镇流器灯管启动方式：快速启动
Inherent Thermal Protection: Class P 固有热防护：Class P
Sound Rating A 声音等级：A

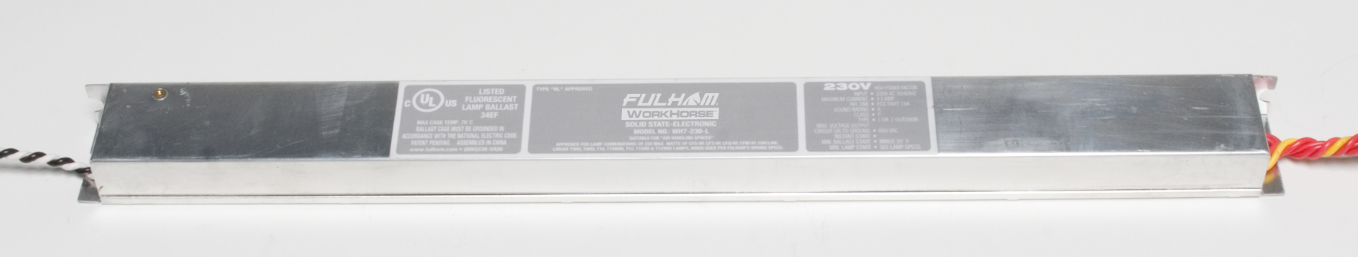

120V WorkHorse Ballasts

Model Number	Input Voltage	Max Power (W)	Max Current (Amp)	Dimensions (Inches)	Configuration	Case Qty	Spec Sheet
WH1-120-L	120V	28	0.2	6 x 1 x 0.75	Linear case, side leads	90	Spec Sheet
WH2-120-C	120V	35	0.33	3.3 x 1.75 x 1	Compact case, side leads	50	Spec Sheet
WH2-120-L	120V	35	0.33	5.5 x 1 x 1	Linear case, side leads	50	Spec Sheet
WH22-120-C	120V	35	0.32	3.3 x 1.75 x 1	Compact case, side leads	50	Spec Sheet
WH22-120-L	120V	35	0.32	5.5 x 1 x 1	Linear case, side leads	50	Spec Sheet
WH3-120-C	120V	64	0.56	3.8 x 2.5 x 1	Compact case, side leads	60	Spec Sheet
WH3-120-L	120V	64	0.56	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH33-120-C	120V	64	0.53	3.8 x 3.1 x 1	Compact case, side leads	60	Spec Sheet
WH33-120-L	120V	64	0.53	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH4-120-L	120V	70	0.56	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH5-120-L	120V	128	1.15	8.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH6-120-L	120V	140	1.04	8.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH7-120-H	120V	220	1.82	11.75 x 3.25 x 1.25	H Can w/ magnetic footprint	16	Spec Sheet
WH7-120-L	120V	220	1.82	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet
WH8-120-L	120V	220	1.8	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet

230V WorkHorse Ballasts

Model Number	Input Voltage	Max Current (Amp)	Max Power (W)	Dimensions (Inches)	Configuration	Case Qty	Spec Sheet
WH3-230-L	230V	0.29	64	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH5-230-L	230V	0.57	128	9.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH7-230-L	230V	1.10	220	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet
WH8-230-L	230V	1.01	222	19.25 x 1.7 x 1	Linear case, side leads	25	Spec Sheet

277V WorkHorse Ballasts

Model Number	Input Voltage	Max Current (Amp)	Max Power (W)	Dimensions (Inches)	Configuration	Case Qty	Spec sheet
WH2-277-C	277V	0.15	35	3.3 x 2.3 x 1	Compact case, side leads	50	Spec Sheet
WH2-277-L	277V	0.15	35	5.5 x 1 x 1	Linear case, side leads	50	Spec Sheet

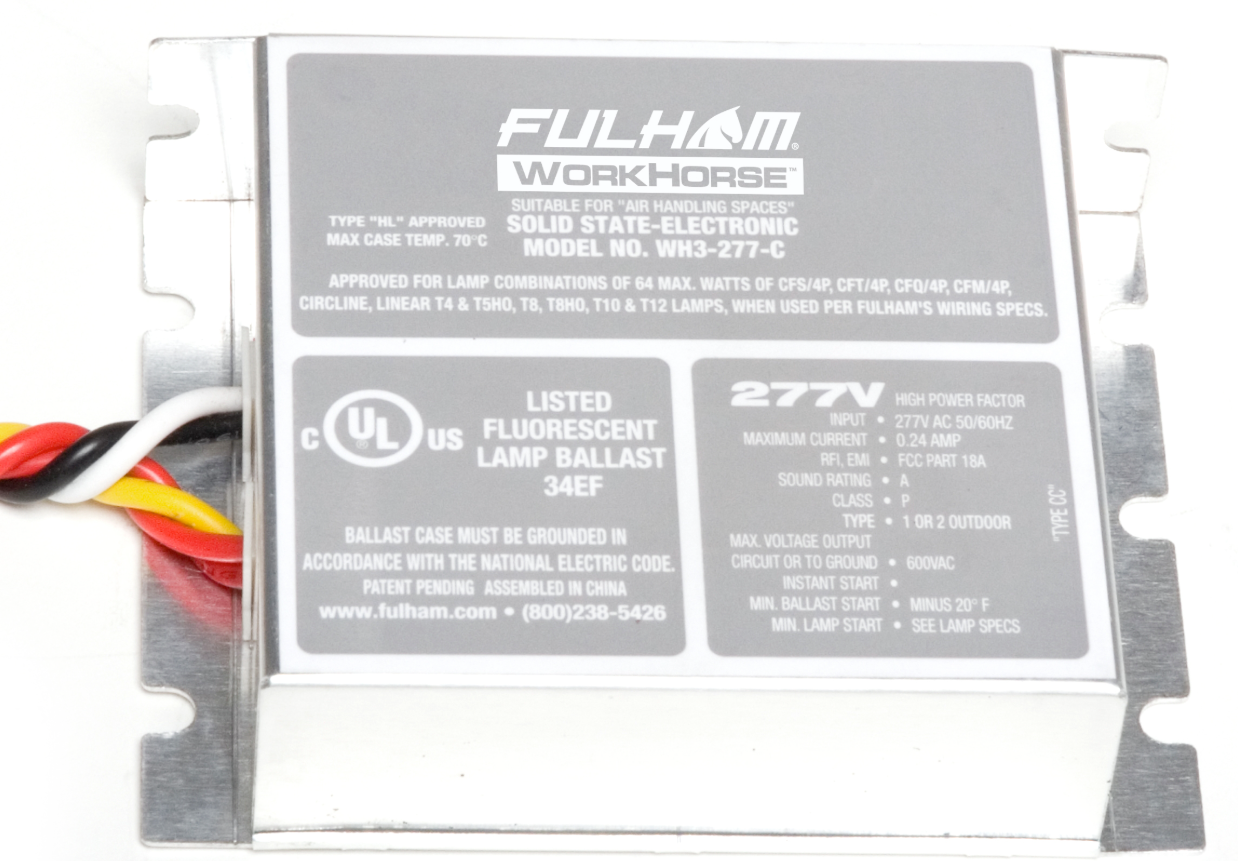

WH3-277-C	277V	0.24	64	3.8 x 3.1 x 1	Compact case, side leads	60	Spec Sheet
WH3-277-L	277V	0.24	64	6.5 x 1.5 x 1	Linear case, side leads	50	Spec Sheet
WH5-277-L	277V	0.48	128	9.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
WH6-277-L	277V	0.50	140	9.5 x 1.7 x 1	Linear case, side leads	50	Spec Sheet
