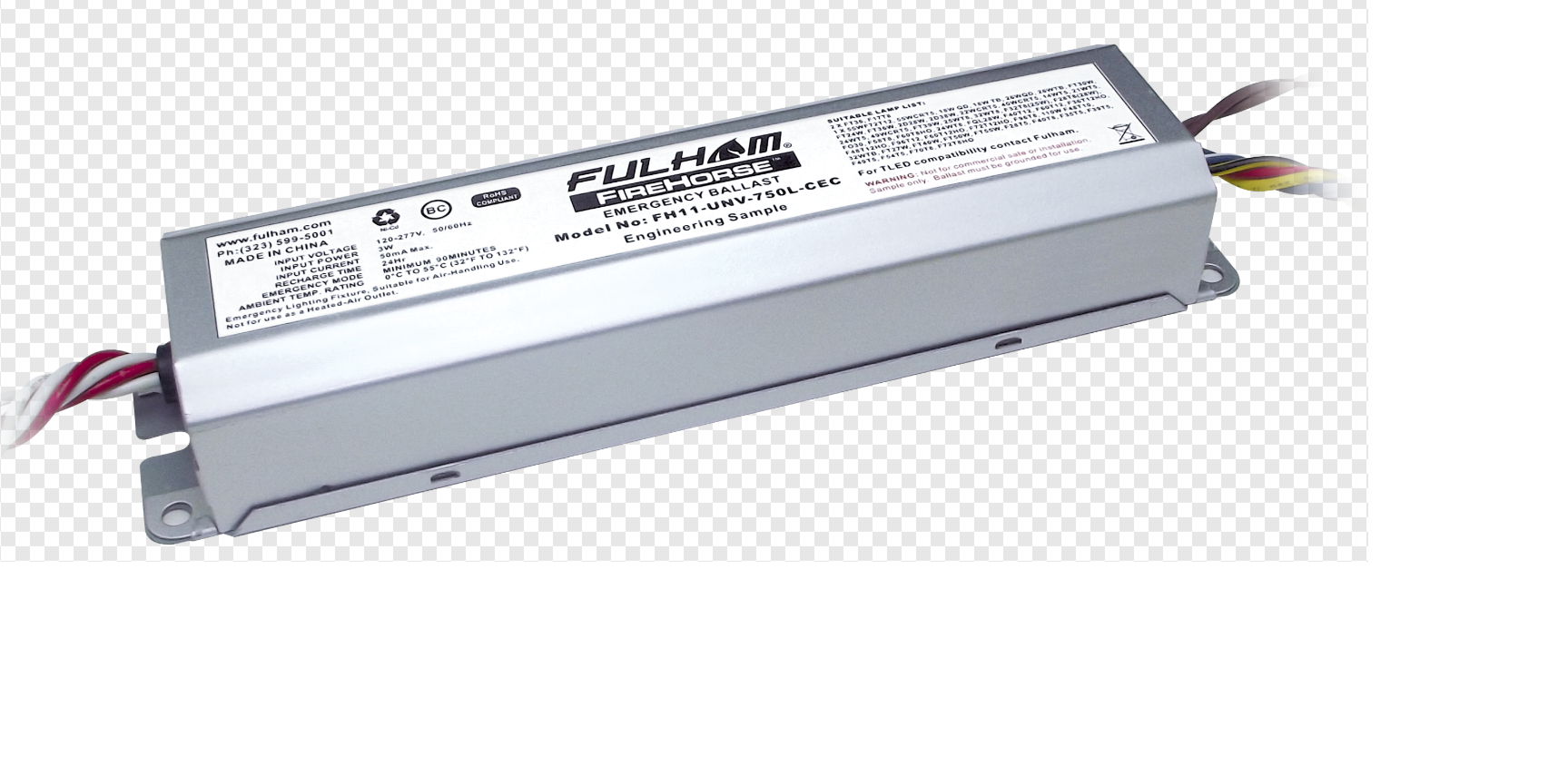

FireHorse fluorescent emergency ballasts provide at least 90 minutes of reliable illumination during power outages. They are compatible with a wide range of fluorescent lamps and a growing selection of common TLEDs, and feature universal voltage, CEC Title 20 Compliant models that draw less than 1W in standby mode. The low profile design allows for integral mounting in the factory or field.

FireHorse荧光应急镇流器在断电时提供至少90分钟可靠照明，满足消防应急照明标准要求。支持多种荧光灯及主流TLED灯具，通用电压范围，适配不同应用场景需求。CEC Title 20合规型号待机功耗＜1W，实现能源节约。超薄设计支持工厂预装或现场安装，简化安装流程。

• Wide range of lamp and ballast compatibility 支持多种荧光灯，适配不同应用场景需求

• CEC Title 20 Compliant models available 符合CEC Title 20

• UL listed for damp locations  UL认证适用于潮湿场所

• Integrated LED power indicator/test switch 集成LED电源指示灯/测试开关，实现快速状态监测

• Factory or field installation 支持工厂预装或现场安装

Specifications

Common Specifications

• Operating Voltage (FH4): Dual 120V or 277V 电压范围

• Operating Voltage (FH7, FH11, FH12): UNV 120-277V 电压范围

• Frequency: 50/60hz 频率：50/60hz

• Regulatory Compliance: Meets or Exceeds N.E.C./LSC 合规性：符合或超过N.E.C./LSC

• Test Switch/Indicator: LED Push Button 测试开关：LED按钮

• Fixture Wiring: Switched Or Unswitched 出线：切换式或非切换式

• Minimum Emergency Operation: 90 Minutes 最小应急时间：90 分钟

• Minimum Required Charging Time: 24 Hours 最短充电时间：24小时

• Battery Type: High Temp., Long Life Rechargeable Ni-Cd

  电池种类：高温，长寿命，可充电镍铬电池

Product Models

PrintExcelCSVCopyPDF

Lamp Operation

PrintExcelCSVCopyPDF

Wallplate for Remote Mount Test Switch

Part number: FHSWLPWH

Allows remote mounting of test switch for FireHorse emergency ballasts.

Brochures & Spec Sheets

Brochures – Literature

• FireHorse Emergency Ballasts Product Brochure

Specification Sheets

• FH4-DUAL-700L

• FH7-UNV-500L-CEC

• FH11-UNV-750L-CEC

• FH12-UNV-1400L-CEC
