• Multiple Constant Power Options: Available in 5W, 10W, 15W, and 20W configurations to suit diverse emergency lighting needs based on luminaire wattage or mounting heights

  多款恒压产品可选（5W/10W/15W/20W），适用多种流明瓦数，匹配不同安装高度的应急照明需求。

• Compact Design: Features smaller form factors compared to competitors, allowing for versatile and streamlined integration

  体积较同类更缩减，能够实现多种灵活集成。

• Wide Input Voltage Range: Supports 100-347VAC or 120-480VAC, providing flexibility for various installations and regions

  宽电压范围：支持100-347VAC 或 120-480VAC，为多种安装场所和不同安装区域提供多种可能性

• Self-Diagnostic Functionality: Built-in self-testing feature (with the option to disable) ensures consistent performance monitoring and compliance with safety standards

  自检功能：自我检测周期30天，确保持续监控，使其符合安全标准。

• Emergency Battery Disengage (EBD) Feature: Allows safe and efficient battery disconnection for extended shelf life

  应急电池的EBD功能：可实现电池存储和运输时的安全高效断电，从而延长电池的使用寿命。

• Compliance: UL Listed, CEC title 20, RoHS, IP20, Dry/Damp location rated

  合规性：UL Listed, CEC title 20, RoHS, IP20, 干湿场所适用

Product Models 产品型号

PrintExcelCSVCopy

Product Literature

Field-Installable, Remote-Mountable Emergency Constant Power LED Drivers with Conduit

• Download PDF

• View Online

FireHorse Hotspot Constant Power LED Emergency Drivers: Lumen Reference Chart

• Download PDF

• View Online

Field-Installable, Remote-Mountable Constant Power LED Emergency Drivers

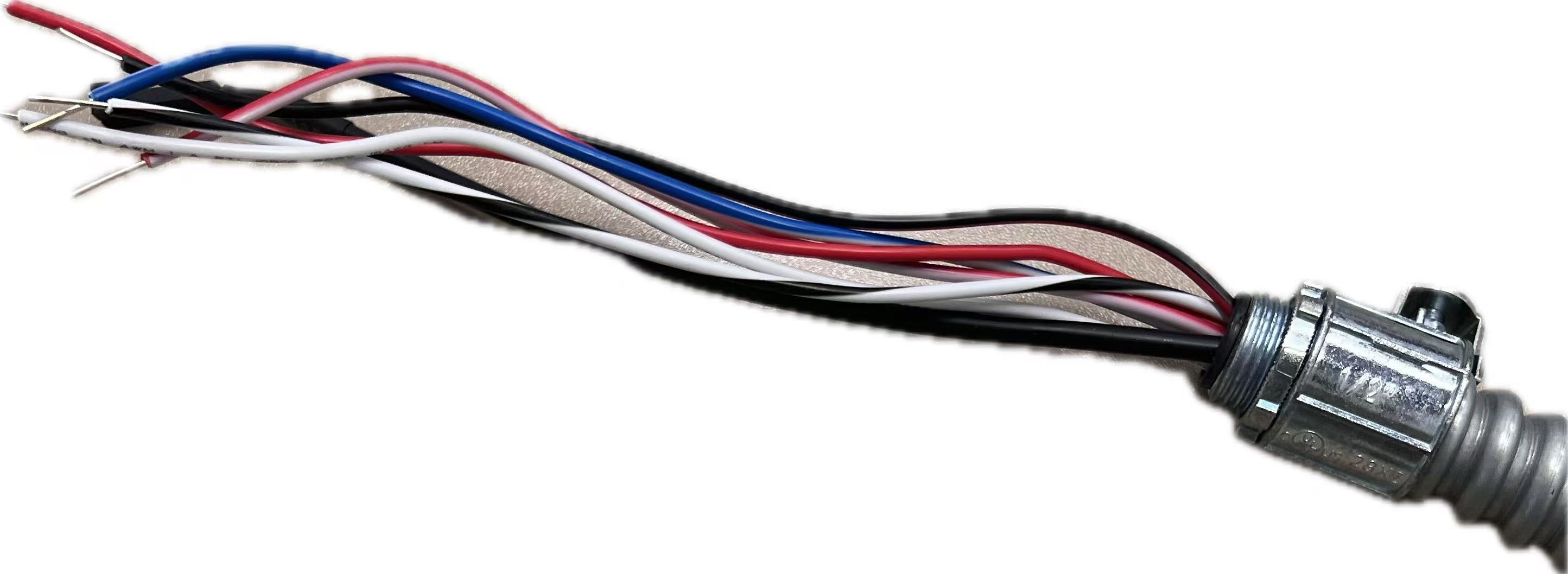

Fulham’s HotSpot Constant Power emergency drivers bring field-installable backup power to LED luminaires. With the emergency driver and battery combined in a single unit, this innovative emergency system can be installed in the field in minutes. Ideal for LED flat panels, the Constant Power design guarantees the desired lumen output for emergency operation. The driver is designed for flexibility, with multiple mounting options, a conduit feed, and illuminated LED test switch. All standard models are now CEC Title 20 compliant for use in California.

Fulham的HotSpot系列恒压应急驱动给LED照明带来可现场安装的备用电源解决方案。创新驱动电池一体化的设计，可在数分钟内完成现场安装。适配于LED面板灯等照明设备。恒压的设计保证了应急运行时的稳定流明输出。此产品自带多种安装选项，配备导线管接口和带LED指示灯的测试开关。全系标准型号符合CEC Title 20法规，满足加利福尼亚州应用要求。

To find the model that meets your lumen output requirements, try our Lumen Reference Chart.

Product Models ?

For Programmable Constant Power Solutions for OEMs click here ?

Common Specifications

• Input Voltage: UNV 120-277VAC 输入电压：通用120-277VAC

• Input Frequency: 50/60Hz 输入频率：50/60Hz

• Output Voltage: 20-50VDC 输出电压：20-50VDC

• Illumination time : Minimum 90 Minutes 照明时间：最低90分钟

• Recharge Time: 24 Hrs 充电时间：24小时

• Ambient Temperature: 0° – 50° 工作温度：0° - 50°

• Compatible Battery Type: NiCd  电池种类：镍铬电池

• Output Type: Class 2 输出等级：Class 2

• Surge Protection: C62.41 (MOV) 浪涌保护： C62.41 (MOV)

• RFI/EMI: FCC Part 15A Non-Consumer  RFI/EMI: FCC Part 15A Non-Consumer

• Warranty: 5 Years  质保5年

• CEC Title 20 compliant: Yes

Model	Output Power (W)	Output Lumens (based on 160 lm/W)	Output Current (mA)	Approvals	Downloads
FHSCP-UNV-5WL	5.00	800	90-500	11.5 x 2.6 x 1.5	cULus Classified, CEC Title 20	Spec Sheet Installation Instructions
FHSCP-UNV-7.8WL	7.80	1250	140-780	15.4 x 2.6 x 1.5	cULus Classified, CEC Title 20	Spec Sheet Installation Instructions
FHSCP-UNV-10.7WL	10.70	1700	195-1007	15.4 x 2.6 x 1.5	cULus Classified, CEC Title 20	Spec Sheet Installation Instructions
FHSCP-UNV-13.7WL	13.70	2200	250-1370	19.2 x 2.6 x 1.5	cULus Classified, CEC Title 20	Spec Sheet Installation Instructions
FHSCP-UNV-17WL	17.00	2700	300-1700	19.2 x 2.6 x 1.5	cULus Classified, CEC Title 20	Spec Sheet Installation Instructions

Product Literature

HotSpot Constant PowerLED Emergency System(FLYER-HS-CP)

• Download PDF

• View Online

HotSpot Constant PowerLumen Reference Chart(FLYER-HS-CP)

• Download PDF
