Pony, the utility ballast, was created in response to customer demand for an electronic ballast to compete closely in pricing with magnetic ballast systems while providing all the benefits of electronics: flicker-free operation, greater energy efficiency, cooler running, lighter weight and small, design-friendly packages. These solid-state electronic ballasts are engineered to perform efficiently with the lamps they operate, and meet FCC Part 18-A and 18-B. Pony ballasts are applicable for under-cabinet lighting, sconces, down lights, troffers, UV, fish tanks and more.

Pony电子镇流器是应市场需求而研发的产品，旨在提供价格与电感镇流器系统相媲美的电子镇流解决方案，同时具备电子技术的全部优势：无频闪运行、更高能效、低温工作、轻量化设计以及紧凑美观的外形。这些电子镇流器经过精心设计，能与配套灯具高效协同工作，并符合FCC Part 18-A和18-B标准。Pony镇流器适用于橱柜灯、壁灯、筒灯、格栅灯、UV灯具、水族箱照明等多种应用场景。

Product Models    产品型号

• Sugarcubes for T5, T8, T12

• Sugarcubes for CFL

• Sugarcubes for UV Lamps

• Sugarcubes for 230V Lamps

Technical Details  技术参数

Common Specifications

• Operating Voltage: 120VAC±10% or 230 VAC±10% 工作电压

• Starting type: Rapid start 快速启动

• Starting temp: -14oF (-10oC) 启动温度

• Ballast Max Case Temperature: 158oF (70oC) 镇流器最大外壳温度：70度

• Transient Protection: C62.41 Class A 7 strikes 瞬时保护

• Regulatory Approvals: UL & cULus Listed Type 1 or Type 2 认证

• EMI: FCC CFR Title 47 Part 18 non-consumer 非消费级

• Sound Rating: A 声音等级

• CCF: < 1.7

• Normal Power Factor > .5

Sugarcubes for T5, T8, T12

PrintExcelCSVCopy

Sugarcubes for CFL

PrintExcelCSVCopy

Sugarcubes for UV Lamps

PrintExcelCSVCopyPDF

Sugarcubes for 230V Lamps

PrintExcelCSVCopy

Specification Sheets 产品说明书

Specification Sheets

• SC-120-108-LT5

• SC-120-113-CFL

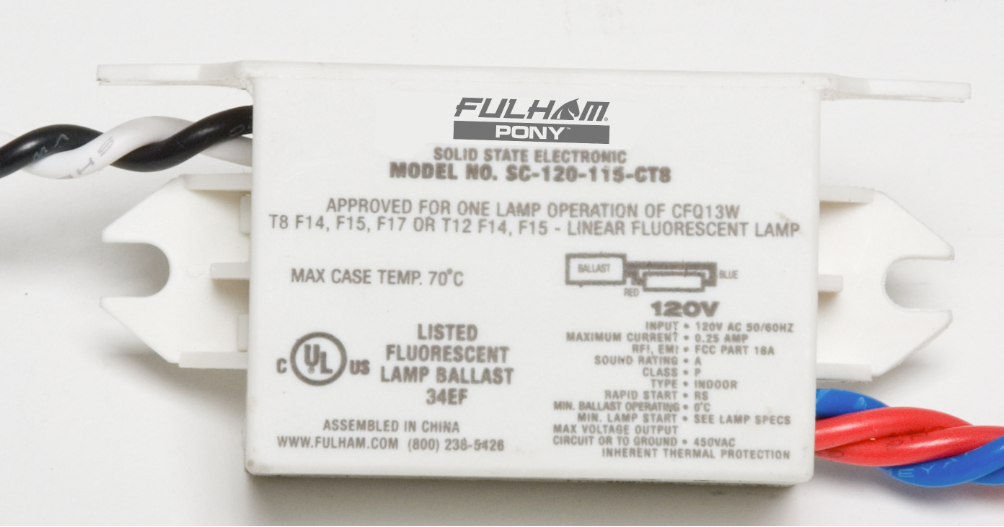

• SC-120-115-CT8

• SC-120-115-T8XL

• SC-120-132-T8XL

• SC-120-213-LT5

• SC-120-287-CUV

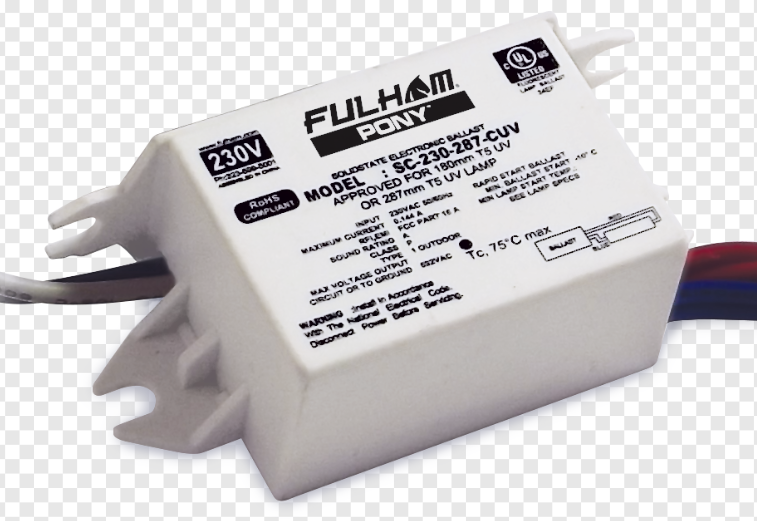

• SC-230-287-CUV

• SC-230-113-CFL
