Programming Guide

Fulham Smartset Programming Fulham 编程器

The TPSB-100 SmartSet controller gives the user the power to set a number of parameters of compatible WorkHorse LED and HotSpot LED Drivers. Current, voltage, DMX address, dimming curve, LED group, terminal resistor, and lowest dimming percentage can all be customized to the user’s needs.

TPSB-100 SmartSet 控制器让客户可以对兼容的 WorkHorse LED 和 HotSpot LED 驱动器进行多项参数设置。客户可根据需求自定义电流、电压、DMX 地址、调光曲线、LED 组、终端电阻和最低调光百分比等参数。

Fulham’s TPSB-100 is powered via a USB cable that can connect either to a PC or wall power with the included adapter. The programming cable then makes a simple contact with connectors on the LED driver to transmit the desired settings. When used with a PC, Fulham’s SmartSet software provides additional programming ability.

Fulham的TPSB-100控制器通过USB线缆供电，可连接电脑或使用随附适配器连接墙电。编程线缆只需与LED驱动器上的接口简单接触，即可传输设定参数。当连接电脑使用时，Fulham的SmartSet软件可提供额外的编程功能。

For additional information, please see the links below: 更多信息，可以点击以下链接。

White paper overview of the SmartSet programming system (less than 1MB)

Download TPSB-100 SmartSet Controller User Manual (less than 1MB)

Download Programming Instructions and Design Guide (less than 1MB)

Download SmartSet software (5MB)System requirements:1GHz CPU, 512MB RAM, USB Port 2.0/3.0.Supported Windows OS versions:Windows XP SP2 and above (32 & 64 bit), Windows Vista/Windows 7 (32 & 64 bit), Windows 8 (32 & 64 bit)

SmartSet software installation instructions

SugarCube Tri-Dim Compact Programmable Drivers (SCCC)

方形，Tri 调光，紧凑，可编程LED驱动

0-10V/TRIAC dimming
Compact Case form Factor

Model Number	Input Voltage, Frequency	Output Wattage (W)	Output Current Range (mA)	Default Output Current (mA)	Output Voltage Range	Dimming Type	Dimming Range	Dim-to-Off	AUX Output (VDC/mA)	NTC	IP Rating
SCCC-2U1UNV180P-65C	120-277V, 50/60Hz	65	500-1800	1,800	10-54VDC	0-10V/Phase@120VAC	100%-3%, 0%	Yes	No	No	IP20	4.98 x 2.37 x 1.05

WorkHorse Specialty Grade (WHSG)

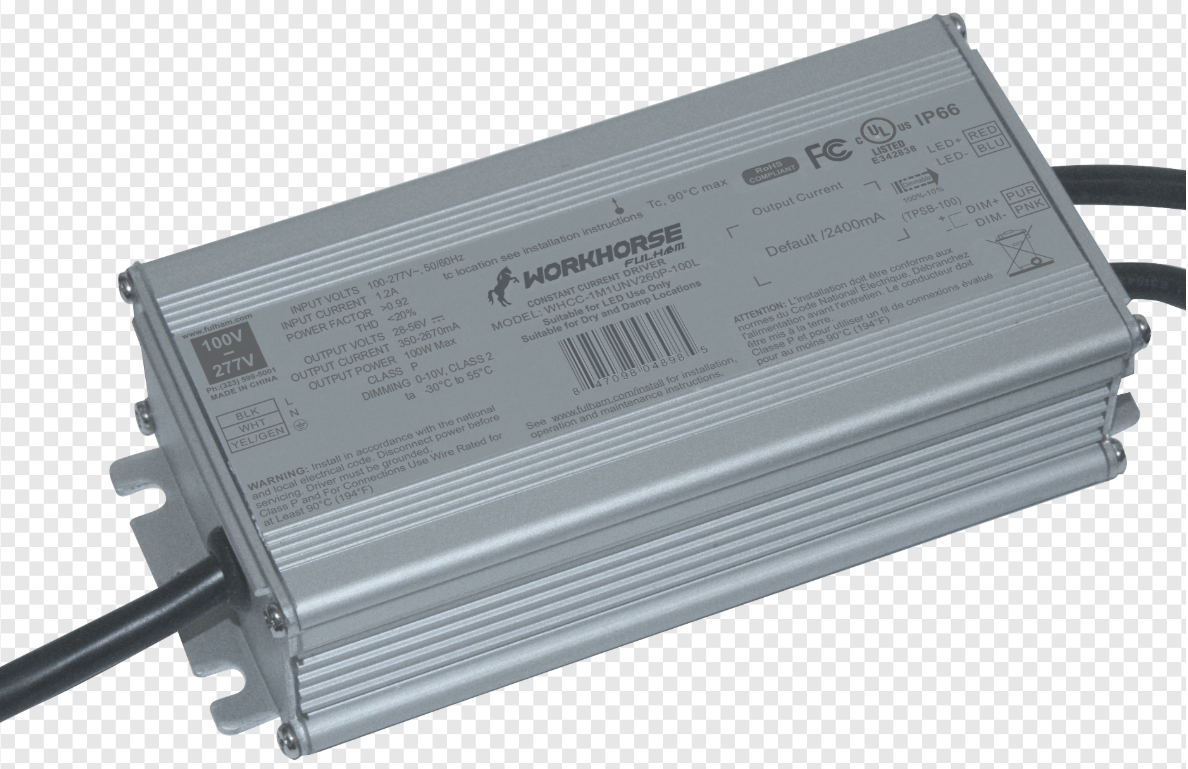

Non-Class 2 Programmable Outdoor LED Drivers (TPSB-100 SmartSet Handheld)
非Class 2可编程户外LED驱动器，可搭配TPSB-100型号手持编程器
Multiple options per wattage – different output current and voltage
多输出瓦数-- 不同输出电流和电压
IP66, Type HL, dry and damp locations
Input Surge Protection: Line-Neutral 6KV, Line & Neutral-Ground 10KV 输入浪涌保护
0-10V Dimmable, 100%-10% 0-10V调光
4 different form Factors 4种不同规格
IP67 option available – Leadtime and MOQ applies

Model Number	Input Voltage, Frequency	Output Wattage (W)	Output Current Range (mA)	Default Output Current (mA)	Output Voltage Range	Dimming Type	Dimming Range	Dim-to-Off	AUX Output (VDC/mA)	NTC	IP Rating

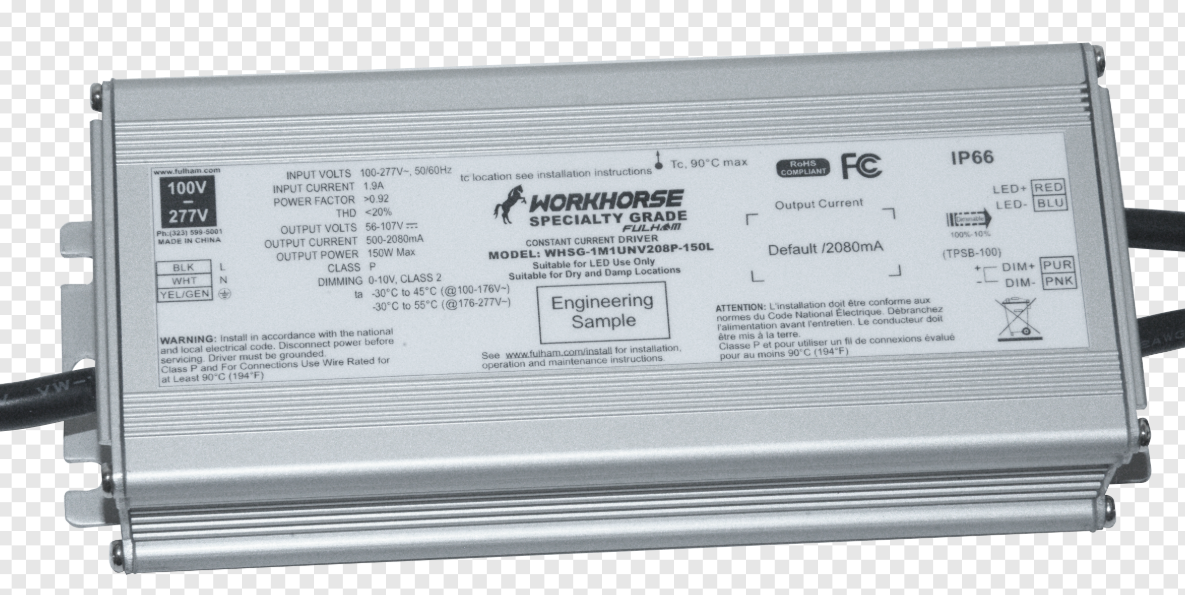

WHSG-1M1UNV069P-100L	100-277V, 50/60Hz	96	500-690	690	96-102VDC	0-10V	100%-10%	No	No	No	IP66	5.71 x 2.6 x 1.44
WHSG-1M1UNV100P-150L	100-277V, 50/60Hz	150	350-1000	1,000	107-214VDC	0-10V	100%-10%	No	No	No	IP66	6.5 x 2.6 x 1.44
WHSG-1M1UNV105P-75L	100-277V, 50/60Hz	75	350-1050	1,050	53-107VDC	0-10V	100%-10%	No	No	No	IP66	5.71 x 2.6 x 1.44
WHSG-1M1UNV110P-200L	100-277V, 50/60Hz	200	350-1100	1,100	143-286VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV110P-240L	100-277V, 50/60Hz	240	350-1100	1,100	171-342VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44

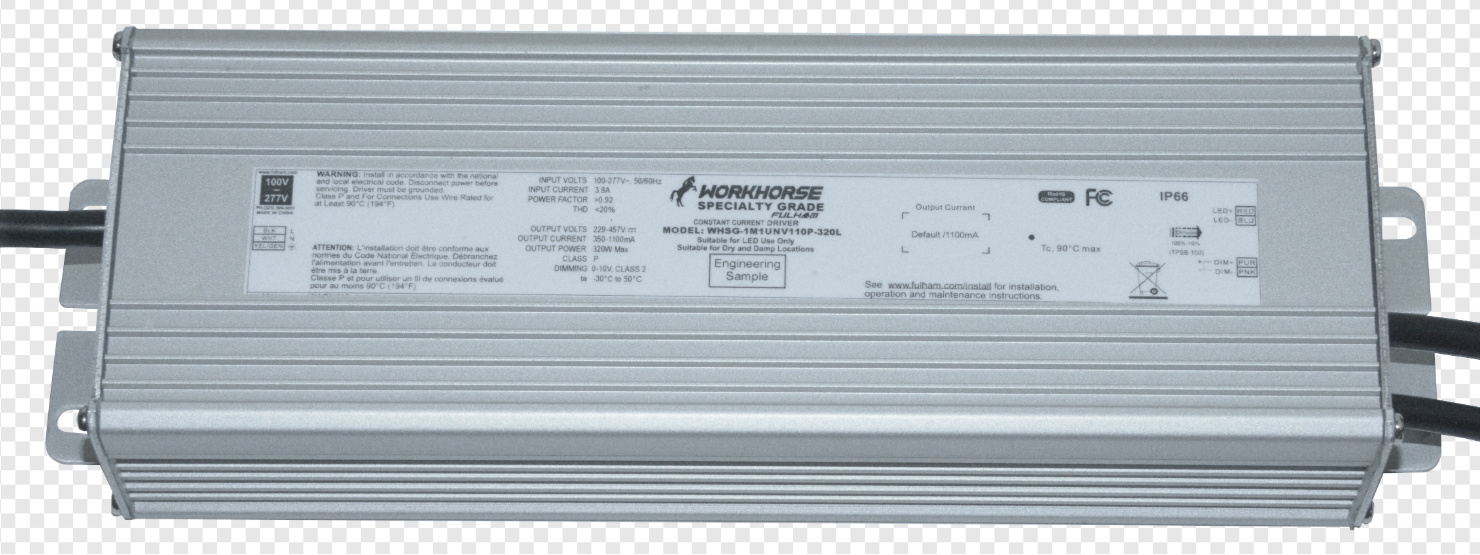

WHSG-1M1UNV110P-320L	100-277V, 50/60Hz	320	350-1100	1,100	229-457VDC	0-10V	100%-10%	No	No	No	IP66	9.57 x 2.99 x 1.63
WHSG-1M1UNV140P-100L	100-277V, 50/60Hz	96	350-1400	1,400	53-107VDC	0-10V	100%-10%	No	No	No	IP66	5.71 x 2.6 x 1.44
WHSG-1M1UNV210P-150L	100-277V, 50/60Hz	150	500-2100	2,100	56-107VDC	0-10V	100%-10%	No	No	No	IP66	6.5 x 2.6 x 1.44

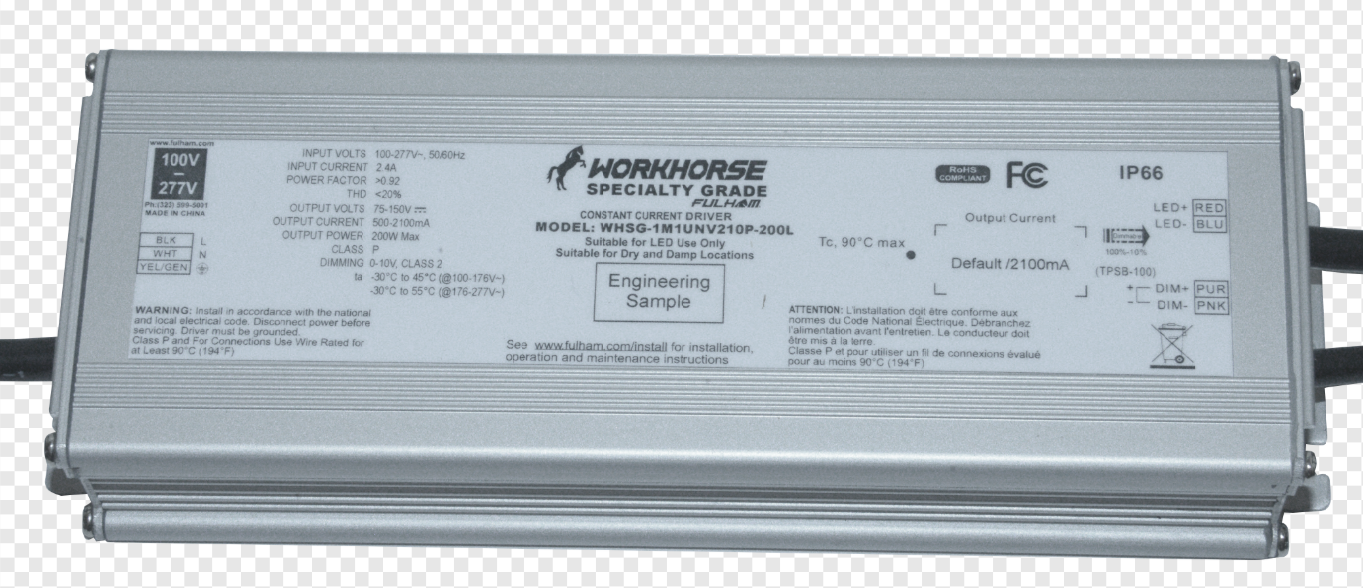

WHSG-1M1UNV210P-200L	100-277V, 50/60Hz	200	500-2100	2,100	75-150VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV210P-240L	100-277V, 50/60Hz	240	500-2100	2,100	90-180VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV210P-320L	100-277V, 50/60Hz	320	500-2100	2,100	120-240VDC	0-10V	100%-10%	No	No	No	IP66	9.57 x 2.99 x 1.63
WHSG-1M1UNV420P-150L	100-277V, 50/60Hz	150	700-4200	4,200	28-56VDC	0-10V	100%-10%	No	No	No	IP66	6.5 x 2.6 x 1.44
WHSG-1M1UNV560P-200L	100-277V, 50/60Hz	200	700-5600	5,600	28-56VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV670P-240L	100-277V, 50/60Hz	240	700-6700	6,700	28-56VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV760P-320L	100-277V, 50/60Hz	320	1500-7600	7,600	30-60VDC	0-10V	100%-10%	No	No	No	IP66	9.57 x 2.99 x 1.63

HighHorse Series for High Bay applications (HHCC)

HighHorse 系列高棚灯工业应用

120-277VAC Input, Power and CCT Selectable UFO High-Bay Driver
120-277VAC 输入，功率和CT可选，UFO 高棚LED驱动
5.04” D x 2.42” H, Mounting 4.45″ 尺寸
Non-Isolated Driver, Non-Class 2 Output 非隔离驱动，非Class 2输出
Factory Set Output Current: 850mA-1200mA (900mA Default)
工厂可设定输出电流：850mA-1200mA (900mA Default)
cULus Listed, Class P, IP65, Type HL 认证
Dimmable: 0-10V, 100%-10%, 0% 调光
Power Selectable: 3-Level (100%, 80%, 60%) 功率可选：3档 (100%, 80%, 60%)
CCT Selectable: 3-Level (CW, MW, WW) CCT色温可选：3档 (CW, MW, WW)
Aux Output: 12V/0.2A Aux 辅助输出接口：12V/0.2A Aux
EMI: FCC Part 15B
Input Surge protection: L-N 6kV, L&N-G 6kV 输入浪涌保护
Warranty: 5 years 质保：5年

Model Number	Max Output?Power (W)	Output Current?Range (mA)	Default Output Current (mA)	Output Voltage?Range (VDC)	Aux Output (VDC/mA)	Programmer Type	IP Rating	Certifications	Dimming Type	Dimming Range	Dim-to-Off	NTC	US, CN, Class 2
HHCC-1M2UNV1200-240D-AFC	240	850-1200	900	180-260	12/200	Factory Set	65	cULus Listed, Class P	0-10V	100%-10%, 0%	Yes	No	No
