主要技术参数：最大持续工作电压(Uc） 277 VAC额定工作电压 220 VAC标称冲击电压（T3） 10 kV保护水平 L-N/PE 1.2kVN-PE 2.3kV响应时间 65 ns产品尺寸 35×26×14 mm成品重量 25 g技术及工艺创新要点：■外壳采用阻燃性材料，产品采用灌封胶工艺，具有防火、防水、防尘特性，防护等级可达IP67。■产品具有全模保护功能。该产品的最大防护电涌电流冲击达10kA，能够耐受10kV的电涌电压的冲击。■产品体积小巧，尺寸35×26×14mm（ 不包含连接线）。■安装应用十分方便，自带L、N和PE连接线。■属于III级电源防雷器。■采用并联接线方式。■采用我司全新结构工艺制造，突破常规结构工艺。此工艺可将SPD的耐冲击能力提升，并且此工艺已申请专利。与国内外同类产品或同类技术的比较情况：1.超小体积、比国内外同类产品体积都要小：产品内部采用乔光自主研发的新型结构及新型装配工艺，此结构和装配工艺可将产品体积缩小到极致，节省客户灯具内的空间。2.产品通流量大：使用新型结构和新型装配工艺后，产品耐受冲击能力提示百分之十。 @font-face{ font-family:"Times New Roman"; }@font-face{ font-family:"宋体"; }@font-face{ font-family:"Calibri"; }p.MsoNormal{ mso-style-name:正文; mso-style-parent:""; margin:0pt; margin-bottom:.0001pt; mso-pagination:none; text-align:justify; text-justify:inter-ideograph; font-family:Calibri; font-size:10.5000pt; mso-font-kerning:1.0000pt; }p.MsoFooter{ mso-style-name:页脚; margin:0pt; margin-bottom:.0001pt; layout-grid-mode:char; mso-pagination:none; text-align:left; font-family:Calibri; font-size:9.0000pt; mso-font-kerning:1.0000pt; }p.MsoHeader{ mso-style-name:页眉; margin:0pt; margin-bottom:.0001pt; border-bottom:1.0000pt solid windowtext; mso-border-bottom-alt:0.7500pt solid windowtext; padding:0pt 0pt 1pt 0pt ; layout-grid-mode:char; mso-pagination:none; text-align:center; font-family:Calibri; font-size:9.0000pt; mso-font-kerning:1.0000pt; }span.msoIns{ mso-style-type:export-only; mso-style-name:""; text-decoration:underline; text-underline:single; color:blue; }span.msoDel{ mso-style-type:export-only; mso-style-name:""; text-decoration:line-through; color:red; }table.MsoNormalTable{ mso-style-name:普通表格; mso-style-parent:""; mso-style-noshow:yes; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-padding-alt:0.0000pt 5.4000pt 0.0000pt 5.4000pt; mso-para-margin:0pt; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-family:'Times New Roman'; font-size:10.0000pt; mso-ansi-language:#0400; mso-fareast-language:#0400; mso-bidi-language:#0400; } @page{mso-page-border-surround-header:no;mso-page-border-surround-footer:no;}@page Section0{ } div.Section0{page:Section0;}

FTR-N系列产品简介Zero Power Resistance at 25℃: 0.7 - 120 ΩMaximum Steady State Current at 25℃： 15AModel Size: 5 - 25 mm

FTR16 Series产品简介Radial leaded devicesIhold: 2 - 14AFlame retardant epoxy polymer insulating material meets UL94 V-0 requirement

5.0SMDJ Series产品简介Case: DO-214ABPower: 5000WReverse Stand-Off Voltage: 11 - 170VGlass passivated junctionExcellent clamping capabilityFast response time:typically less than 1.0ps

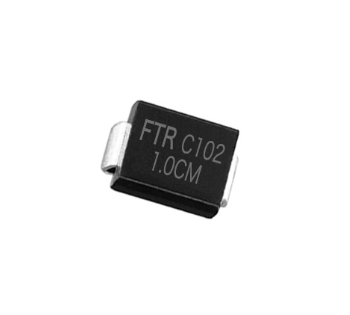

1.0SMBJ Series产品简介Case: DO-214AAPower: 1000WReverse Stand-Off Voltage: 5.0 - 200VGlass passivated junctionExcellent clamping capabilityFast response time:typically less than 1.0ps

压敏电阻（Metal Oxide Varistors）简称 MOV，以氧化锌为主体材料，采用行业尖端的涂铜技术工艺在高温下烧结而成的浪涌防护器件，以其优异的非线性伏安特性和较强的浪涌抑制能力广泛应用于电子电路中做过压防护；压敏电阻并联于电路中，电路正常工作时，压敏电阻呈现高阻态，当电网中出现瞬态高电压或感应电动势时，压敏电阻以 ns 级的响应速度将瞬态高压抑制到电路能承受的电压范围，使产品不受外界环境因素影响，主要应用于交直流电源、各种低频信号、控制电路、浪涌防护模组及相应防雷器产品上；压敏电阻从 18V 至 1800V，本体直径有φ 5、φ 7、φ 10、φ 14、φ 20、φ 25、φ 32、φ 40、φ 53 及 34*34MM方片等规格尺寸，也可根据客户实际需求提供符合设计需求的产品；压敏电阻产品通过 UL、VDE、CSA、CQC、TUV 等安规认证，符合 ROHS、REACH 等环保要求，满足 IEC61643-331及 SPD 相关标准；F eatures■ Fast responding to transient over-voltage■ Large absorbing transient energy capability■ Low clamping ratio and no follow-on current■ Meets MSL level 1, per J-STD-020■ Operating Temperature：-40℃ ~ +105℃-40℃ ~ +125℃■ Storage Temperature：-40℃ ~ +125℃■ Agency recognition: UL 1449 4th /cUL/CQCApplications■ Power supply, Telecommunication, Smart meter, or PLC protection■ Surge protection in consumer electronics■ Surge protection in industrial electronics■ Surge protection in electronic home appliances, gas and petroleum appliances■ Relay and electromagnetic valve surge absorption

压敏电阻（Metal Oxide Varistors）简称 MOV，以氧化锌为主体材料，采用行业尖端的涂铜技术工艺在高温下烧结而成的浪涌防护器件，以其优异的非线性伏安特性和较强的浪涌抑制能力广泛应用于电子电路中做过压防护；压敏电阻并联于电路中，电路正常工作时，压敏电阻呈现高阻态，当电网中出现瞬态高电压或感应电动势时，压敏电阻以 ns 级的响应速度将瞬态高压抑制到电路能承受的电压范围，使产品不受外界环境因素影响，主要应用于交直流电源、各种低频信号、控制电路、浪涌防护模组及相应防雷器产品上；压敏电阻从 18V 至 1800V，本体直径有φ 5、φ 7、φ 10、φ 14、φ 20、φ 25、φ 32、φ 40、φ 53 及 34*34MM方片等规格尺寸，也可根据客户实际需求提供符合设计需求的产品；压敏电阻产品通过 UL、VDE、CSA、CQC、TUV 等安规认证，符合 ROHS、REACH 等环保要求，满足 IEC61643-331及 SPD 相关标准；F eatures■ Fast responding to transient over-voltage■ Large absorbing transient energy capability■ Low clamping ratio and no follow-on current■ Meets MSL level 1, per J-STD-020■ Operating Temperature：-40℃ ~ +105℃-40℃ ~ +125℃■ Storage Temperature：-40℃ ~ +125℃■ Agency recognition: UL 1449 4th /cUL/TUV/VDE/CQCApplications■ Power supply, Telecommunication, Smart meter, or PLC protection■ Surge protection in consumer electronics■ Surge protection in industrial electronics■ Surge protection in electronic home appliances, gas and petroleum appliances■ Relay and electromagnetic valve surge absorption
