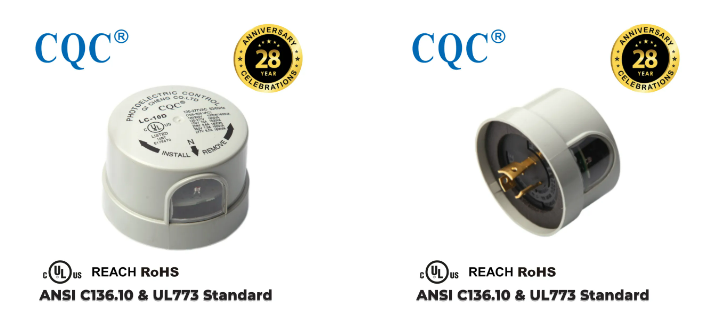

ANSI C136.10 and UL773 dusk to dawn photoelectric sensor for outdoor lighting LC-1D dusk sensor

●  Volts & Cover Color – 50/60Hz
        - Gray standard for 120VAC
        - Maroon standard for 240VAC
        - Blue standard for 120/240VAC (105-305VAC)
  ●  Turn-ON Light Level: 10-16 Lux
  ●  Turn ON/OFF Ratio: 1:1.5 to 4
  ●  Time Delay: 3-15 sec
  ●  Operating Temperature: -40℃ to +70℃
  ●  Relay: 30A
  ●  MOV Surge Protection: 90/190J/380J(10/1000us)
  ●  Energy Consumption: Less than 1Watt（120V<0.5W）
  ●  Electrical Life: >5000 cycles
  ●  Sensor Type: Silicon Photocell
  ●  Housing: UV stabilized PC
  ●  Failure Mode: Fail ON
  ●  Size: 80mm,74mm (suitable for North America market)

         ●  UL Listed. Reference No.: E178670
         ●  ANSI C136.10 & UL773 Standard

  ●   Rated Load:
