综合介绍或申报理由:

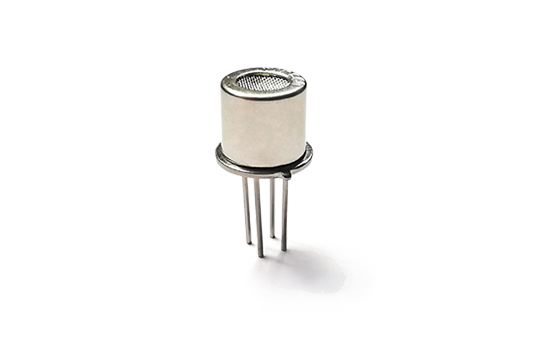

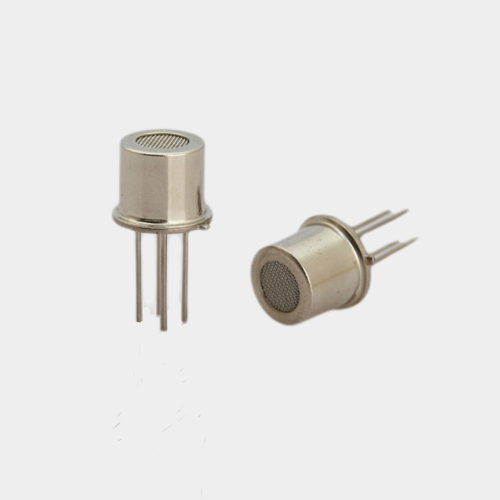

MP503型气体传感器是空气质量传感器。采用多层厚膜制造工艺,在微型Al2O3陶瓷基片上的两面分别形成加热器和金属氧化物半导体气敏层,用电极引线引出,经TO-5金属外壳封装而成。当环境空气中有被检测气体存在时空气质量传感器电导率发生变化,该气体的浓度越高,空气质量传感器的电导率就越高。采用简单的电路即可将这种电导率的变化转换为与气体浓度对应的输出信号。The MP503 gas sensor is an air quality sensor. Using a multi-layer thick film manufacturing process, a heater and a metal oxide semiconductor gas-sensitive layer are formed on both sides of a miniature Al2O3 ceramic substrate, which are led out by electrode leads and packaged by a TO-5 metal casing. When the detected gas exists in the ambient air, the conductivity of the air quality sensor changes. The higher the concentration of the gas, the higher the conductivity of the air quality sensor. A simple circuit can convert this change in conductivity into an output signal corresponding to the gas concentration.
项目缩略图:
相关项目图片:
主要技术参数:

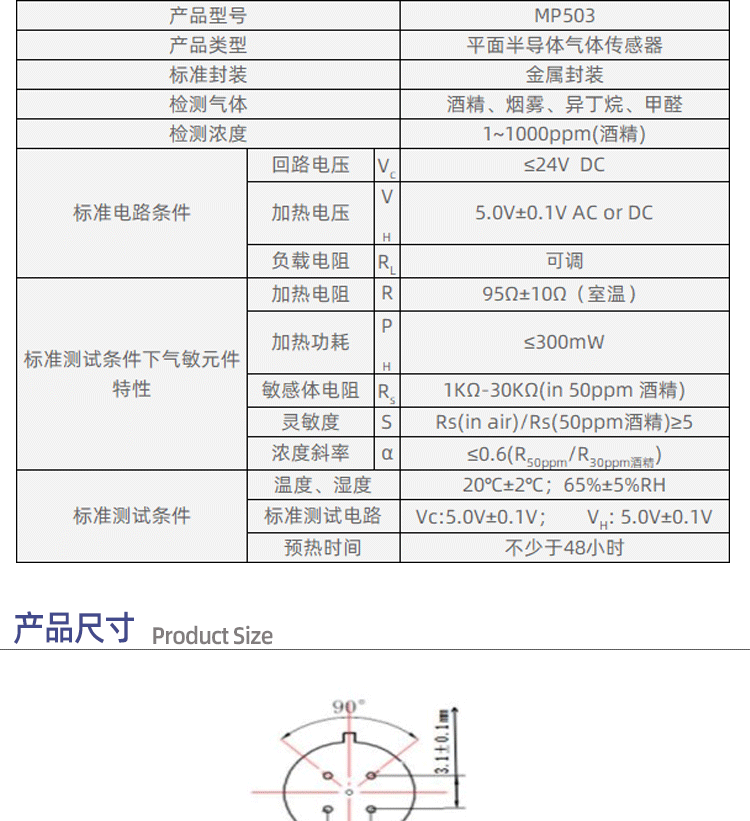

技术指标
产品型号 MP503
产品类型 平面半导体气体传感器
标准封装 金属封装
检测气体 酒精、烟雾、异丁烷、甲醛
检测浓度 1~1000ppm(酒精)
标准电路条件 回路电压 Vc ≤24V DC
加热电压 VH 5.0V±0.1V AC or DC
负载电阻 RL 可调
标准测试条件下气敏元件特性 加热电阻 RH 95Ω±10Ω(室温)
加热功耗 PH ≤300mW
敏感体电阻 Rs 1KΩ-30KΩ(in 50ppm 酒精)
灵敏度 S Rs(in air)/Rs(50ppm酒精)≥5
浓度斜率 α ≤0.6(R50ppm/R30ppm酒精)
标准测试条件 温度、湿度 20℃±2℃;65%±5%RH
标准测试电路 Vc:5.0V±0.1V; VH: 5.0V±0.1V
预热时间 不少于48小时
技术及工艺创新要点:
与国内外同类产品或同类技术的比较情况:
产品特点:对酒精、烟雾、异丁烷、甲醛灵敏度高;具有响应恢复快、低功耗、检测电路简单、稳定性好、寿命长等优点。
Product features: high sensitivity to alcohol, smoke, isobutane, and formaldehyde; it has the advantages of fast response recovery, low power consumption, simple detection circuit, good stability, and long life.
实际运用案例和用户评价意见:
主要应用:该气体传感器广泛应用于家庭环境及办公室有害气体检测、 自动排风装置、空气清新机等。
Main application: This gas sensor is widely used in home environment and office harmful gas detection, automatic exhaust device, air cleaner, etc.
获奖、专利情况:
申报单位介绍:

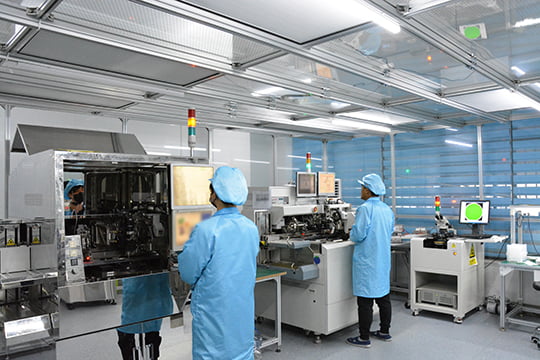

郑州炜盛电子科技有限公司成立于2003年,是一家集研发、生产、销售及传感器应用方案服务为一体的高新技术企业,建筑面积达30000多平方米。 炜盛科技自成立以来,产品紧跟时代步伐,已从过去的生产单一品种发展到现在的包括红外气体传感器、电化学气体传感器、平面半导体气体传感器、载体催化元件、半导体气体传感器、PM2.5传感器、流量传感器、热释电传感器、热电堆传感器、火焰传感器、热传导气体传感器、固体电解质气体传感器、热线型气体传感器、压力传感器、水质传感器、湿度传感器、MEMS传感器等十七大系列,200多个品种,共可用于检测气体300余种。凭借国际先进的生产工艺装备,以开拓创新追求的精神和炜盛团队的持续努力,平均24小时就有16万支气体传感器产出,并服务于全球各地的安全、环保、健康领域。
Zhengzhou Weisheng Electronic Technology Co., Ltd. was established in 2003. It is a high-tech enterprise integrating R&D, production, sales and sensor application solutions, with a construction area of more than 30,000 square meters. Since its establishment, Weisheng Technology has kept up with the pace of the times, and has developed from a single product variety in the past to the present, including infrared gas sensors, electrochemical gas sensors, planar semiconductor gas sensors, carrier catalytic elements, semiconductor gas sensors, PM2.5 Sensors, flow sensors, pyroelectric sensors, thermopile sensors, flame sensors, heat conduction gas sensors, solid electrolyte gas sensors, hot-wire gas sensors, pressure sensors, water quality sensors, humidity sensors, MEMS sensors, etc. 17 series, more than 200 It can be used to detect more than 300 kinds of gases in total. With internationally advanced production technology and equipment, the spirit of pioneering and innovative pursuit and the continuous efforts of the Weisheng team, an average of 160,000 gas sensors are produced in 24 hours, and they serve the safety, environmental protection and health fields around the world.
