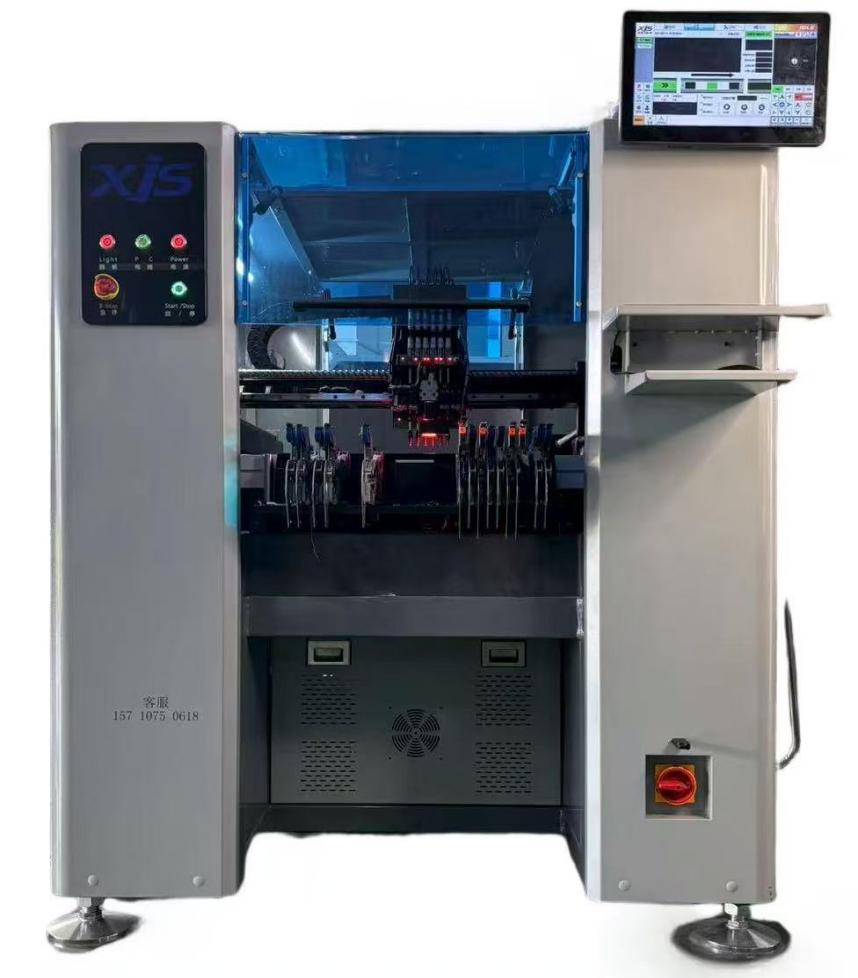

一、产品图片Product picture二、产品介绍Product introductionXJS-T16A是一款高速全自动在线式贴片机，全新的硬件和软件系统，全面解决了对贴装高速度和精度的要求，核心部件采购原装进口，精度更高，稳定性更好，提高了生产效率和良品率，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。XJS-T16Ais a high-speed automatic on-line Mounter with updated hardware and software system, which comprehensively solves the requirements for high speed and precision of mounting. The core components are imported with original packaging, which has higher precision and better stability, improves production efficiency and yield, and greatly reduces customer costs. At present, it has been widely used in customers’factories in Shenzhen, Zhongshan, Jiangsu and Zhejiang三、功能特点Functional features1、全自动在线式设计,可放30种飞达，配套高清相机2、X轴、Y轴都采用高精度的进口精密丝杆，提高设备运行精度及传运速度；3、MARK视觉校正系统，对PCB板位置拍照识别，确保贴片精度。4、贴片头Z轴采用16组进口花键，高效完成取料、放料；5、功能强大：配置不同的喂料器，可完成多种产品的贴装要求。6、操作简单：中英文图形操作界面，易于操作。编程简洁,可储存编辑好文件,随意调用；7、维护方便：设计简洁，易于维护。更换配件成本低,维护成本低。8、整机软件、线路、硬件结构都由本公司自主研发，具有自主知识产权。1.?Fully Automatic Online Design, accommodates 30 feeders, equipped with HD camera.?2.?Both X-axis and Y-axis utilizeimported high-precisionscrewrods, enhancing operational accuracy and transmission speed.?3.?MARK vision correction system captures and recognizes PCB board positioning imagery to ensure placement accuracy.4.Z-axisof ?the pick-and-place headsadopt16 sets of imported spline shafts for efficient component pickup and placement.?5.?Powerful functionality: Configured with different feeders to meet the placement requirements of diverseproducts.?6.?Simple operation: ChineseEnglishgraphical user interface for ease of use. Programming is concise; edited files can be stored and recalled at will.?7.?Easy maintenance: Streamlined design simplifies upkeep. Low cost for replacing parts and maintenance.?8.?The entire machines software, circuitry, and hardware structure are independently developed by XJS, possessing independent intellectual property rights.四、应用范围Scope of application各种LED灯具、LED电源驱动等。All kinds LED lamps, LED power drives, circuit boards of small household appliances, digital products, etc技术参数Specification设备型号ModelXJS-T16A最大电路板面积Maximum PCB Size450(X)╳400(Y)╳10(Z)mmZ轴最大移动范围Maximum travelrange of Z axis10mm最大贴片速度Maximum placementspeed65000CPH平均贴片速度Average placement speed30000-65000CPH定位精度positioning accuracy0.05mm吸嘴缓冲范围Buffer range of nozzle4.0电源Power source220V, 50Hz控制方式control methodPC电脑 PC computer压缩空气 Compressed airpressure0.65-0.75Mpa平均功率 Average powerconsumption3.5KW喂料器 Feeder电动飞达ElectricFeeder适用范围Scope of application0603以上阻容件及各种1515 2121 2835、3528、3014、4014、5050、5630、5730、7070等LED芯片The resistor and capacitor above 0603 and various LED chips such as 1515 2121 2835, 3528, 3014, 4014, 5050, 5630, 5730 and 7070 are 可放喂料器数量Feeder capacity30支30feeders available 使用电机 Motor type进口伺服电机Imported servo motor贴装头 Placement heads quantity 16头 16heads运动驱动系统 Motion drive systemＸＹ轴直线电机+Ｚ轴交流伺服电机Linear motor for X Y axis, ＡＣservo motor for Z axis元件角度 Component angle0-360°任意角度，运动中同步旋转0-360° free angle, synchronous rotation in motionX/Y运行模式 X / Yoperation mode新一代直线插补联动自主开发软件New-generation linear interpolation software (self-developed)气源 Airsource进口真空泵 Imported Vacuum pump操作系统 Operating system鑫久盛自主研发中英文结合XJS self-developed bilingual system (Chinese-English)编程方式 Programming mode点对点教习编程，视觉编程，可优化+座标导入Point-to-point teaching, vision programming, optimization + coordinate import产品重量 Product weight2200KG外观尺寸 DimensionL1350mm *W1550mm *H1420mm

产品介绍Product presentation 　XJS-H12A贴片机。全新升级产能、硬件和软件系统，全面解决小家电产品对贴装高度和精度的要求，解决掉料、卡料，速度，精度（热补偿）等问题，提高了生产效率和良品率，并且同时兼容托盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。For XJS-H12A placement machine, With upgraded capacity, hardware and software systems, it comprehensively meets SMD height/accuracy requirements for small appliances, solves material dropping/jamming issues, improves speed and accuracy (with thermal compensation), enhances production efficiency/yield rate, supports both tray and feeder loading to reduce costs, and has been widely used in factories in Shenzhen, Zhongshan, Jiangsu, Zhejiangand overseas marketetc.功能特点与应用范围Functional features and application scope1、全自动在线式设计Fully automatic in-line design2、进口核心组件，速度快、精度高Imported core components with high speed/accuracy3、各种PCBA产品、电源驱动等非标产品For various PCBA products, power drivers and non-standard products技术参数Parameter 设备型号ModelXJS-H12A最大电路板面Maximum PCB size500(X)╳350(Y)╳20(Z)mmZ轴最大移动范围Maximum travelrange of Z axis20mm贴装元件高度Componentmountingheight12mm最大贴片速度Maximum placement speed45000CPHPCB板厚度PCB thickness0.1-3MM平均贴片速度Average placement speed15000-45000CPH(群取分贴、分取分贴速度有所区别15000-45000CPH(Speed varies by pickup methods)定位精度Positioningaccuracy+-0.025mm相机数量Camera quantity3套（MARK相机、高精度定位相机、飞行相机扫描）3 sets (MARK, positioning, flying vision)电源Power source220V, 50Hz控制方式Control methodPC电脑PC computer压缩空气Compressed airpressure0.65-0.75Mpa平均功率Average powerconsumption3.0KW喂料器Feeder电动飞达+托盘上料Electric feeder + tray loading适用范围Application scope0402,0603,二极管，三极管，SOT,引脚0.3MM,QFP,BGA等0402，0603/diodes,transistors,SOT,pins0.3MM,QFP,BGA,etc.喂料器站位数Feeder capacity64位（加托盘48位）64 stations (48 with trays)运动驱动系统Motion drive systemＸＹ轴直线电机+Ｚ轴交流伺服电机Linear motor for X Y axis, ＡＣ servo motor for Z axis贴装头Placement heads quantity12头(自动识别吸嘴高度)12-head (automatically recognize nozzle height)控制系统Control system自主研发具有热补偿系统Self-developed with thermal compensation元件角度Component angle0-360°任意角度，独立头同步旋转0-360° with independent head synchronous rotation气源Air source双真空泵供负压Dual vacuum pumps操作系统Operating systemWindows7编程方式Programming method点对点教习编程，视觉编程，座标导入Point-to-point teaching, vision programming, coordinate import产品重量+外观尺寸Weight　　Dimensions2600KG　　1450mm1550mm1420mm

产品介绍Product presentation　XJS-H10A贴片机。全新升级产能、硬件和软件系统，全面解决小家电产品对贴装高度和精度的要求，解决掉料、卡料，速度，精度（热补偿）等问题，提高了生产效率和良品率，并且同时兼容托盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。For XJS-H10A placement machine, With upgraded capacity, hardware and software systems, it comprehensively meets SMD height/accuracy requirements for small appliances, solves material dropping/jamming issues, improves speed and accuracy (with thermal compensation), enhances production efficiency/yield rate, supports both tray and feeder loading to reduce costs, and has been widely used in factories in Shenzhen, Zhongshan, Jiangsu, Zhejiangand overseas marketetc.功能特点与应用范围Functional features and application scope1、全自动在线式设计Fully automatic in-line design2、进口核心组件，速度快、精度高Imported core components with high speed/accuracy3、各种PCBA产品、电源驱动等非标产品For various PCBA products, power drivers and non-standard products技术参数Parameter 设备型号ModelXJS-H10A最大电路板面积Maximum PCB size500(X)╳350(Y)╳20(Z)mmZ轴最大移动范围Maximum travelrange of Z axis20mm贴装元件高度Maximum travelrange of Z axis12mm最大贴片速度Maximum placement speed35000CPHPCB板厚度PCB thickness0.1-5MM平均贴片速度Average placement speed15000-35000CPH(群取分贴、分取分贴速度有所区别15000-35000CPH(Speed varies by pickup methods)定位精度Positioningaccuracy0.02mm相机数量Camera quantity3套（MARK相机、高精度定位相机、飞行相机扫描）3 sets (MARK, positioning, flying vision)电源Power source220V, 50Hz控制方式Control methodPC电脑PC computer压缩空气Compressed airpressure0.65-0.75Mpa平均功率Average powerconsumption3.0KW喂料器Feeder电动飞达+托盘上料Electric feeder + tray loading适用范围Application scope0402,0603,二极管，三极管，SOT,引脚0.3MM,QFP,BGA等0402,0603/diodes,transistors,SOT,pins0.3MM,QFP,BGA,etc.喂料器站位数Feeder capacity64位（加托盘48位）64 stations (48 with trays)伺服电机Servo motorsquantity 13套高速交流伺服电机13 sets high-speed AC servo motors贴装头Placement heads quantity 10头(自动识别吸嘴高度)10-head automatically recognize nozzle height)控制系统Control system自主研发具有热补偿系统Self-developed with thermal compensation元件角度Component angle0-360°任意角度，独立头同步旋转0-360° with independent head synchronous rotation气源Air source双真空泵供负压Dual vacuum pumps操作系统Operating systemWindows7编程方式Programming method点对点教习编程，视觉编程，座标导入/Point-to-point teaching, vision programming, coordinate import产品重量+外观尺寸Weight　Dimensions2300KG　　1400mm1550mm1420mm

产品介绍Product presentation 　XJS-H6A贴片机。全新升级产能、硬件和软件系统，全面解决小家电产品对贴装高度和精度的要求，解决掉料、卡料，速度，精度（热补偿）等问题，提高了生产效率和良品率，并且同时兼容托盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。For XJS-H6A placement machine, With upgraded capacity, hardware and software systems, it comprehensively meets SMD height/accuracy requirements for small appliances, solves material dropping/jamming issues, improves speed and accuracy (with thermal compensation), enhances production efficiency/yield rate, supports both tray and feeder loading to reduce costs, and has been widely used in factories in Shenzhen, Zhongshan, Jiangsu, Zhejiangand overseas marketetc.功能特点与应用范围Functional features and application scope1、全自动在线式设计Fully automatic in-line design2、进口核心组件，速度快、精度高Imported core components with high speed/accuracy3、各种PCBA产品、电源驱动等非标产品For various PCBA products, power drivers and non-standard products技术参数Parameter 设备型号ModelXJS-H6A最大电路板面积Maximum PCB size500(X)╳350(Y)╳20(Z)mmZ轴最大移动范围Maximum travelrange of Z axis20mm贴装元件高度Component mounting height13mm最大贴片速度Maximum placement speed25000CPHPCB板厚度PCB thickness0.1-3MM平均贴片速度Average placement speed10000-25000CPH(群取分贴、分取分贴速度有所区别10000-25000CPH(Speed varies by pickup methods)定位精度Positioningaccuracy+-0.025mm相机数量Camera quantity3套（MARK相机、高精度定位相机、飞行相机扫描）3 sets (MARK, positioning, flying vision)电源　Power source220V, 50Hz控制方式Control methodPC电脑　PC computer压缩空气Compressed air pressure0.65-0.75Mpa平均功率Average power consumption 2KW喂料器Feeder电动飞达+托盘上料　Electric feeder + tray loading适用范围Application scope0402,0603,二极管，三极管，SOT,引脚0.3MM,QFP,BGA等0402, 0603, diodes,transistors,SOT, pins0.3MM,QFP,BGA,etc.喂料器站位数Feeder capacity56位（加托盘37位）56 stations (37 with trays)伺服电机Servo motors8套高速交流伺服电机8sets high-speed AC servo motors贴装头Placement heads quantity6头(自动识别吸嘴高度)6-head (automatically recognize nozzle height )控制系统Control system自主研发具有热补偿系统Self-developed with thermal compensation元件角度Component angle0-360°任意角度，独立头同步旋转0-360° with independent head synchronous rotation气源Air source双真空泵供负压Dual vacuum pumps操作系统Operating systemWindows7编程方式Programming method点对点教习编程，视觉编程，座标导入Point-to-point teaching, vision programming, coordinate import产品重量+外观尺寸Weight　Dimensions　Weight2000KG　　1400mm1550mm1420mm

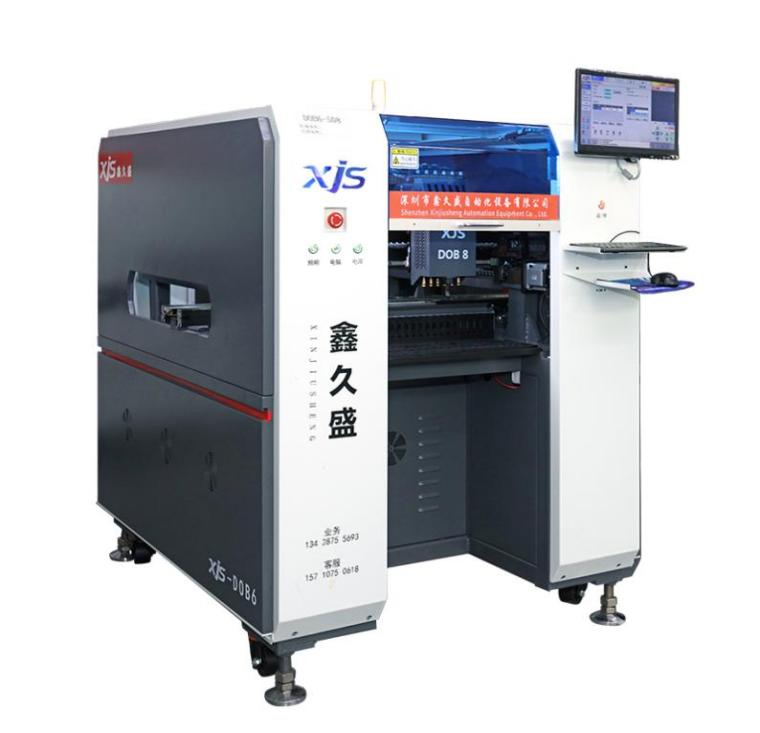

产品介绍Product ntroduction　XJS-DOB12Ｈ是DOB8升级款DOB专用贴片机。全新升级产能、硬件和软件系统，全面解决DOB产品对贴装高度和精度的要求，解决掉料、卡料，速度等问题，提高了生产效率和良品率，并且同时兼容震动盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。　　XJS-DOB12Ｈis an upgraded DOB special placement machine for DOB8.They comprehensively solve the requirements of DOB products for mounting height and accuracy, solve the problems of material dropping, jamming and speed, improve the production efficiency and yield, and are compatible with vibrating tray loading and Feederloading at the same time, greatly reducing the cost of customers, At present, it has been widely used in customer factories in Shenzhen, Zhongshan, Jiangsu and Zhejiang.功能特点Functional characteristics　　1、全自动在线式设计，DOB生产1+1方案完美组合.　　2、进口核心组件，速度快、精度高.　　3、全新适配机械系统，贴电解电容、电感等不易掉料　　4、特别定制软件系统，贴电解电容、电感、非标元件等编程更简单5、可同时适用拖盘上料、震动盘和飞达上料，M脚电容，T形电解、卧式电容、电感等等均可完美贴装。　　电容、电感等等均可完美贴装。1. Fully automatic online design, DOB production 1 + 1 scheme perfect combination2. Imported core components, high speed and high precision3. The new adaptive mechanical systemsolved the issues of materials dropping for mounting electrolytic capacitors, inductoretc.4. self-developed software systemmake programming more simple for mounting electrolytic capacitors, inductors, non-standard components, etc.,5. It can also be compatible for tray loading, vibrating trayand Feederloading. It can perfectly mount M-pin capacitor, T-shaped electrolysis, horizontal capacitor, inductance and so on应用范围Application scope　　各种LED灯DOB产品、高脚异形件LED灯具、DOB电源驱动等非标产品。Various LED lamps, DOB products, high foot shaped LED lamps, DOB power drive and other non-standard products.技术参数Technical Parameters?设备型号ModelXJS-DOB12Ｈ?最大电路板面积Maximum PCB size550(X)╳400(Y)╳40(Z)mm(1.2MM分两次贴装)550(X)╳400(Y)╳40(Z)mm(1.2MM mounted in two steps)?Z轴最大移动范围Maximum travel range of Z-axis40mm?贴装元件高度Component mounting height18mm?最大贴片速度Maximum placement speed45000CPH?平均贴片速度Average placement speed15000-45000CPH(各种DOB方案速度有所区别）15000-45000CPH(Speed varies by DOB solution)?定位精度Positioningaccuracy0.1mm?吸嘴缓冲范围Buffer range of nozzle4.0?电源Power source220V, 50Hz?控制方式Control methodPC电脑Industrial PC?压缩空气Compressed air pressure0.65-0.75Mpa?平均功率Average powerconsumption3000W?喂料器Feeder电动飞达+振动盘+托盘上料Electric feeder + vibratory tray + tray loading?适用范围Application scope各种DOB照明方案，DOB驱动Various DOB lighting solutions, DOB drivers?可放喂料器数量Feeder capacity36个36feeders运动驱动系统 Motion drive systemＸＹ轴直线电机+Ｚ轴交流伺服电机Linear motor for X Y axis, ＡＣ servo motor for Z axis?贴装头Placement heads quantity 12头12--head12?元件角度Component angle0-360°任意角度，运动中同步旋转0-360° free angle, synchronous rotation in motion?X/Y运行模式?X/Y operation mode新一代直线插补联动自主开发软件New-generation linear interpolation software (self-developed)?气源?Air source真空泵或真空发生器Vacuum pump?操作系统?Operating system鑫久盛自主研发中英文结合XJS self-developed bilingual system (Chinese-English)?编程方式?Programming method点对点教习编程，视觉编程，可优化+座标导入Point-to-point teaching, vision programming, optimization + coordinate import?产品重量+?外观尺寸Weight　Dimensions2000KG　　1400mm *1550mm *1420mm

产品介绍Product introduction　XJS-DOB8T(DOB专用款)是针对DOB产品特性，全新升级了硬件和软件系统，全面解决DOB产品对贴装高度和精度的要求，解决掉料、卡料，速度等问题，提高了生产效率和良品率，并且同时兼容震动盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。　XJS-DOB 8t(DOB) is a fully upgraded hardware and software system designed for DOB product, It comprehensively addresses DOB products requirements for mountingheight and precision, resolves issues like material dropping, jamming, fragility, and speed, improves production efficiency and yield rate, and supports both vibratory tray feeding and feeder feeding, significantly reducing customer costs. Currently widely used in factories in Shenzhen, Zhongshan, Jiangsu, Zhejiang, etc.功能特点Functional characteristics　　1、全自动在线式设计，DOB生产1+1方案完美组合.　　2、进口核心组件，速度快、精度高.　　3、全新适配机械系统，贴电解电容、电感等不易掉料　　4、特别定制软件系统，贴电解电容、电感、非标元件等编程更简单5、可同时适用拖盘上料、震动盘和飞达上料，M脚电容，T形电解、卧式电容、电感等等均可完美贴装。1. Fully automatic online design, DOB production 1 + 1 scheme perfect combination2. Imported core components, high speed and high precision3. The new adaptive mechanical systemsolved the issues of materials dropping for mounting electrolytic capacitors, inductoretc.4. self-developed software systemmake programming more simple for mounting electrolytic capacitors, inductors, non-standard components, etc.,5. It can also be compatible for tray loading, vibrating trayand Feederloading. It can perfectly mount M-pin capacitor, T-shaped electrolysis, horizontal capacitor, inductance and so on应用范围Application scope　　各种LED灯DOB产品、高脚异形件LED灯具、DOB电源驱动等非标产品。Various LED lamps, DOB products, high foot shaped LED lamps, DOB power driverand other non-standard products.技术参数Technical Parameters?设备型号?ModelXJS-DOB8T（飞拍相机）XJS-DOB8T (Flying camera)?最大电路板面积?Maximum PCB size450(X)╳400(Y)mm (分段贴1000(X)╳400(Y)mm)450(X)╳400(Y)mm (segmented mounting 1000(X)╳400(Y)mm)?Z轴最大移动范围?Maximum travel range of Z-axis40mm?贴装元件高度?Component mounting height18mm?最大贴片速度?Maximum placement speed25000CPH?平均贴片速度?Average placement speed10000-25000CPH(各种DOB方案速度有所区别)10000-25000CPH (varies by DOB solutions)?定位精度?Positioningaccuracy±0.05MM?吸嘴缓冲范围?Buffer range of nozzle4.0?电源Power source220V, 50Hz?控制方式?Control method工业电脑+运动卡Industrial PC + motion card?压缩空气?Compressed air pressure0.65-0.75Mpa?平均功率Average powerconsumption2000W?喂料器?Feeder电动飞达+振动盘+托盘上料Electric feeder + vibratory tray + tray loading?适用范围?Application scope各种DOB照明方案，DOB驱动Various DOB lighting solutions, DOB drivers?可放喂料器数量?Feeder capacity24个24feeders?使用电机?Motor type交流伺服电机AC servo motor?贴装头Placement head quantity 8头8-head?元件角度?Component angle0-360°任意角度，运动中同步旋转0-360° free angle, synchronous rotation in motion?X/Y运行模式?X/Y operation mode新一代直线插补联动自主开发软件New-generation linear interpolation software (self-developed)?气源?Air source真空泵或真空发生器Vacuum pump?操作系统?Operating system鑫久盛自主研发中英文结合XJS self-developed bilingual system (Chinese-English)?编程方式?Programming method点对点教习编程，视觉编程，可优化+座标导入Point-to-point teaching, vision programming, optimization + coordinate import?产品重量+?外观尺寸Weight　　Dimensions1500KG　1300mm *1450mm *1420mm

全自动BC片专用贴合机XJS-BC6A（高速电池片专用款）　　Full automatic SMT machine XJS-BC6ASpeciallyDesignedforBCcells产品介绍Product introduction　XJS-BC6A(BC电池片专用款)是针对BC电池片产品特性，全新升级了硬件和软件系统，全面解决BC电池片产品对贴装高度和精度的要求，解决掉料、卡料,易碎，速度等问题，提高了生产效率和良品率，并且同时兼容震动盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。XJS-BC6A (Special Model for BC Cells) is a fully upgraded hardware and software system designed for BC cell characteristics. It comprehensively addresses requirements for mounting height and precision, resolves issues like material dropping, jamming, fragility, and speed, improves production efficiency and yield rate, and supports both vibratory tray feeding and feeder feeding, significantly reducing customer costs. Currently widely used in factories in Shenzhen, Zhongshan, Jiangsu, Zhejiang, etc.功能特点Functional characteristics1、全自动在线式设计，整线全自动完美组合.2、进口核心组件，速度快、精度高.3、特别定制软件系统，贴各种非标BC电池片等编程更简单1.Fully automatic in-line design, seamlessly integrated with automated　production lines.2.Imported core components ensure high speed and precision.3.Customized software system simplifies programming for non-standard BC cells.　　应用范围:　各种规格如(长:32-82MM,宽:5-30MM)各种BC电池等非标产品。?Application Scope:? Various specifications (e.g., Length: 32-82mm, Width: 5-30mm) and non-standard BC battery products.技术参数Technical Parameters?设备型号?ModelXJS-BC6A(6组相机) XJS-BC6A (6-camera set)?最大电路板面积?Maximum PCB size400(X)╳350(Y)mm?Z轴最大移动范围?Maximum travel range of Z-axis15mm?贴装元件高度?Component mounting height5mm?最大贴片速度?Maximum placement speed12000CPH?平均贴片速度?Average placement speed5000-12000CPH (varies by specification)?定位精度?Positioningaccuracy±0.05mm?吸嘴缓冲范围?Buffer range of nozzle4.0mm?电源?Power source220V, 50Hz?控制方式?Control method工业电脑+运动卡 Industrial PC + Motion Card?压缩空气?Compressed air pressure0.65-0.75Mpa?平均功率?Average powerconsumption2000W?喂料器?Feeder专用供料器(专利产品) Dedicated Feeder (Patented)?适用范围?Application scope长:32-82MM,宽:5-30MM Length:32-82mm, Width:5-30mm?可放喂料器数量?Feeder capacity6盒(每盒500片) 6 Boxes (500pcs per box)?使用电机Motor type交流伺服电机 AC Servo Motor?贴装头Placement head quantity 6头 6 Heads?元件角度?Component angle0-360°任意角度，运动中同步旋转 0-360° free rotation, synchronized during motion?X/Y运行模式?X/Y operation mode新一代直线插补联动自主开发软件 New-gen linear interpolation software (self-developed)?气源?Air source真空泵 +真空发生器Vacuum Pump?操作系统?Operating system鑫久盛自主研发中英文结合 XJS Self-developed (Chinese English)?编程方式?Programming method点对点教习编程，视觉编程，可优化+座标导入 Point-to-point teaching, vision programming, optimization + coordinate import?产品重量+?外观尺寸?Weight　　Dimensions1500KG　　1300mm *1450mm *1420mm

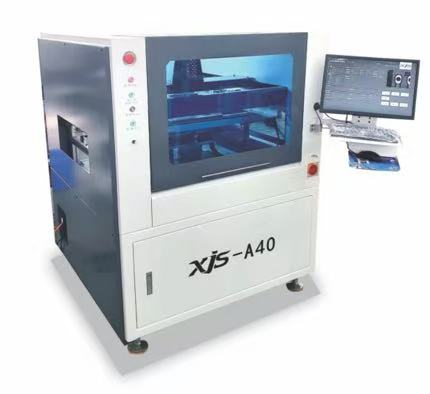

全自动印刷机 Automatic printing machine一、产品介绍Product introduction一款针对小家电及LED行业开发的全自动视觉印刷机，高性价比，全新的硬件和软件系统，全面解决了市场上简易全自动印刷机的不稳定精度差的问题,核心部件采购原装进口，精度更高，稳定性更好，提高了生产效率和良品率，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。It is a full automatic visual solder paste printer developed for LED industryand home appliance, with high cost performance and self-developed hardware and software system, comprehensively solves the problem of instability and poor accuracy of simple full-automatic printers in the market. The core components are imported with original packaging, which has higher accuracy and better stability, improves production efficiency and yield, and greatly reduces customer costs. At present, it is in Shenzhen, Zhongshan, Jiangsu Zhejiang has been widely used in customer factories.三、功能特点Functional features1、全自动在线式设计，uvw三轴校正2、所有轴都采用高精度的进口精密丝杆，提高设备运行精度及传运速度；3、MARK视觉校正系统，对PCB板位置拍照识别，确保贴片精度。4、操作简单：中英文图形操作界面，易于操作。编程简洁,可储存编辑好文件,随意调用；5、维护方便：设计简洁，易于维护。更换配件成本低,维护成本低。6、整机软件、线路、硬件结构都由本公司自主研发，具有自主知识产权。1. Automatic on-line design, UVW three-axis correction2. All shafts adopt importedhigh-precision screw rods to improve the operation accuracy and transmission speed of the equipment;3. Mark visual correction system is used to take photos of PCB position to ensure patch accuracy.4. Simple operation: ChineseEnglishgraphical operation interface, easy to operate. The programming is simple, which can store and edit files and call them at will;5. Easy maintenance: simple design and easy maintenance. The cost of replacing parts andmaintenance is low.6. The software, circuit and hardware structure of the whole machine are independently developed byXJSwith independent intellectual property rights.四、应用范围Applications scope各种LED产品、LED电源驱动、小家电电路板、数码产品等Various LED products, LED power drivers, small homeappliance circuit boards, digital products, etc五、技术参数Specification最大板尺寸Maximum PCB size左右刷500mm(X)×370mm(Y)前后刷400mm(X)×370mm(Y)L: 500mm(X)×370mm(Y) W:400mm(X)×370mm(Y)最小板尺寸Minimum PCBsize80mm(X)×50mm(Y)PCB厚度PCB thickness0.8-6mm翘曲量Warpage对角线1%Max.PCB Diagonal line 1%最大板重量Maximum board weight12kg最大印刷速度Maximum printing speed20秒20 seconds平均印刷速度Average printing speed15-20秒15-20 seconds板边缘间隙Board margin gap构型至3.5mmConfiguration to 3.5mm最大底部间隙Maximumbottomgap10mm传送速度 Transfer speed1200mm/秒（Max） 1200mm/s(MAX)距地面的传送高度Transfer height fromthe ground900±40mm传送轨道方向Transfer orbit direction左-右、右-左、Left-Right,Right-left传输方式Transfer mode轨道传输电源Power source220V, 50Hz控制方式Control modePC电脑压缩空气Compressed airpressure0.65-0.75Mpa功率要求Power consumptionAC220V±10%，50/60HZ,15A板支撑方法Support method磁性顶针,等高块,专用的工件夹具,(选项)Magneticthimble,equal high block,special tool fixture(optional)印刷头Printing headcontrol method电机控制Servo motor control模板框架尺寸Template frame size850mm×600mm刮刀类型Scraper type钢刮刀/胶刮刀（角度45°/55°/60°按印刷工艺配选择）steel scraper/Glue scraper(angle 45°/55°/60°matching accordingto the printing process)刮刀长度Scraper length220mm~520mm刮刀片厚度Scraper thickness0.25mm (Diamond-like carbon Coating)换线时间Product Changehandle time少于10mins＜10mins印刷模式Printing mode单或双刮刀印刷 Single or double scraper printing平台调整范围Platform adjustment rangeX±10.0,Y：±10.0mm,θ：±2.0°.操作系统The operating systemWindows 7机器重量 Machine weight约1000Kg about1000kg外观尺寸 External dimensionL(2455mm)×W(1400mm)×H(1520mm)不含三色灯，显示器和键盘（Without lights，monitor and keyboard）
